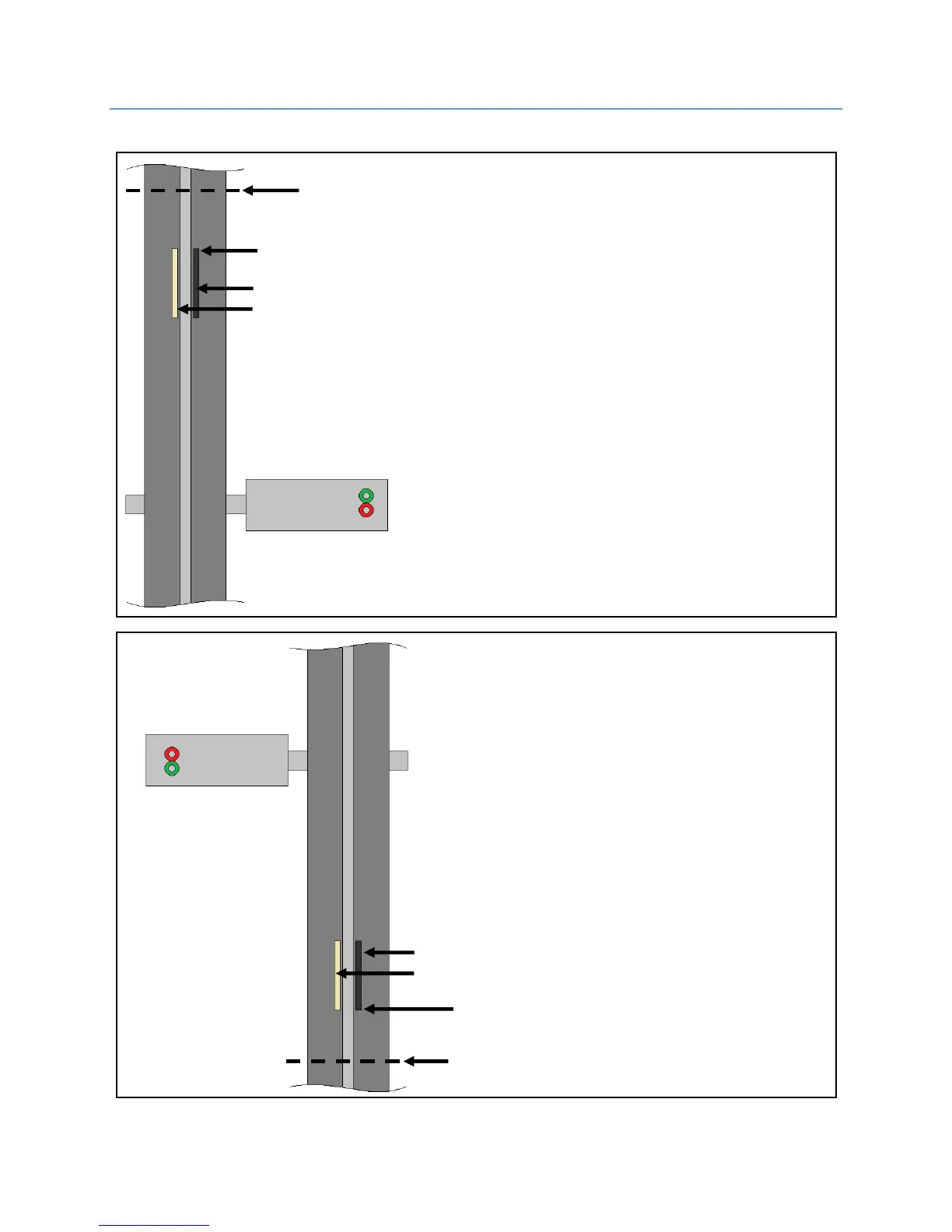

FINAL SWITCH PLACEMENT – RAIL
Double stacked Door Zone Magnet (DZ1) Black Cigar Sensor
Double stacked Door Zone Magnet (DZ2) Black Cigar Sensor
Bottom
Terminal
Landing
Bottom Normal Limit (NL) -
[Activated at DZ magnets edge]
Top
Terminal
Landing
Bottom Final Limit Switch (BFL) –
Min 3” travel from Normal Limit
Double stacked Door Zone Magnet - (DZ1) Black Cigar Sensor
Double stacked Door Zone Magnet - (DZ2) Black Cigar Sensor
Top Normal Limit (NL) - [Activated at DZ magnets edge]
Top Final Limit Switch (TFL) - Min 3” travel from Normal Limit
