REYNOLDS & REYNOLDS BATTERY LOWERING DEVICE –
“BLD”
The Reynolds & Reynolds RB2-120 (120vac) and the RB2-240 (240vac) is the battery
lowering device Smartrise uses for both their Hydraulic and Traction controllers.
When the controller cabinet arrives, the BLD will have 3 jumpers installed to
operate the controller without the BLD being activated.
1. The jumpers between PWR3 & PWR4 and PWR5 & PWR6 are in place to
bypass the power at the BLD. When these jumpers are removed and the
BLD wiring is properly connected the batteries will start to charge.
2. The jumper between T-CTRL6 & T-CTRL8 is to bypass the Battery Lowering
input on the controller. It will need to be removed for the controller to go
into Battery Lowering operation.
CAUTION – You must remove the bypass jumpers
between the input and output lines (PWR3-PWR4 &
PWR5-PWR6) BEFORE attaching the wires and turning
on the BLD. Otherwise, damage could occur to the
input/output terminals.
Installation
When the controller arrives the BLD will not have its control wires connected.
This is to prevent the batteries from discharging fully during shipping. The
technician must plug these wires in before the BLD is fully functional.
** (SEE CAUTION NOTE ABOVE) **

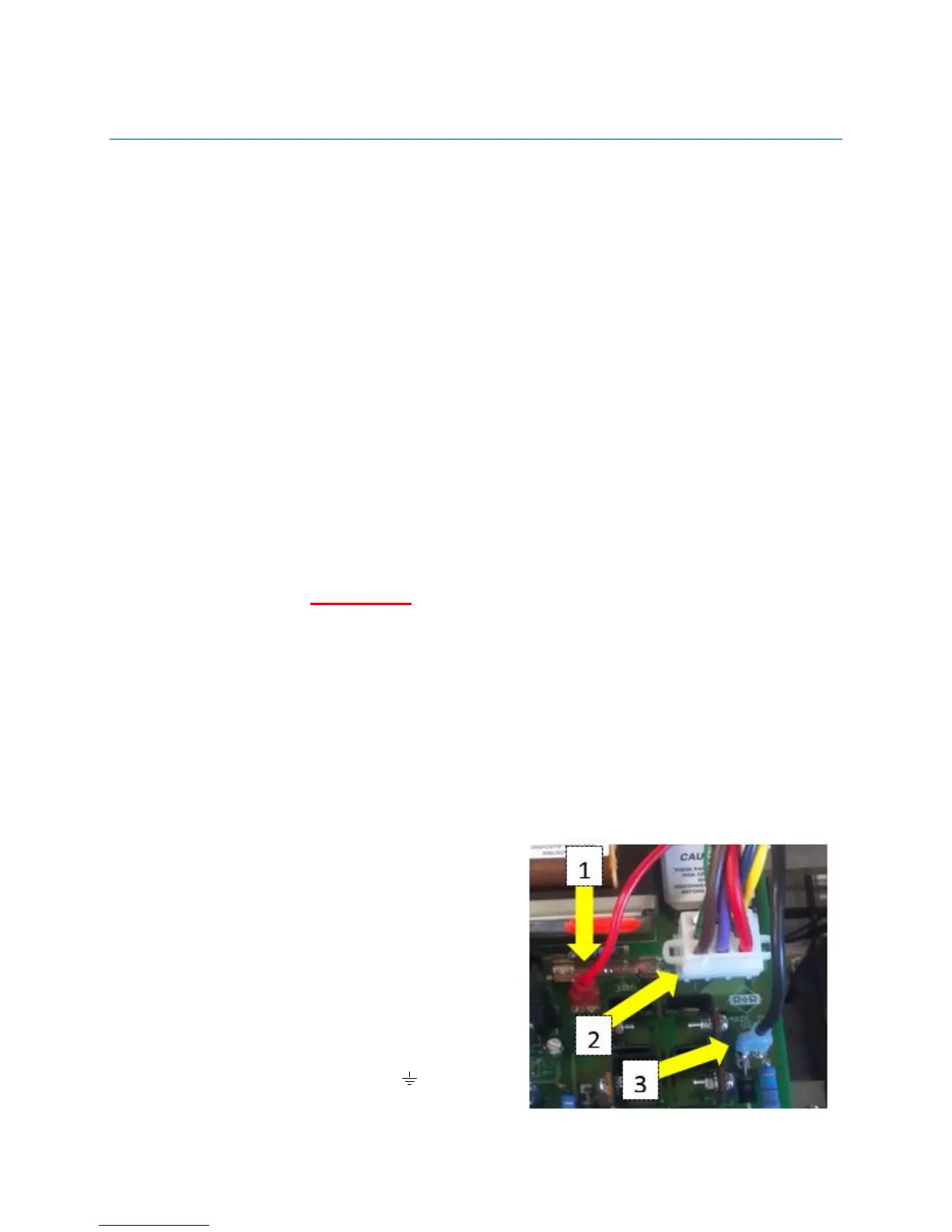

The three items that need to be plugged
in are:
1. The RED wire to the +B terminal
2. The 9-pin wire harness to the
molex plug (MTC) on the control
board
3. The BLACK wire to the terminal
To Next Page
