SOFT START SETUP – SPRECHER + SCHUH
SETUP

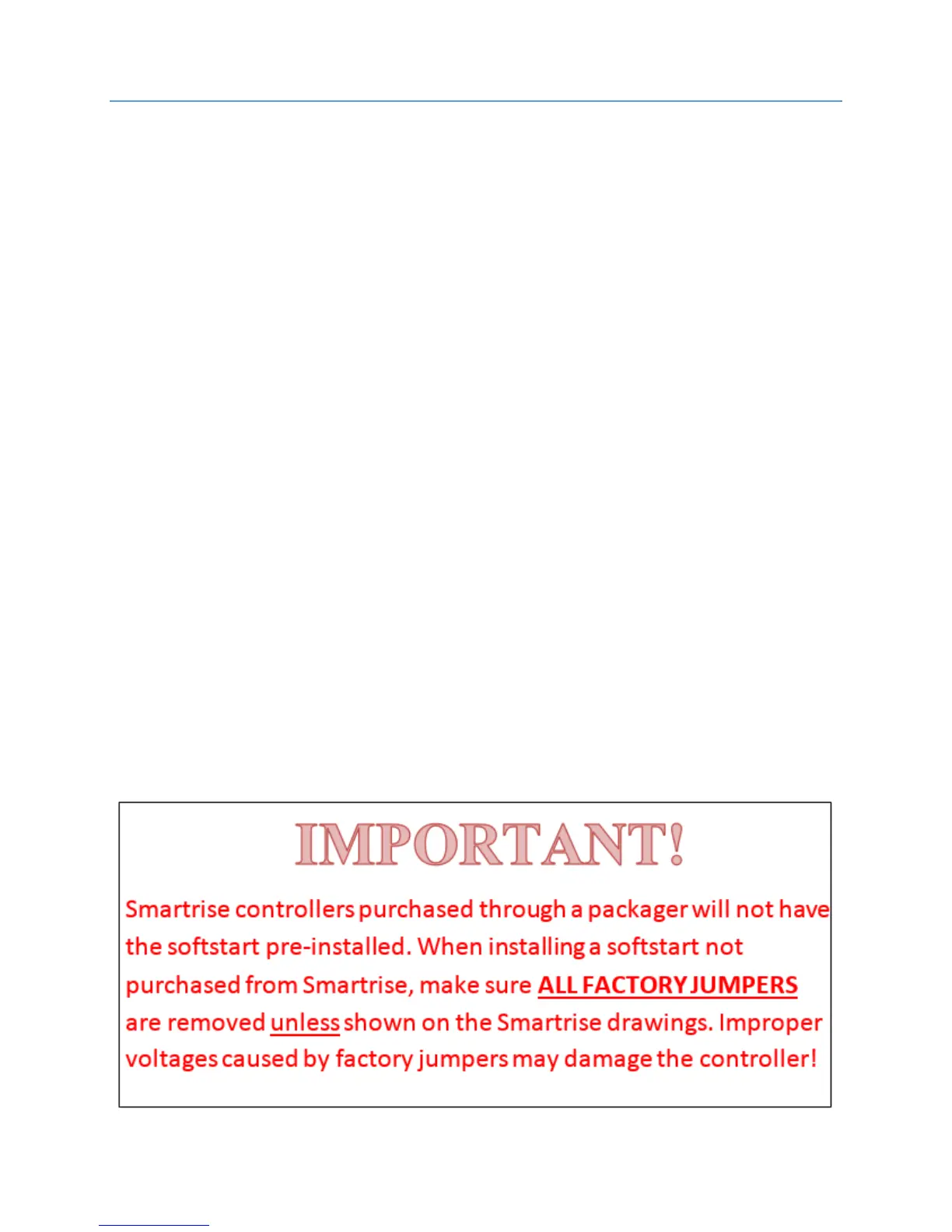

Verify the motor line or delta configuration and ensure that DIP switch 15 on
the Soft Starter reflects this configuration.
If the Soft Start faults out upon initial up run command, check for a red-
blinking LED on the Soft Start and count the number of times it illuminates
sequentially before a brief pause.
o The most likely cause is a line rotation issue which can be resolved by
switching T1 & T2 motor leads or change DIP switch 9 on the soft starter
to its alternate position (refer to “Sprecher + Schuh PCE Soft Start Dip
Switch Settings”).
o After changing the position of this switch, press the Reset Button adjacent
to the DIP switch group.
A noisy pump motor usually indicates a motor wiring issue. Check the pump
motor wiring and make sure it’s connected per the manufacturers
specifications.
If problems persist, refer to the Sprecher + Schuh manual for all faults
associated with the light.
