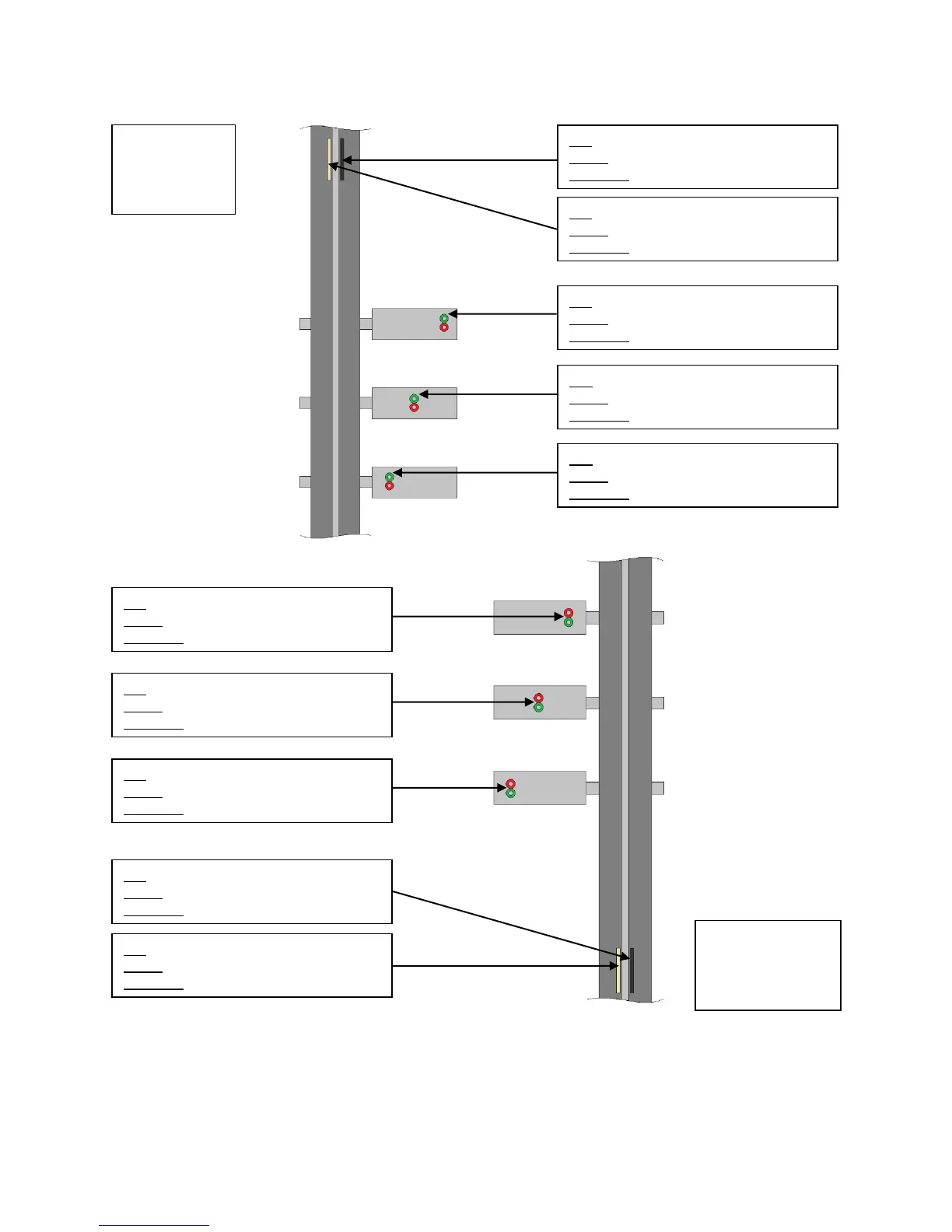

UT#/DT# MAGNET ALIGNMENT – RAIL
NOTE: The actual distance will be determined by using the actual slide distance
determined from the “Slide Distance – Determining ETS Magnet Placement”
procedure on the following pages.
UET: Red/Green Lifesaver Magnets
Sensor: Gray Bistable cigar sensor
Placement: [SEE NOTE]
UT1: Red/Green Lifesaver Magnets
Sensor: Gray Bistable cigar sensor
Placement: [SEE NOTE]
UT2: Red/Green Lifesaver Magnets
Sensor: Gray Bistable cigar sensor
Placement: [SEE NOTE]
DT2: Red/Green Lifesaver Magnets
Sensor: Gray Bistable cigar sensor
Placement: [SEE NOTE]
DT1: Red/Green Lifesaver Magnets
Sensor: Gray Bistable cigar sensor
Placement: [SEE NOTE]
DET: Red/Green Lifesaver Magnets
Sensor: Gray Bistable cigar sensor
Placement: [SEE NOTE]
DZ1: Black North Pole Magnet
Sensor: Black Monostable cigar sensor
Placement: Right side of center rail
DZ2: Lt. Yellow South Pole Magnet
Sensor: Black Monostable cigar sensor
Placement: Left side of center rail
DZ1: Black North Pole Magnet
Sensor: Black Monostable cigar sensor
Placement: Right side of center rail
DZ2: Lt. Yellow South Pole Magnet
Sensor: Black Monostable cigar sensor
Placement: Left side of center rail
Bottom Terminal
Landing Door
Zone
Top Terminal
Landing Door
Zone
To Next Page
