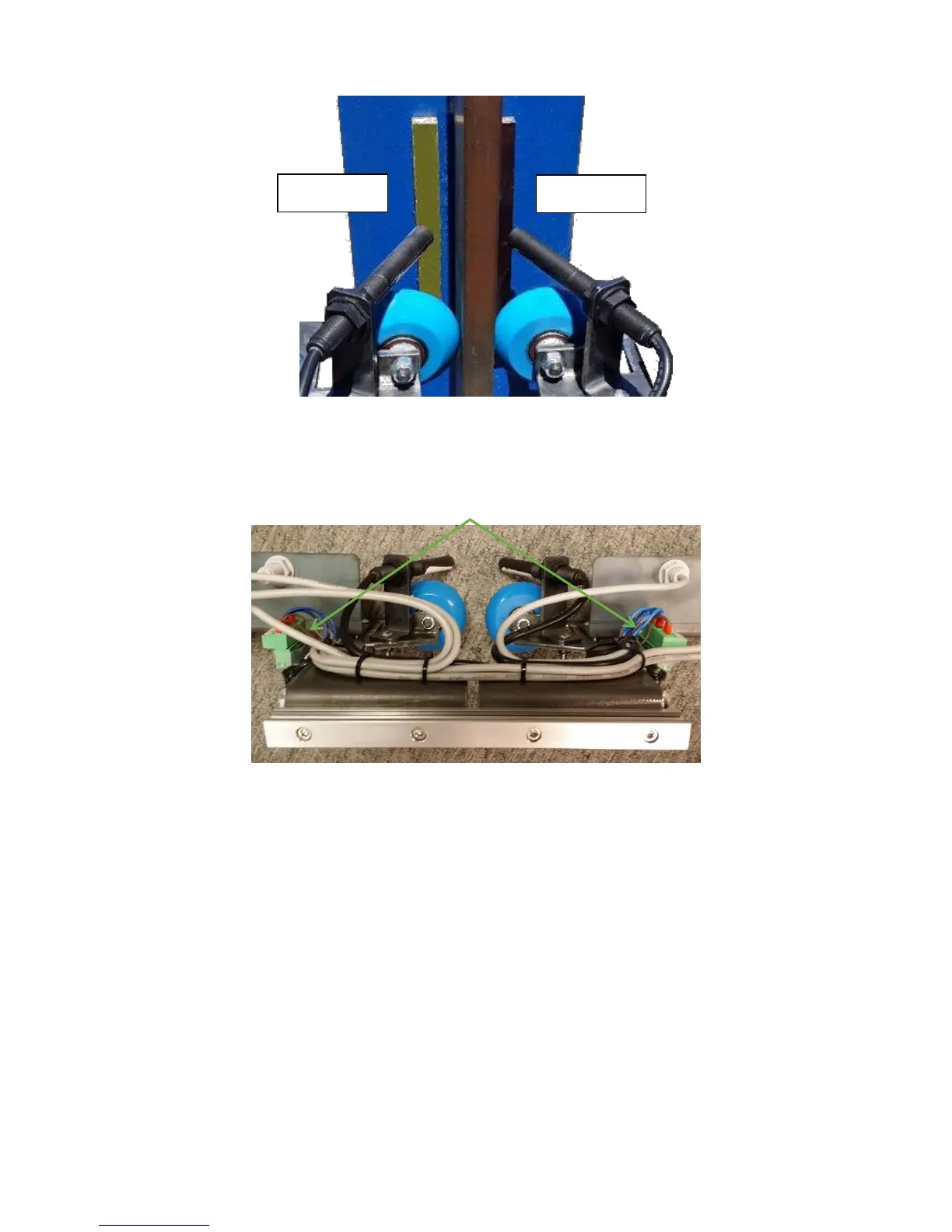

The following picture shows the sensor rail placement in regards to the DZ the magnets:
Final Setup for the Tapeless Landing System
1. Install the CAT5 cables from the “Landing System” breakout boards to the Car-Top
enclosure.
2. Make sure the (DZ) magnets are installed properly at the floor levels. Refer to the
“Magnet Placement” section of the Smartrise manual for additional placement
instructions if required.
3. Verify that the proper signals are flagging on the CT SRU board from the landing system
CIGAR SENSORS
The Door Zone (DZ) and ETS magnets are read by long sensors typically
known as “Cigar Sensors”.
