Door Zone (DZ) – refers to the Door Zone magnet. Proper installation of
the door zone magnets is very important for floor leveling and Normal
Limits.
ETS (North/South) – The ETS magnets are a dual North/South
combination that allows the IP8300 selector to determine which
terminal landing it’s at. The placement of the magnets is shown on
the “UET/DET MAGNET INSTALLATION – DISTANCE FROM DOOR
ZONE” illustration.

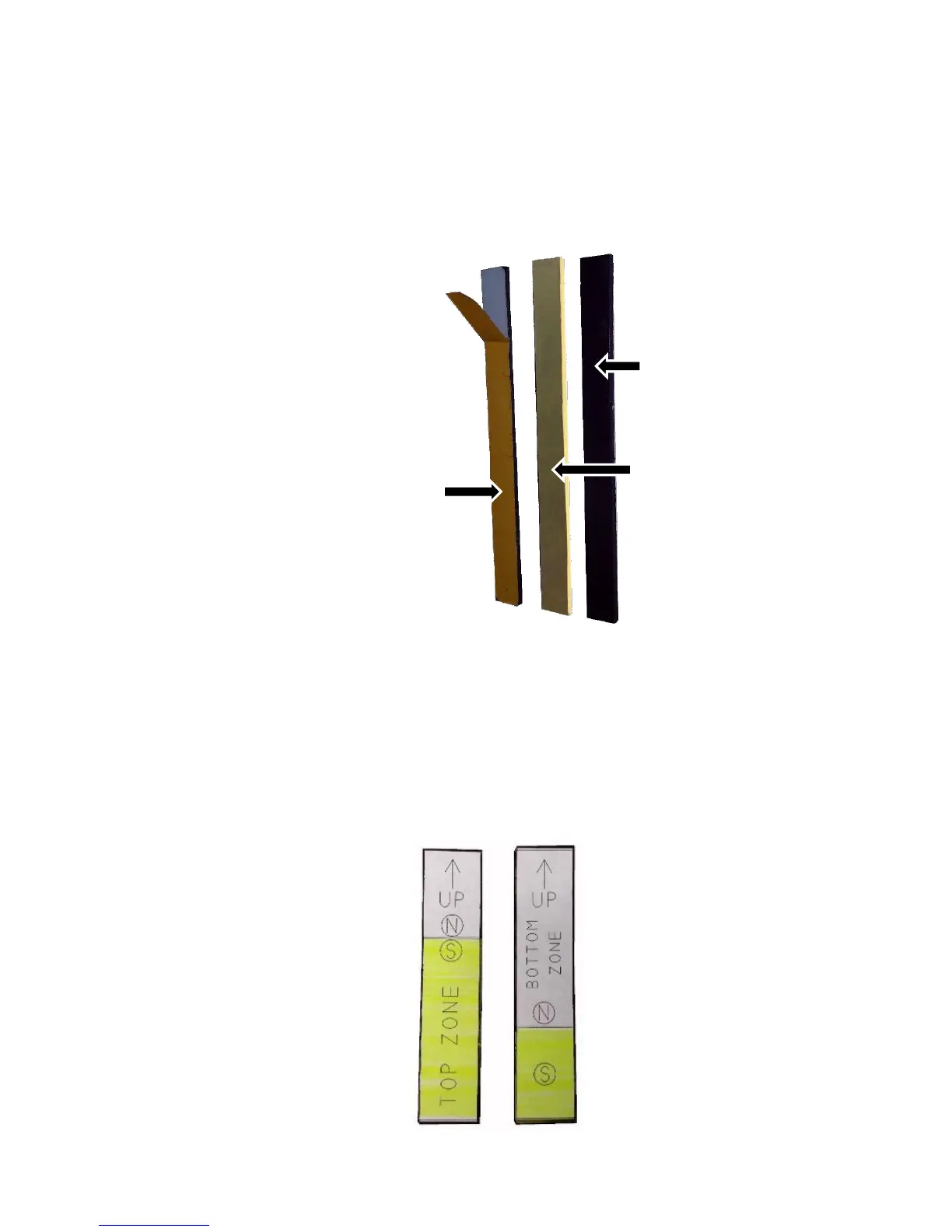

Bright Yellow side against Tape
This side contains an adhesive
strip to permanently attach the
magnet to the steel tape.
DZ2 (Light Yellow)
side facing away
from Tape
DZ1 (Black) side
facing away from
Tape
