Smartrise F220

261
REPLACING PICK RELAY

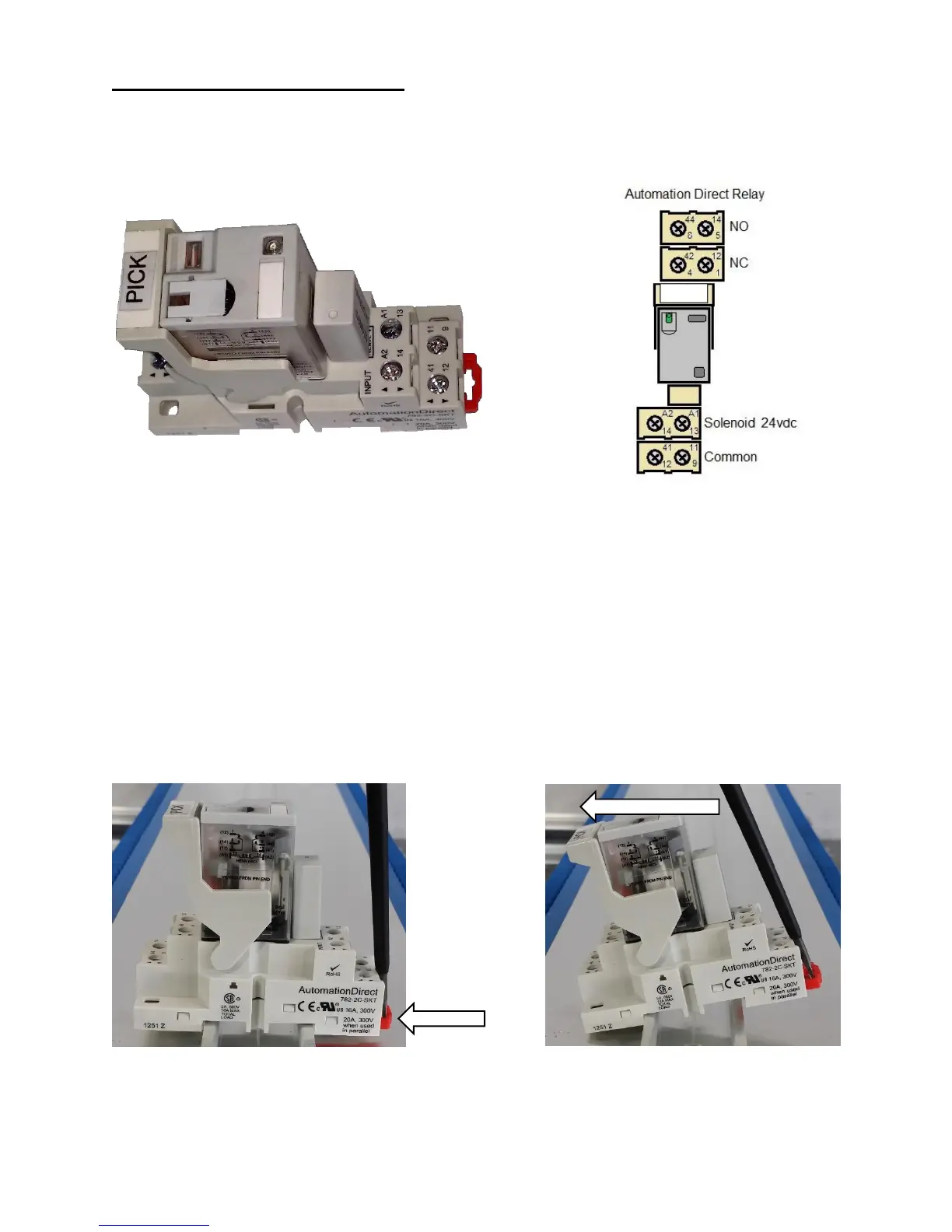

Smartrise now uses the Auto-D Pick relay. Use the following diagram for reference when
replacing the older style force feedback relay with the new Auto-D relay.
1. If the relay is found to be defective then replace the complete assembly.
a. Turn off main power.
b. Label the wires and then remove them from old relay.
c. To remove the relay from the rail, insert a large flat-blade screwdriver into the
red tab (figure 1) and pull screwdriver handle back towards the relay (figure 2).
d. Install the new relay by attaching the side opposite the tab onto the rail first and
then rotating it down onto the rail, snapping it into place.
2. Re-install the wiring to the correct terminals.
3. Restore power.
Figure 1 Figure 2
