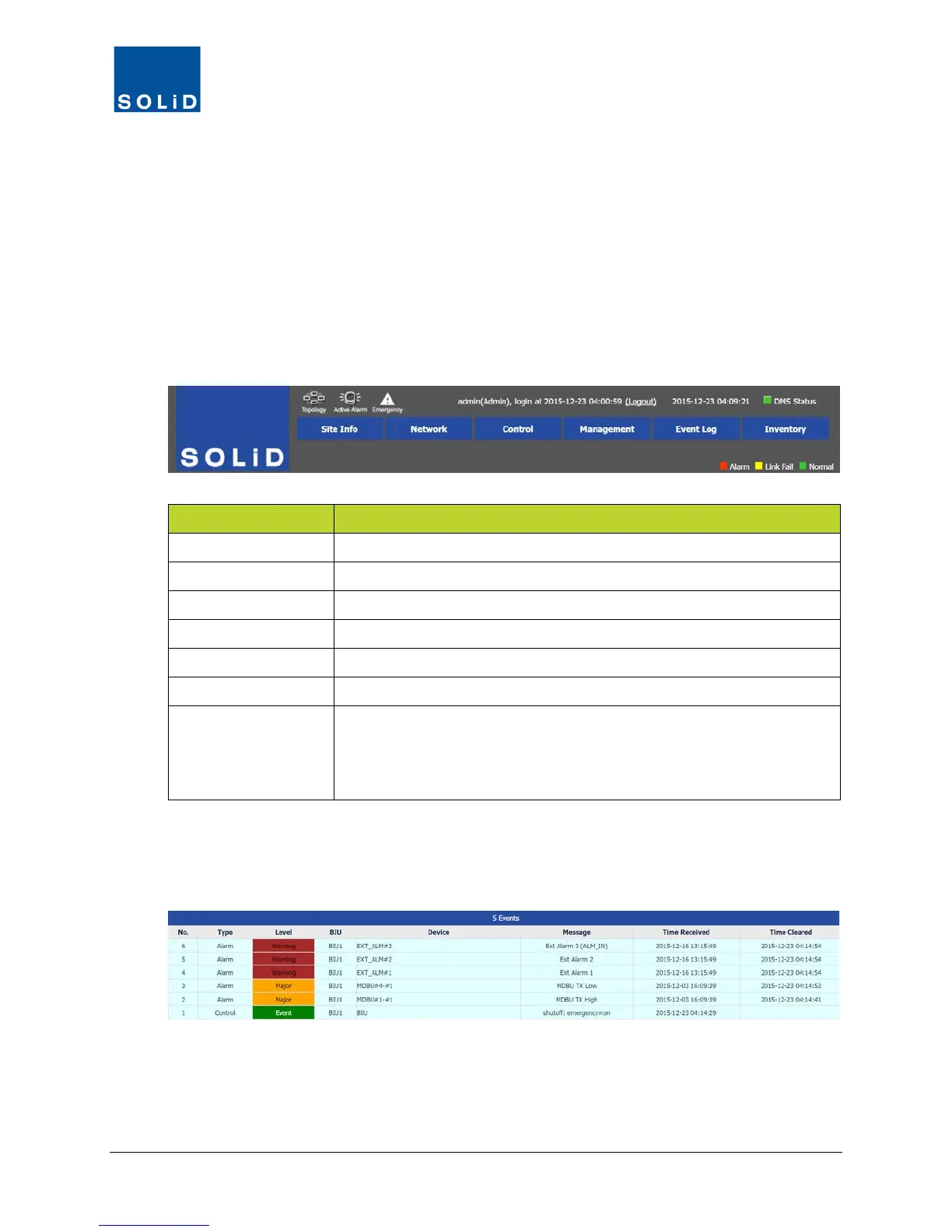

3.3 Using the Main Screen
The Main screen shows the current status of the DMS and provides access to the Navigation Bar
menus and submenus.
3.3.1 System Status
You can view the current DAS status, topology, alarm conditions and DMS connection status
from the options at the top of the Navigation Bar.
You can also shut down remote units in the system in case of emergencies. (This feature is only
available to Administrators.)
Option Action / Status
Topology Click on the icon to show system hierarchy in graphical form.
Active Alarm Click to display a summary of current active alarms.
Emergency Click to shut off remote units in case of Emergency.
Name, login, time Displays the name of the current user and login time.
Logout Click to quit the program.
Date/Time Displays current date and time.
DMS Status
Green = normal operation with no fault conditions.
Yellow = a user is currently logged into the ALLIANCE DAS using the
MC-DAS management software (GUI).
Red = the DMS is not connected to the ALLIANCE DAS.
Table 3.1 – Status Options
You can also see a list of current system events by clicking on the Event bar at the bottom of the
screen.
