Solid DMS-1200 - Green Mode Setup (THOR NHROU Only)

DMS-1200 Release 6 Operations Manual
Section 7 – DAS Device Control 78

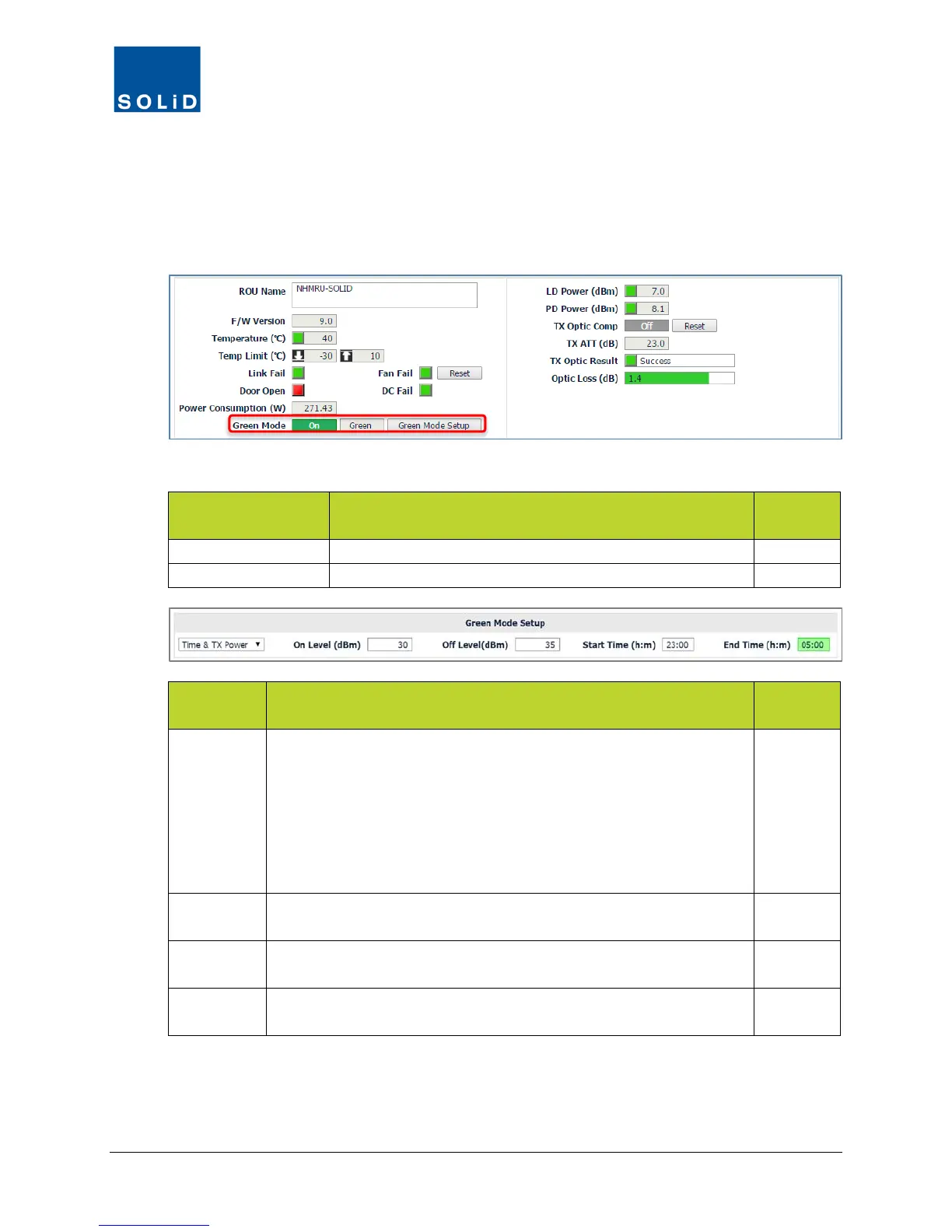

7.5.8 Green Mode Setup (THOR NHROU Only)
The 20W (THOR) NHROU offers a “Green Mode” setting, which can reduce the remote’s power
consumption. Green Mode can be activated by either time of day, TX power levels or both
conditions. When Green Mode is on, the power supply unit provides +24V DC to the HRDU;
when off, the power unit supplies +29V DC.
5. Configure Green Mode for the 20W THOR NHROU according to these guidelines:
Green Mode Fields Action / Description
User
Configure
Green Mode
Turn Green Mode On / Off.
Y
Green Mode Setup
Click to configure Green Mode.
Y
Green
Mode Setup
Action / Description
User
Configure
Green
Mode Type
From the pull down menu choose:
Time: Green Mode turns on/off at specified time of day.
TX Power: Green Mode turns on/off when TX power level falls below
/ exceeds specified values.
Time & TX Power: Green mode activates when both conditions of
time and TX power level are met at the same time. Green mode
deactivates when either condition is not met.
Y
On Level
Set “On” power level. When TX output power level of NHRDU falls
below this value, Green Mode is activated. (Default=32dBm)
Y
Off Level
Set “Off” power level. When TX output power level of HRDU exceeds
this value, Green Mode is disabled. (Default=35dBm)
Y
Start / End
Time
Set Start and End times for Green Mode (expressed in 24hr time). Y
Table 7.25 – NHROU Control Screen Fields – Green Mode Setup (NHROU Only)
6. Click Apply when you are done. Changes are saved immediately.
