3. Configure the Optic Information according to these guidelines:
ROU Field Action / Description
User
Configure
LD Power Shows laser diode power of R-Optic module. Green = normal
operation. Red = Power is below reference power.
N
PD Power Shows photo diode power being received from ODU or OEU.
Green = normal operation. Red = Receive power is below
reference level.
N
Tx Optic
Comp
Turn On/Off Auto optic compensation for transmit signal.
Y
Tx ATT
Shows attenuation level for compensating optical loss.
N
Tx Optic
Result
Shows result after running Auto optic compensation:
Success: The optical compensation has been successful.
Over Optic Loss: optical loss exceeds limits: 6dBo or more for 4-
port optic module; 11dBo or more for 1-port optic module.
Communication Fail: Communication with BIU has failed.
N
Optic Loss Displays optical loss. Green = optical loss is within tolerance. Red
= optical loss exceeds limits: 9dB for 1-port optic module; 4dB for
4-port optic module.
N

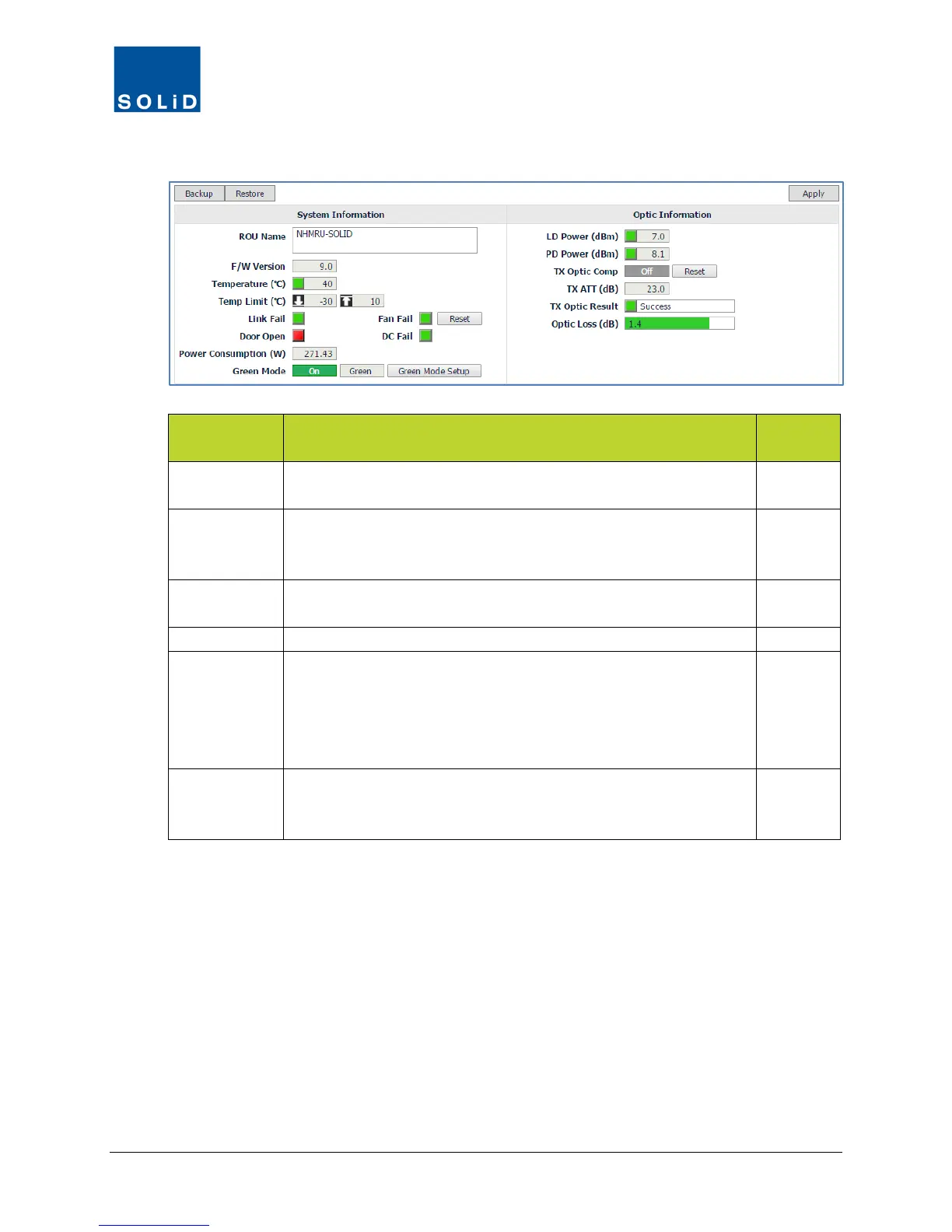

Table 7.24 – HROU Control Screen Fields – Optic Information
4. Click Apply when you are done. Changes are saved immediately.
