DMS-1200 Release 6 Operations Manual
Section 7 – DAS Device Control 58
7.4 Setting OEU Parameters
The Optical Expansion Unit (OEU) has two types of optical modules: E-Optic module for
connecting the OEU to the ODU, and up to two DOUs for connecting to ROUs. The DOUs used
in the OEU are the same units used in the ODU and have the same configuration options.

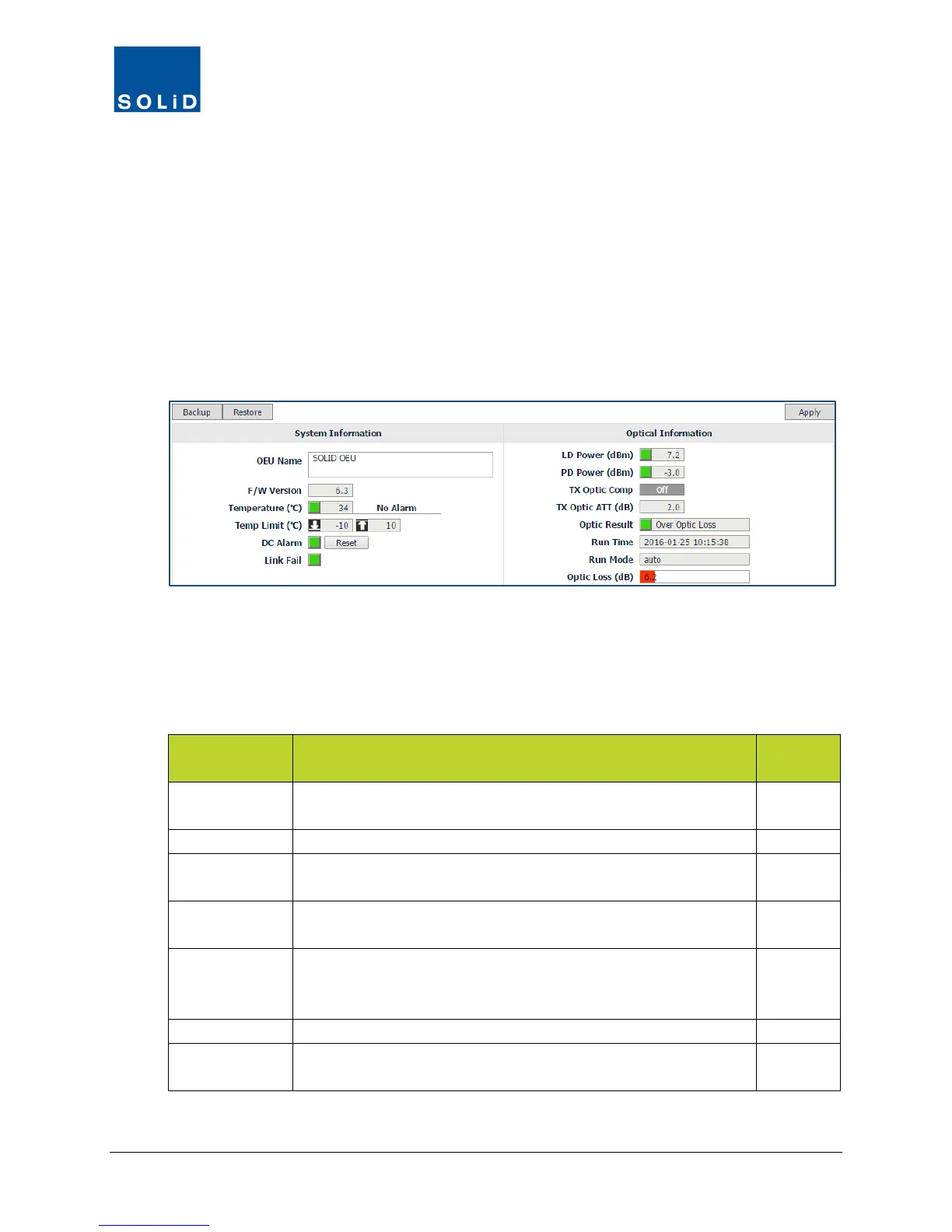

The OEU Control screen allows you to monitor and manage settings for the OEU, the E-Optic
and DOUs.
7.4.1 OEU / DOU Setup
1. In the Tree Menu or Menu bar, click on the OEU you want to configure to load its Control
screen.
Some fields show current settings and are not user configurable. Other fields allow you to
configure parameters for the device. You can see the Min / Max values for the parameter by
clicking in the field.
2. Configure the OEU according to these guidelines:
OEU Field Action / Description User
Configure
OEU Name Enter a name that will be used to identify the OEU throughout the
system. Maximum 40 alpha-numeric characters.
Y
F/W Version
Displays firmware version of the CPU in the OEU.
N
Temperature Displays current temp of OEU. Also shows temp alarm status.
Green = temp within limits. Red = temp above/below limits.
N
Temp Low /
High
Shows Low / High temp alarm settings. N
DC Alarm Shows status of DC Power. Green = normal. Red = over-current
or low output voltage failure at power supply.
Click Reset to restart the power supply unit.
Y
(Reset)
Link Fail
Status of BIU communication. Green = normal. Red = link failure.
N
Backup /
Restore
Backup saves the current settings for the OEU, E-Optic module,
and DOUs. Restore re-applies settings from backup file.
Y
Table 7.7 – OEU System Information Setup Screen Fields
