1.1 DMS-1200 Specifications
The DMS-1200 server is typically mounted in the head end rack above the ODUs and in close
proximity to the BIUs. The server has an internal power supply and requires standard 120-240V
AC power. A power cable ships with the unit.
The DMS-1200 server requires 1U in a standard 19-inch equipment rack but should have 1U
above and below for air circulation.

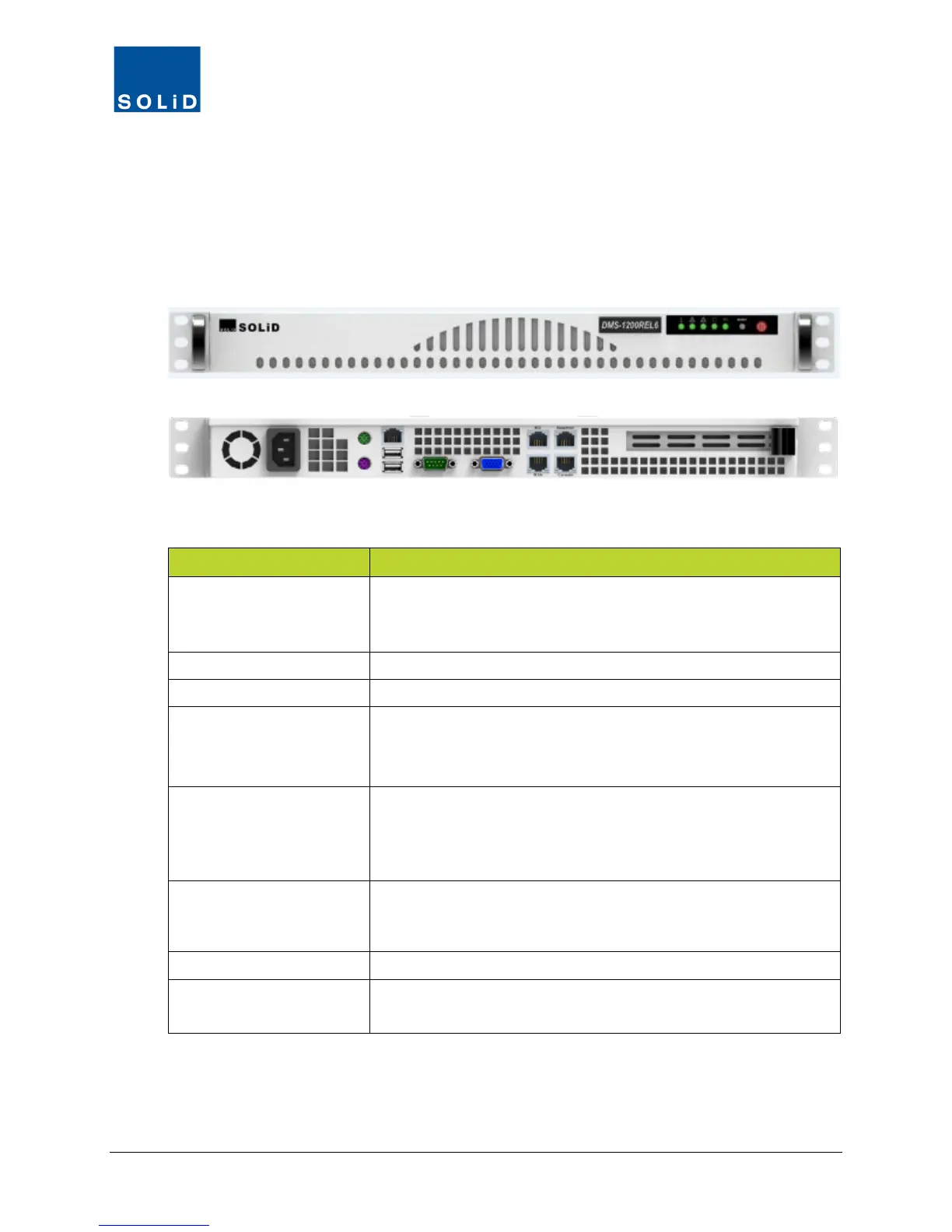

Figure 1.2 − DMS-1200 Front and Rear Views
Parameter Specification
Available Interface Ports
One LAN Ethernet port for WAN, BIU connection, local console
port. One LAN Ethernet port reserved for future use.
Two USB-A Ports (USB rating: 5v, 0.5amp)
External Alarm Connector Programmable dry contacts
Buttons / LED Indicators
System RESET button. Power ON/OFF button
LEDs show status for: power, system activity, network activity,
system temperature warning
Power Specifications
AC Voltage: 100-240V, 60-50Hz
Amperage: 2 amperes maximum
Power consumption: 260 Watts at full load
6ft. cord with NEMA 5-15 plug (included)
Dimensions (W x H x D
mm)
Rack-mountable (19-inch, 1U)
16.8"W (fits 19” rack) x 1.75"H (IU) x 14"D
426 mm x 43 mm (1U) x 356 mm
Weight 14 lbs. (6.4 kg)
Operating Environment
Operating Temp: 50° to 95° F (10 to 35˚C)
Humidity Range: 8 ~ 90% non-condensing
Table 1.1 – DMS-1200 Physical Specifications
