5-4
J-1 J-2
J-6
J-3
J-7 J-8
J-4 J-5

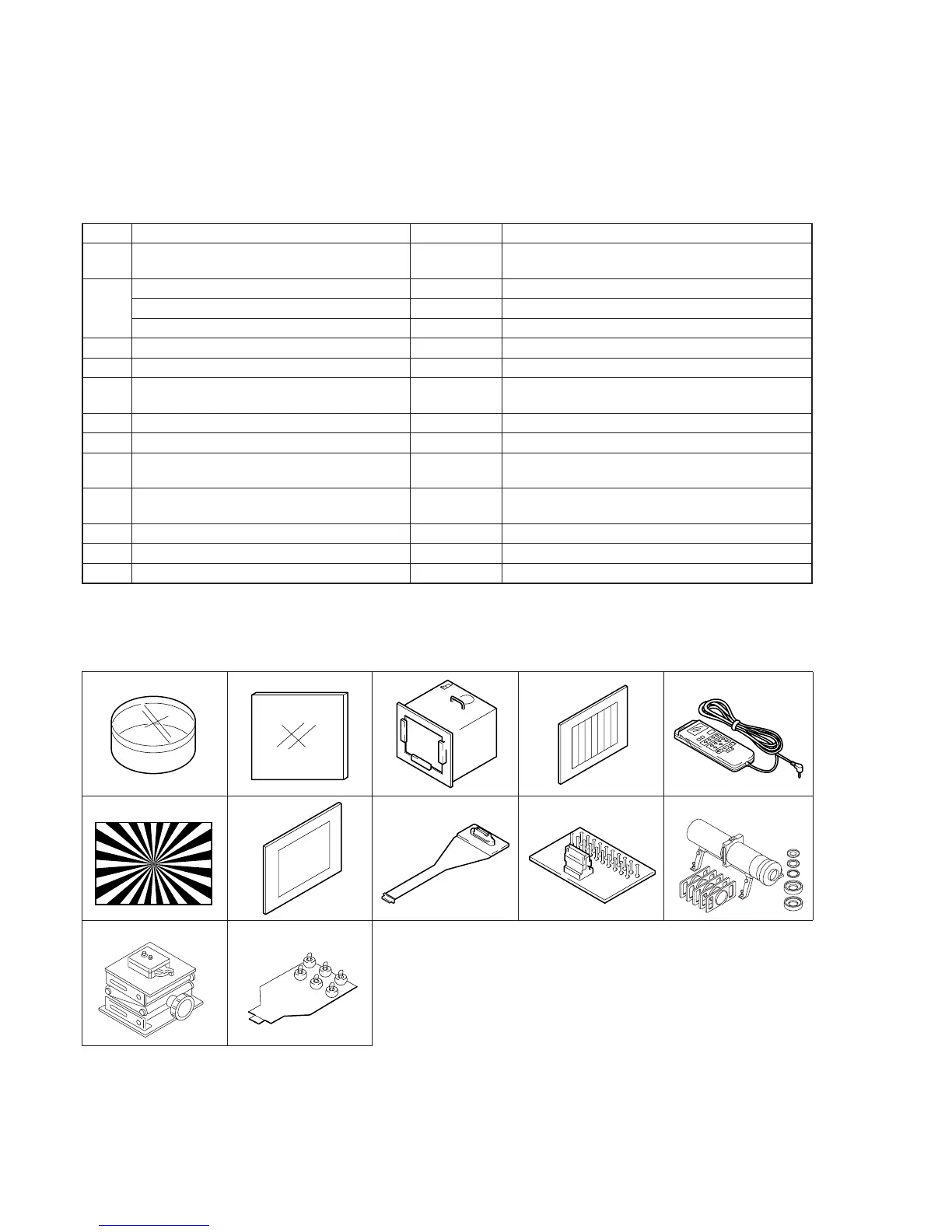

Fig. 5-1-1.
J-9 J-10
J-11
Ref. No.
J-1
J-2
J-3
J-4
J-5
J-6
J-7
J-8
J-9
J-10
J-11
J-12
Name
Filter for color temperature correction (C14)
ND filter 1.0
ND filter 0.4
ND filter 0.1
Pattern box PTB-450
Color chart for pattern box
Adjustment remote commander (RM-95 upgraded).
(Note 1)
Siemens star chart
Clear chart for pattern box
CPC-6 flexible jig (Note 2)
CPC-6 terminal board jig
Mini pattern box
Camera table
CPC-jig for LCD panel
Parts Code
J-6080-058-A
J-6080-808-A
J-6080-806-A
J-6080-807-A
J-6082-200-A
J-6020-250-A
J-6082-053-B
J-6080-875-A
J-6080-621-A
J-6082-370-B
J-6082-371-A
J-6082-353-B
J-6082-384-A
J-6082-529-A
Usage
Auto white balance adjustment/check
White balance adjustment/check
White balance check
White balance check
White balance check
For checking the flange back
For adjusting the video section
For adjusting the color viewfinder
For adjusting the video section
For adjusting the color viewfinder
For adjusting the flange back
For adjusting the flange back
For adjusting the LCD system
5-1. CAMERA SECTION ADJUSTMENT
1-1. PREPARATIONS BEFORE ADJUSTMENT (CAMERA SECTION)
1-1-1. List of Service Tools
• Oscilloscope • Color monitor • Vectorscope
• Regulated power supply • Digital voltmeter
Note 1: If the micro processor IC in the adjustment remote commander is
not the new micro processor (UPD7503G-C56-12), the pages
cannot be switched. In this case, replace with the new micro
processor (8-759-148-35).
Note 2: When using the old CPC-6 flexible jig (J-6082-370-A), open the
cabinet (R) assembly.
J-12
