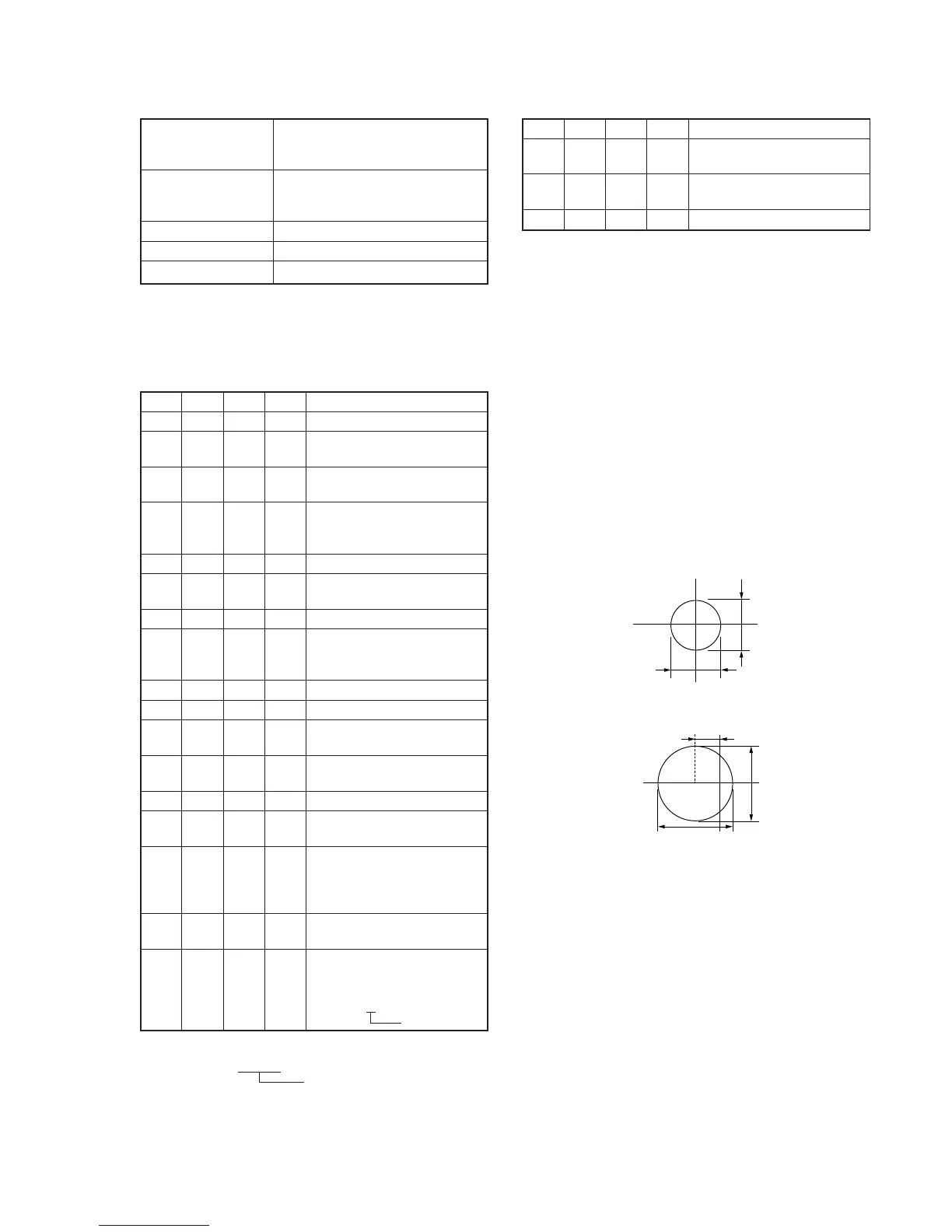

12. White Balance Check
Subject Clear chart
(Color reproduction adjustment
frame)
Filter Filter C14 for color temperature
correction
ND filter 1.0 and 0.4 and 0.1
Measurement Point Video output terminal
Measuring Instrument Vectorscope
Specified Value Fig. 5-1-13. A to B
Switch setting:
1) POWER ..................................................................CAMERA
2) NIGHT SHOT ..................................................................OFF
3) DIGITAL ZOOM (Menu display) ...................................OFF
Checking method:
Order Page
Address
Data Procedure
Indoor white balance check
1 Check that the lens is not
covered with either filter.
2 6 01 0F Set the data, and press PAUSE
button.
3 Check that the center of the
white luminance point is within
the circle shown Fig. 5-1-13. A.
Outdoor white balance check
4 6 01 3F Set the data, and press PAUSE
button.
5 Place the C14 filter on the lens.
6 Check that the center of the
white luminance point is within
the circle shown Fig. 5-1-13. B.
7 Remove the C14 filter.
Indoor white balance data check
8 6 01 00 Set the data, and press PAUSE
button.
9 Place the ND filter 1.5
(1.0+0.1+0.4) on the lens.
10 0 01 01 Set the data.
11 F 10 A9 Set the data, and press PAUSE
button.
12 1 Check that the display data
(Note) satisfies the specified
value.
Specified value: 0000 to 0BC0
13 F 10 A1 Set the data, and press PAUSE
button.
14 1 Check that the second digit of
the display data (Note) is “1”
Specified value:
1 : XX : XX
“1”
Note: Displayed data of the adjustment remote commander.
1 : XX : XX
Display data
Processing after Completing Adjustments
Order Page
Address
Data Procedure
1 6 01 00 Set the data, and press PAUSE
button.
2 F 10 00 Set the data, and press PAUSE
button.
3 0 01 00 Set the data.
