Sony DCR-PC6E - VC-265;265 A Board; Mechanism Deck

2-4

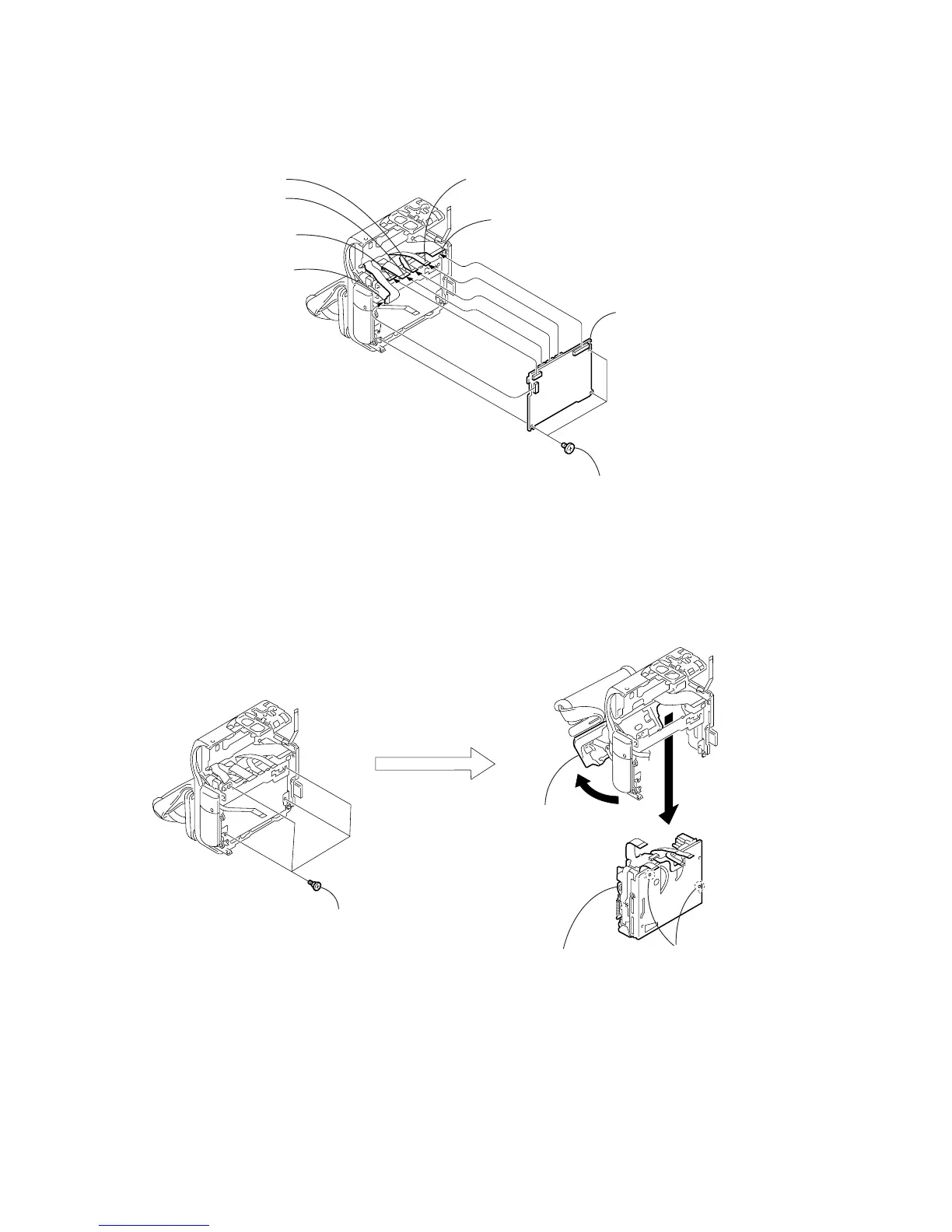

2-4. VC-265/265A BOARD
2-5. MECHANISM DECK
VC-265
1 Control switch block
(FK-1770) (51P)
6 Flexible board (from drum motor) (10P)
7 Flexible board
(from video head) (10P)
5 FP-102 flexible board (27P)
3 Flexible board
(from capstan motor) (27P)
4 Three screws
(M1.7 × 2.5)
2 FP-347 flexible board (9P)
(PC9/PC9E)
8 VC-265 board (PC9/PC9E)
VC-265A board (PC6E)
1 Four screws
(M1.4 × 1.5)
3 Two dowel
s
4 Mechanism deck,
Cassette compartment
cover, etc.
2 Open the
cassette lid
