DCR-PC6E/PC9/PC9E
4-9 4-10
CCD IMAGER, PITCH/YAW SENSOR
CF-085

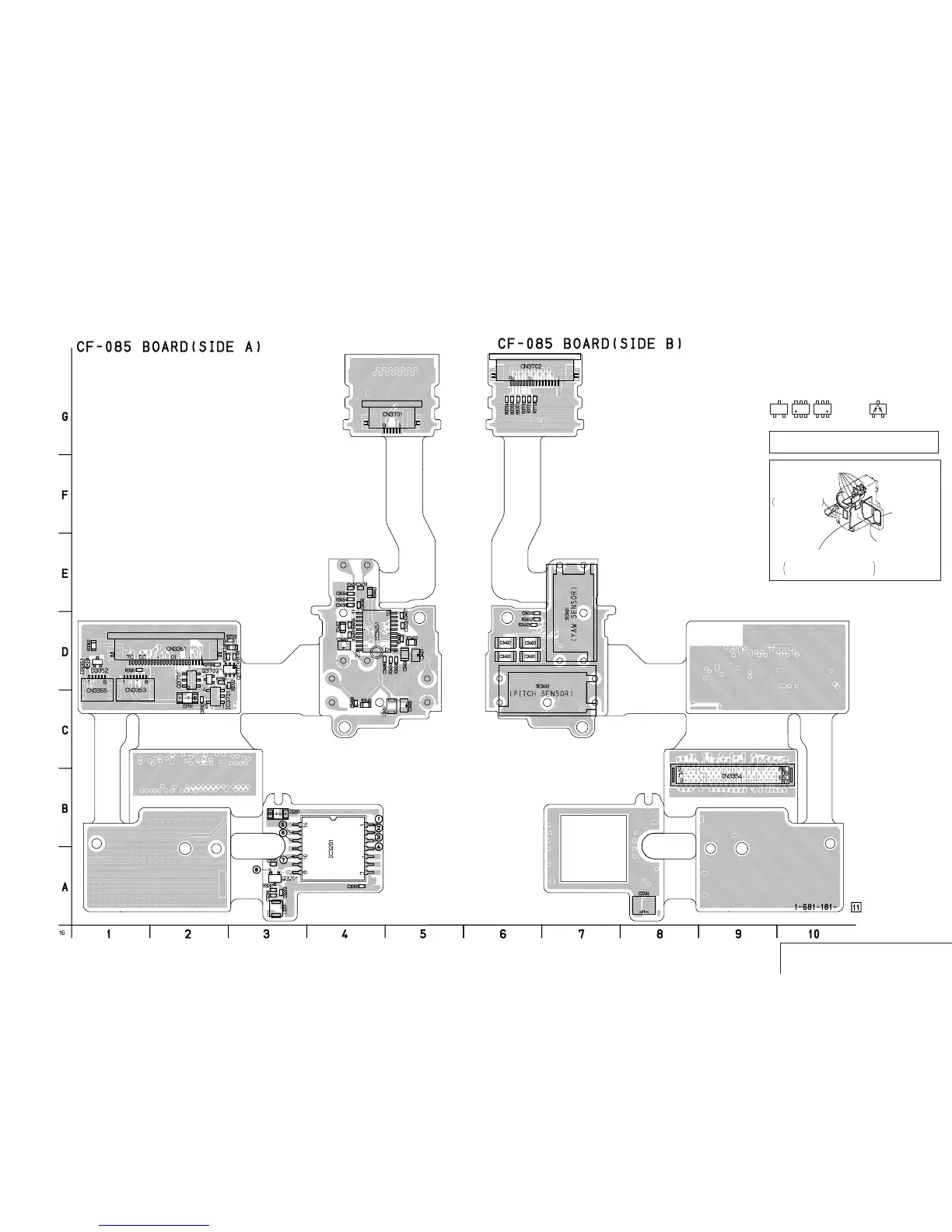

CF-085 (CCD IMAGER, PITCH/YAW SENSOR) PRINTED WIRING BOARD
— Ref. No. CF-085 Board; 20,000 Series —
PD-148 (PC9/PC9E)
PD-148A (PC6E)
(LCD DRIVE, BACK LIGHT)
VC-265 (PC9/PC9E)
VC-265A (PC6E)
CAMERA PROCESS, MS INTERFACE,
DV PROCESS, VIDEO, AUDIO, SERVO,
HI/MECHA CONTROL, DC/DC CONVERTER
CF-085
(CCD IMAGER, PITCH/YAW SENSOR)
NS-013
REMOTE COMMANDER
RECEIVER
INVERTER
TRANSFORMER UNI
For printed wiring board
• Refer to page 4-78 for parts location.
• This board consists of multiple layers. However, only
the sides (layers) A and B are shown.
• Chip parts
Transistor Diode
There are a few cases that the part printed on
this diagram isn’t mounted in this model.
C
BE
5
64
2
13
5
46
2
31
3
21
To Next Page
