Sony DCR-PC6E - Cabinet (R) Section-2

6-3

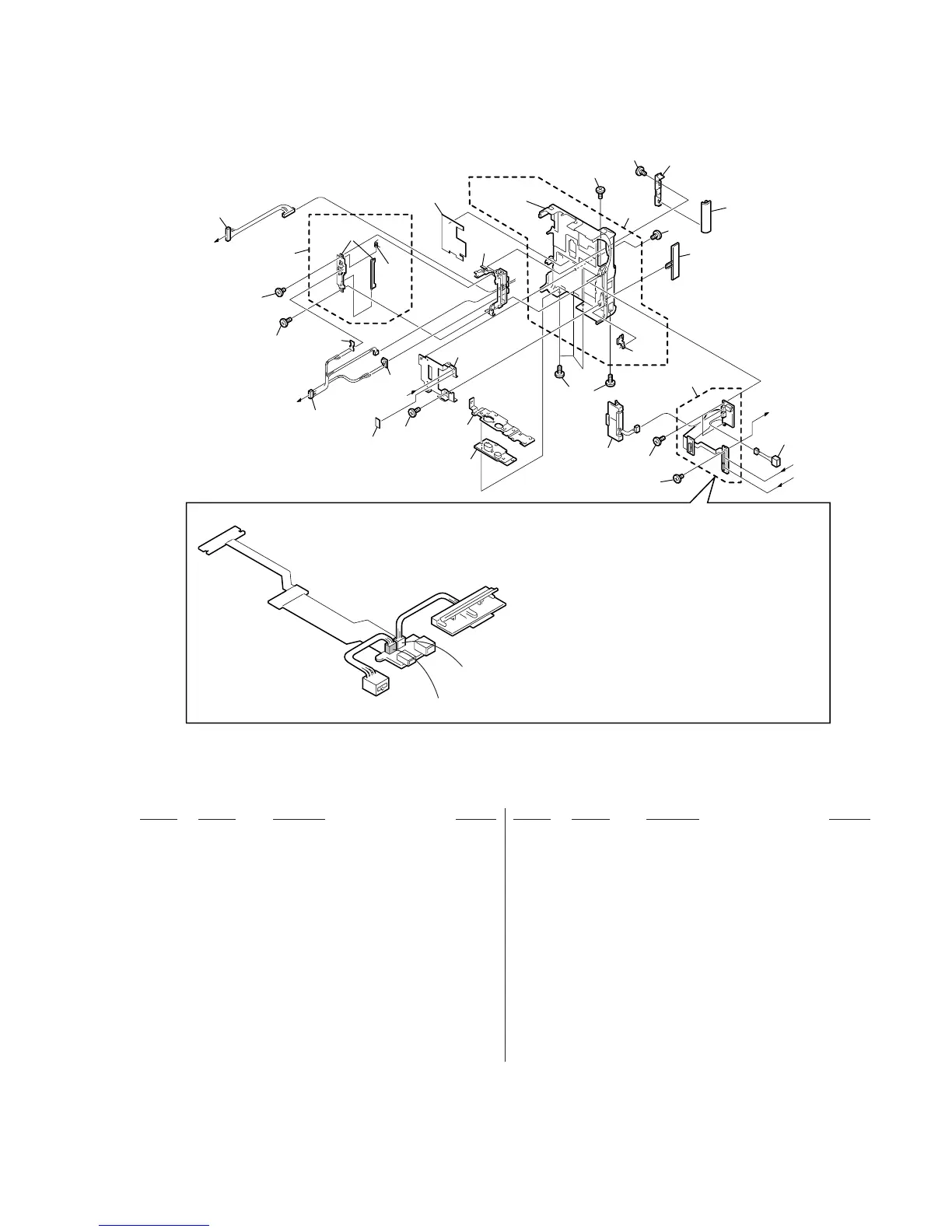

6-1-3. CABINET (R) SECTION-2
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
101 3-068-788-01 SCREW, TRIPOD
102 3-068-787-02 FRAME, BOTTOM
103 X-3951-709-1 PLATE ASSY, TERMINAL RETAINER
104 3-713-791-01 SCREW (M1.7X4), TAPPING, P2
105 1-961-078-11 HARNESS (PR-063)
106 3-713-791-41 SCREW (M1.7X5), TAPPING, P2
107 4-974-725-01 SCREW (M1.7X2.5), P2
108 X-3951-689-1 PLATE ASSY, BLIND
* 109 3-055-323-01 SPRING (MK), TORSION
110 1-961-077-11 HARNESS (PD-113)
111 3-068-783-01 SHEET, BT BLIND
112 X-3951-688-1 HINGE ASSY, LCD
113 3-989-735-31 SCREW (M1.7), LOCK ACE, P2
114 X-3951-682-1 CABINET (R) ASSY (PC9/PC9E)
114 X-3951-702-1 CABINET (R) ASSY (PC6E)
115 3-068-793-01 RETAINER, JACK COVER
116 3-062-106-21 COVER (REAR), HINGE
117 3-068-792-01 COVER (FRONT), HINGE
118 A-7074-874-A BJ-002 BOARD, COMPLETE (PC9/PC9E)
118 A-7074-903-A BJ-002A BOARD, COMPLETE (PC6E)
119 A-7074-873-A PR-037 BOARD, COMPLETE
120 A-7074-872-A PO-007 BOARD, COMPLETE
121 X-3951-768-1 COVER (DV) ASSY, JACK (PC9/PC9E)
121 X-3951-769-1 COVER (DV) ASSY(6), JACK (PC6E)
122 3-068-896-01 SHEET, BJ INSULATING
BT901 1-694-796-11 TERMINAL BOARD, BATTERY
J901 1-815-005-11 CONNECTOR, DC-IN
A
B
A
C
C
B
not
supplied
not
supplied
J901
CN3100 (for the DC-IN connector) and CN3105 (for the battery terminal board) of BJ-002/002A
board are the same size, and the number of the pins is the same.
So these connectors may be mistaken for each other. When these connectors are mistaken,
the charge system of the unit may break.
So ascertain the color of the connector when assembling these connectors.
BT901
(Note)
(Note
)
(Note)
Note:
101
102
103
104
122
119
120
106
107
107
107
107
108
109
110
111
112
113
104
113
114
115
116
117
121
118
105
BJ-002/002A board
Battery terminal board
CN3100 (for the DC-IN connector) ················· Blue
CN3105 (for the battery terminal board) ········ White
DC-IN connector
CN3100 (Blue)
CN3105 (White)
