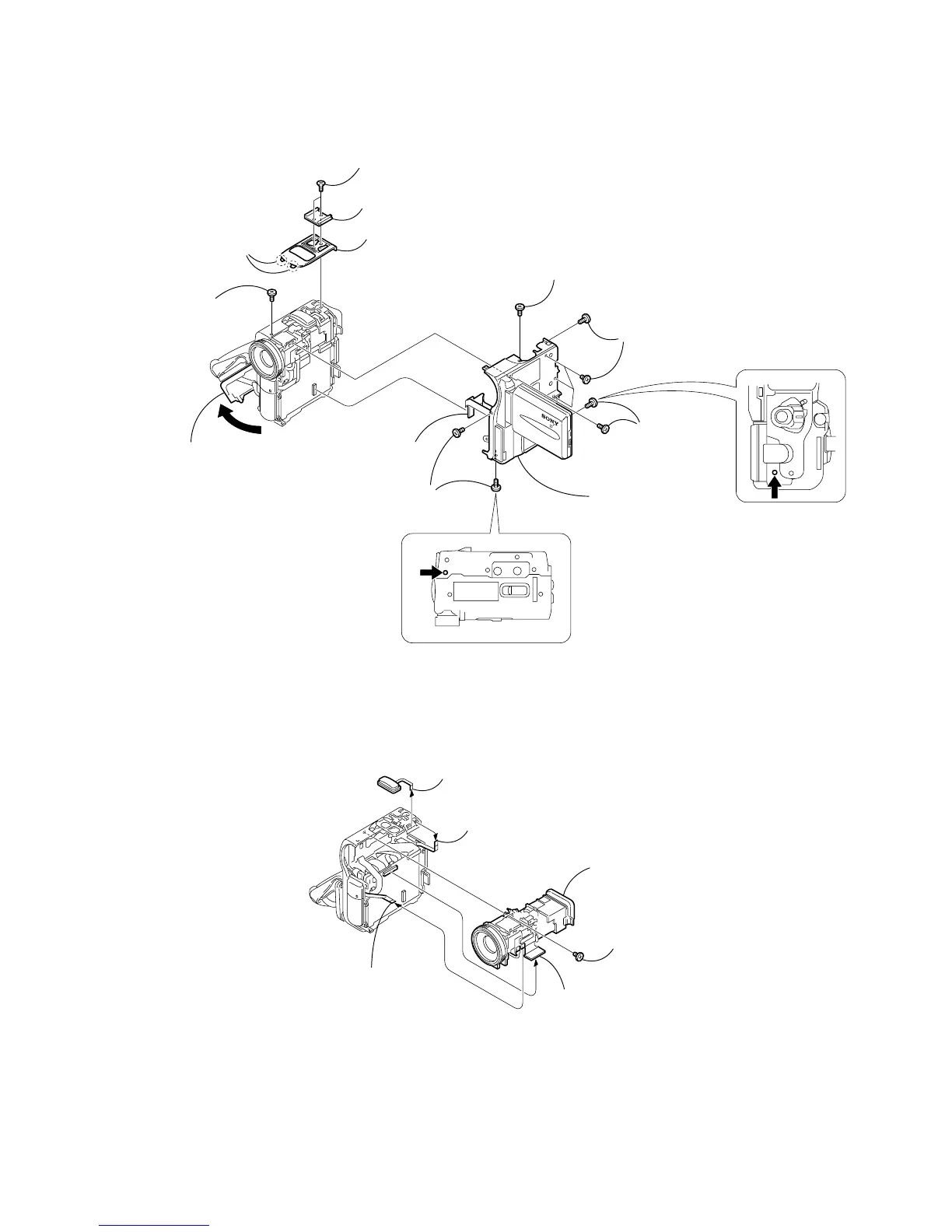

2-2. CABINET (R) SECTION
1 Two plate screws
(M2), lock ace
2 Accessory shoe
4 Microphone cover
5 Screw
(M1.7 × 4),
lock ace, p2
6 Screw (M1.7 × 4),
lock ace, p2
8 Two screws
(M1.7 × 4),
lock ace, p2
9 Two screws
(M1.7 × 4),
lock ace, p2
7 Four screws
(M1.7 × 2.5)
qa BJ-002 board (PC9/PC9E)
BJ-002A board (PC6E)
(60P)
q; Open the
cassette lid
qs Cabinet (R) section
3 Two claws
2-3. LENS-EVF SECTION
1 Microphone block (6P)
2 Control switch block
(PS-1770) (8P)
3 CF-085 board (88P)
4 NS-013 board (8P)
5 Screw
(M1.7 × 2.5)
6 Lens-EVF sectio
n
