Sony DCR-PC6E - Color Reproduction Adjustment

5-22

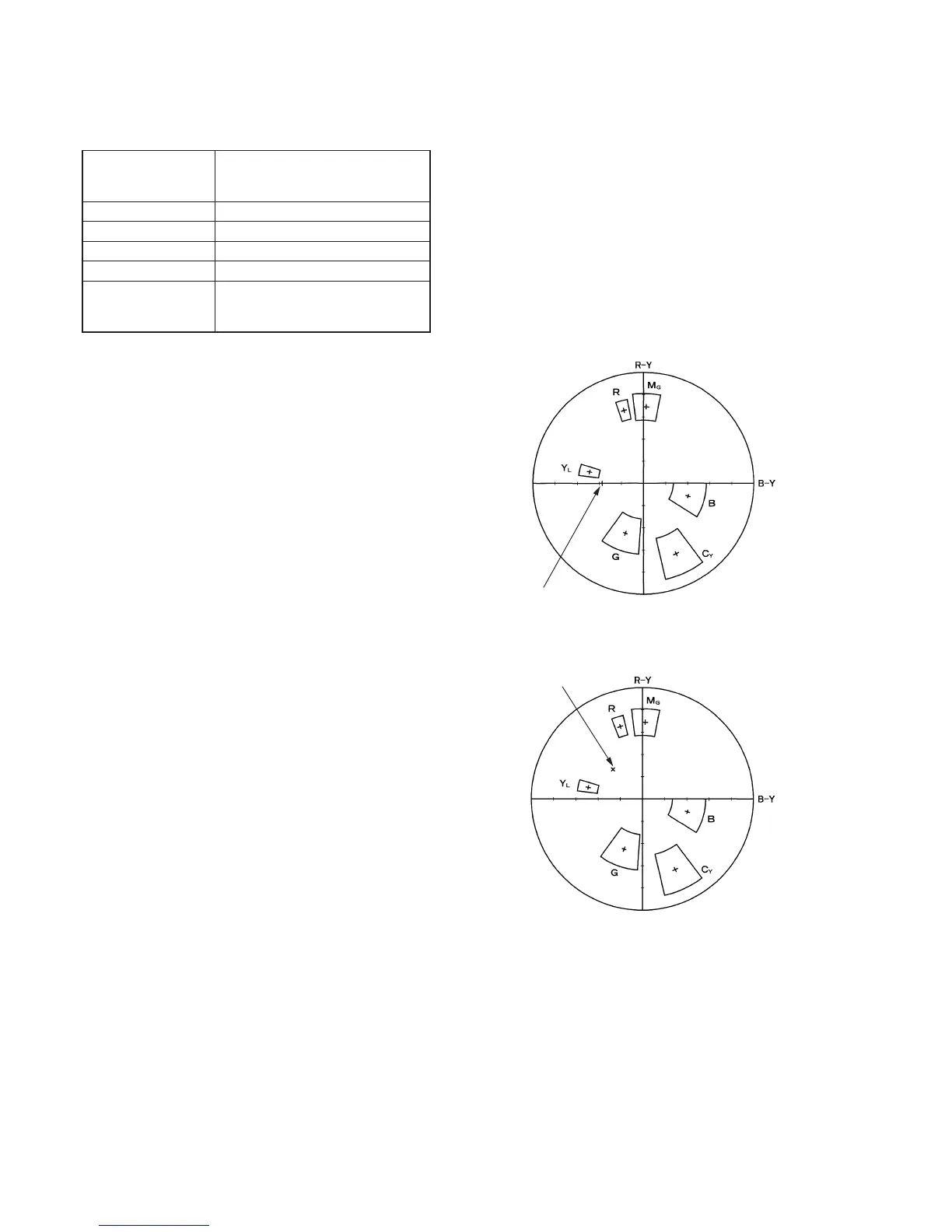

Burst position
For NTSC model
Burst position
For PAL model
Fig. 5-1-12.
8. Color Reproduction Adjustment
Adjust the color Separation matrix coefficient so that proper color
reproduction is produced.
Subject Color bar chart
(Color reproduction adjustment
frame)
Measurement Point Video output terminal
Measuring Instrument Vectorscope
Adjustment Page F
Adjustment Address 35, 37, 3C, 3D
Specified Value All color luminance points should
settle within each color reproduction
frame.
Note: NTSC model: DCR-PC9
PAL model: DCR-PC6E/PC9E
Switch setting:
1) POWER.................................................................. CAMERA
2) NIGHT SHOT ..................................................................OFF
3) DIGITAL ZOOM (Menu display) ...................................OFF
4) STEADY SHOT (Menu display) .....................................OFF
Adjusting method:
1) Select page: 0, address: 01, and set data: 01.
2) Select page: F, address: 8E, set data: 29, and press the PAUSE
button.
3) Select page: F, address: C0, set the following data and press
the PAUSE button.
37: NTSC model
B7: PAL model
4) Select page: 6, address: 01, set data: 3D, and press the PAUSE
button.
5) Adjust the GAIN and PHASE of the vectorscope, and adjust
the burst luminance point to the burst position of the color
reproduction frame.
6) Change the data of page: F, address: 35, 37, 3C and 3D, and
settle each color luminance point in each color reproduction
frame.
Note: Be sure to press the PAUSE button of the adjustment remote
commander before changing the addresses. If not, the new data
will not be written to the memory.
Processing after Completing Adjustments:
1) Select page: F, address: 8E, set data: 2E, and press the PAUSE
button.
2) Select page: 6, address: 01, set data: 00, and press the PAUSE
button.
3) Select page: 0, address: 01, and set data: 00.
