Sony DCR-PC6E - Mf Sensor), Ns-013 (Remote Commander Receiver) Printed Wiring Boards

DCR-PC6E/PC9/PC9E

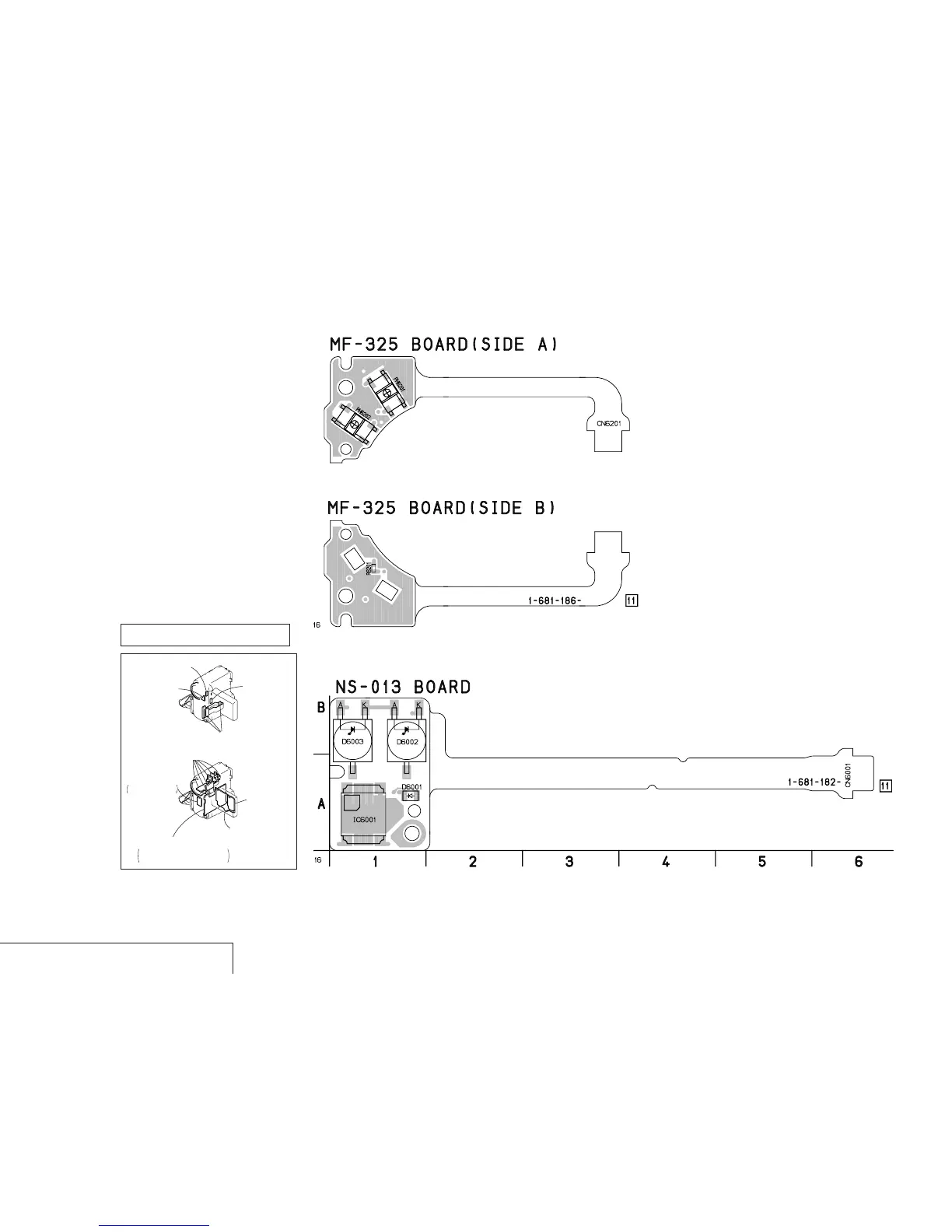

MF-325 (MF SENSOR), NS-013 (REMOTE COMMANDER RECEIVER) PRINTED WIRING BOARDS
— Ref. No. MF-325, NS-013 Boards; 20,000 Series —
For printed wiring board
• Refer to page 4-78 for parts location. (NS-013 board)
• MF-325 board consists of multiple layers. However, only
the sides (layers) A and B are shown.
• NS-013 board consists of multiple layers. However, only
the side (layer) A is shown.
There are a few cases that the part printed on
this diagram isn’t mounted in this model.
4-8
MF SENSOR
MF-325
REMOTE COMMANDER RECEIVER
NS-013
/
PD-148 (PC9/PC9E)
PD-148A (PC6E)
(LCD DRIVE, BACK LIGHT)
VC-265 (PC9/PC9E)
VC-265A (PC6E)
CAMERA PROCESS, MS INTERFACE,
DV PROCESS, VIDEO, AUDIO, SERVO,
HI/MECHA CONTROL, DC/DC CONVERTER
CF-085
(CCD IMAGER, PITCH/YAW SENSOR)
NS-013
REMOTE COMMANDER
RECEIVER
INVERTER
TRANSFORMER UNI
T
BJ-002 (PC9/PC9E)
BJ-002A (PC6E)
(JACK, BATTERY)
PR-037
(PANEL REVERSE)
PO-007
(PANEL OPEN)
MF-325
(MF SENSOR)
