Sony DCR-PC6E - Cabinet (R) Section-1

6-2

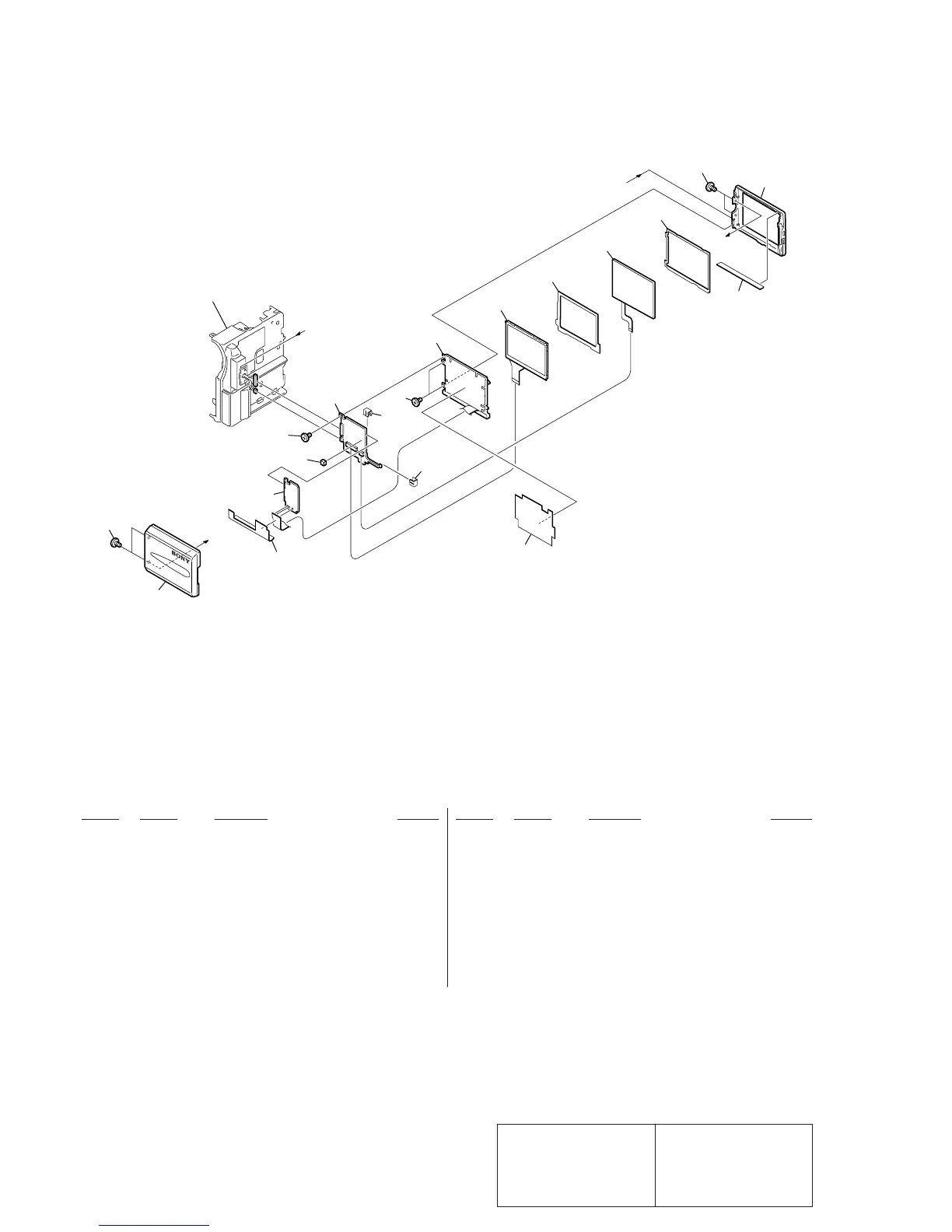

6-1-2. CABINET (R) SECTION-1
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
51 X-3951-686-1 CABINET (R) ASSY, LCD (PC9E)
51 X-3951-700-1 CABINET (R) ASSY, LCD (PC9)
51 X-3951-704-1 CABINET (R) ASSY, LCD (PC6E)
52 4-974-725-01 SCREW (M1.7X2.5), P2
53 3-068-897-01 SHEET, BL INSULATING
054 1-476-660-11 INVERTER TRANSFORMER UNIT (PC9/PC9E)
054 1-476-669-11 INVERTER TRANSFORMER UNIT (PC6E)
55 A-7074-871-A PD-148 BOARD, COMPLETE (PC9/PC9E)
55 A-7074-902-A PD-148A BOARD, COMPLETE (PC6E)
* 56 3-051-232-01 CLIP, PCB
57 3-060-704-01 SHEET (N), BL SHIELD
58 3-068-790-01 SPACER, PANEL
59 1-476-593-11 PANEL, (TP-1770)
60 3-068-789-01 SHEET, PANEL PROTECTION
61 X-3951-685-1 CABINET (L) ASSY, LCD
62 3-068-791-01 SPACER, PD
63 3-069-786-01 SHEET (A), LIGHT INTERCEPTION
LCD901 8-753-050-84 ACX311AKB-J (PC9/PC9E)
LCD901 8-753-050-86 ACX307AKB-J (PC6E)
0 ND901 1-517-931-11 TUBE, FLUORESCENT,COLD CATHODE
PD
-148
A
B
A
B
Cabinet (R) section-2
(See page 6-3)
51
52
52
62
52
53
54
55
58
59
52
61
63
60
56
56
57
ND901
LCD901
Note :
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Note :
Les composants identifiés par
une marque 0 sont critiques
pour la sécurité.
Ne les remplacer que par une
pièce portant le numéro spécifié.
