Sony DCR-PC6E - Picture Frame Setting

5-21

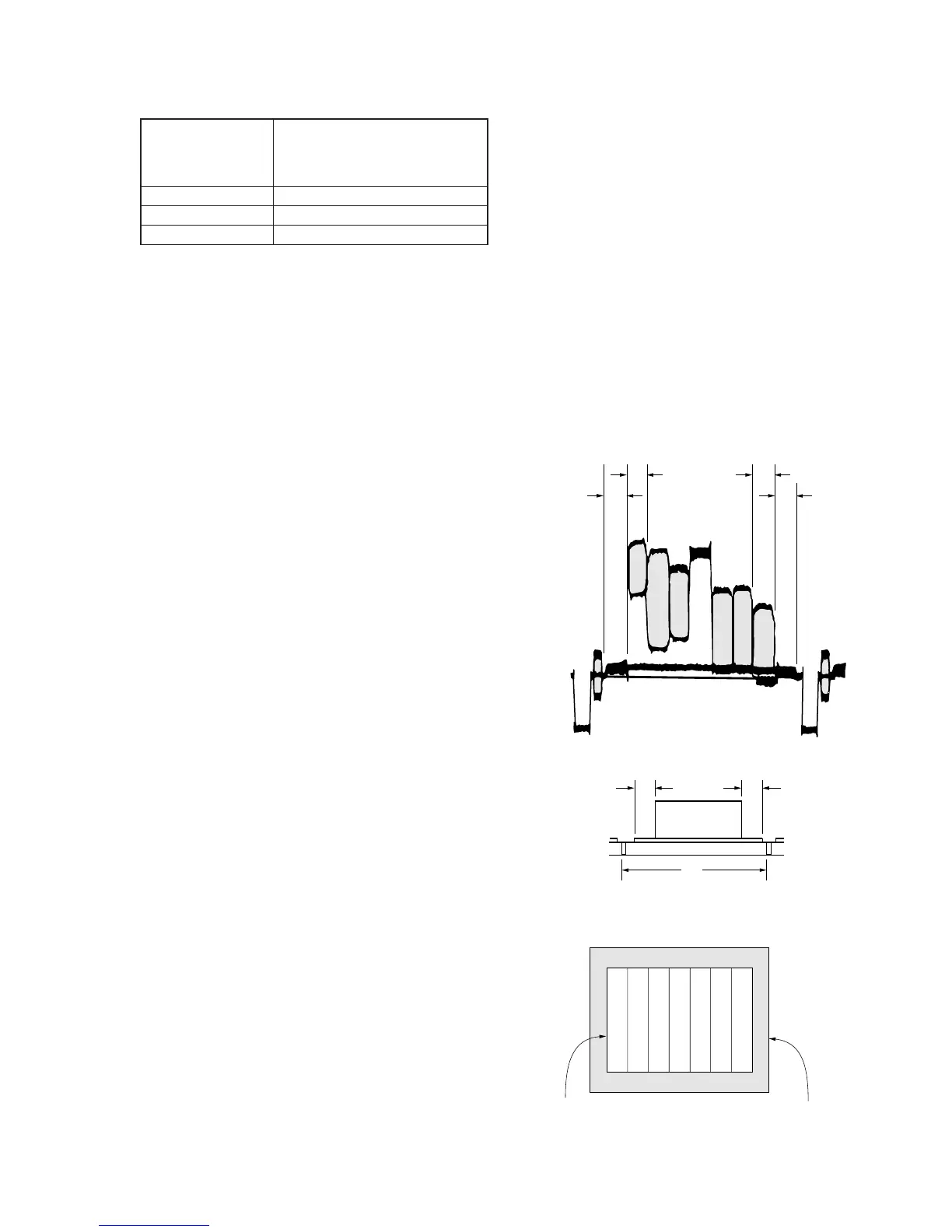

Check on the oscilloscope
1. Horizontal period
Fig. 5-1-9.
2. Vertical period
Fig. 5-1-10.
Check on the monitor TV (Underscanned mode)
Fig. 5-1-11.
A=B
C=D
A
BC
D
E=F
V
EF
Color bar chart picture frame
Monitor TV picture frame
7. Picture Frame Setting
Subject Color bar chart
(Color reproduction adjustment
frame)
(1.5m from the front of the lens)
Measurement Point Video output terminal
Measuring Instrument Oscilloscope and TV monitor
Specified Value A=B, C=D, E=F
Switch setting:
1) POWER ..................................................................CAMERA
2) NIGHT SHOT ..................................................................OFF
3) DIGITAL ZOOM (Menu display) ...................................OFF
4) STEADY SHOT (Menu display) .....................................OFF
Setting method:
1) Select page: 0, address: 01, and set data: 01.
2) Select page: F, address: 69, after noting down the data, set data:
00, and press the PAUSE button.
3) Adjust the zoom and the camera direction, and set to the
specified position.
4) Mark the position of the picture frame on the monitor display,
and adjust the picture frame to this position in following
adjustments using “Color reproduction adjustment frame”.
Processing after Completing Camera System Adjustments:
After completing the camera system adjustments, release the data
settings.
1) Select page: 0, address: 01, and set data: 01.
2) Select page: F, address: 69, set the data noted down at step 2),
and press the PAUSE button.
3) Select page: 0, address: 01, and set data: 00.
