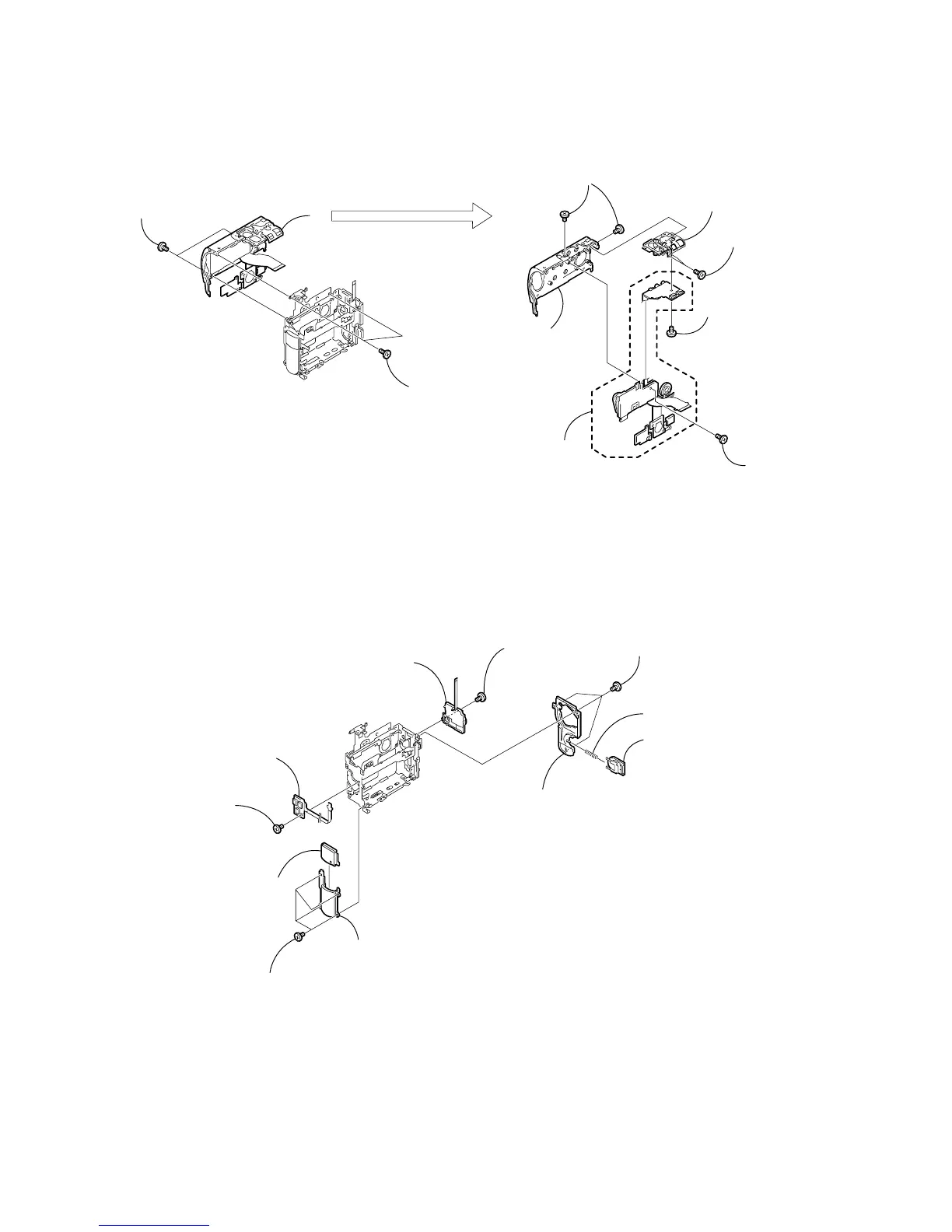

2-8. CONTROL SWITCH BLOCK (FK-1770)
1 Two screws
(M1.7
× 2.5)
1 Two screws
(M1.7
× 2.5)
2 Screw
(M1.7
× 2.5)
3
2
Two tapping
screws
(M1.7
× 4)
3 Two tapping
screws
(M1.7
× 4)
5 Tapping
screw
(M1.7
× 4
)
4 Shoe frame
6 Cabinet (L)
7 Control switch block
(FK-1770)
2-9. CONTROL SWITCH BLOCK (PS-1770), NS-013 BOARD
3 Three screws
(M1.7 × 2.5)
7 Four screws
(M1.7 × 2.5)
q; Screw
(M1.7 × 2.5)
qa NS-013 board
9 Front cover
8 NS window assembly
5 Screw
(M1.7 × 2.5)
1 Battery lock
2 Compression spring
4 Cabinet (rear)
6 Control switch block
(PS-1770)
