Sony DCR-PC6E - Cabinet (G) Assembly; Memory Stick Connector, Fp-347 Flexible Board (Pc9;Pc9 E)

2-5

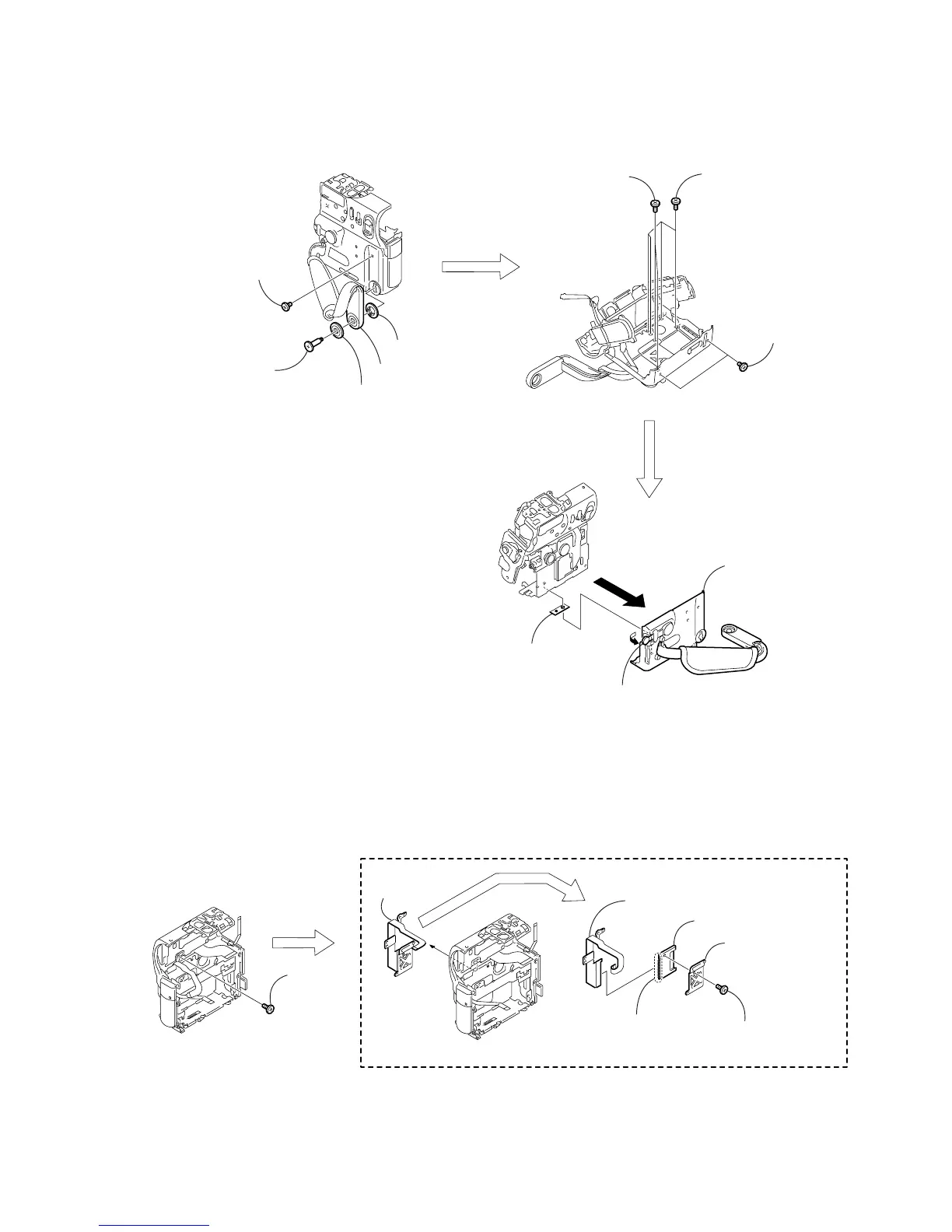

2-6. CABINET (G) ASSEMBLY
2-7. MEMORY STICK CONNECTOR, FP-347 FLEXIBLE BOARD
1 Screw
(M1.7 × 2.5)
3 Two screws
(M1.7 × 2.5)
1 Open the
jack cover (S).
2 Cabinet (G) assembl
y
3 Eject knob
2 Special head (step)
screw (M2.6)
3 Sleeve (front)
4 Hold grip assembly
5 Sleeve (rear)
2 Four tapping
screws (M1.7 × 4)
1 Two tapping
screws (M1.7 × 4)
1 Tapping
screw
(M1.7 × 4)
3 Tapping
screw
(M1.7 × 4)
4 MS connector
retainer
5 Remove
the solderings
6 Memory stick connector
7 FP-347 flexible board
2
(PC9/PC9E)
