Sony DCR-PC6E - Repair Parts List; Exploded Views; Overall Section

6-1
SECTION 6
REPAIR PARTS LIST
6-1. EXPLODED VIEWS
NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
• Abbreviation
CND: Canadian model
KR: Korea model
AUS: Australian model
CN: Chinese model
HK: Hong Kong model
JE: Tourist model
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque
0 sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifié.
DCR-PC6E/PC9/PC9E

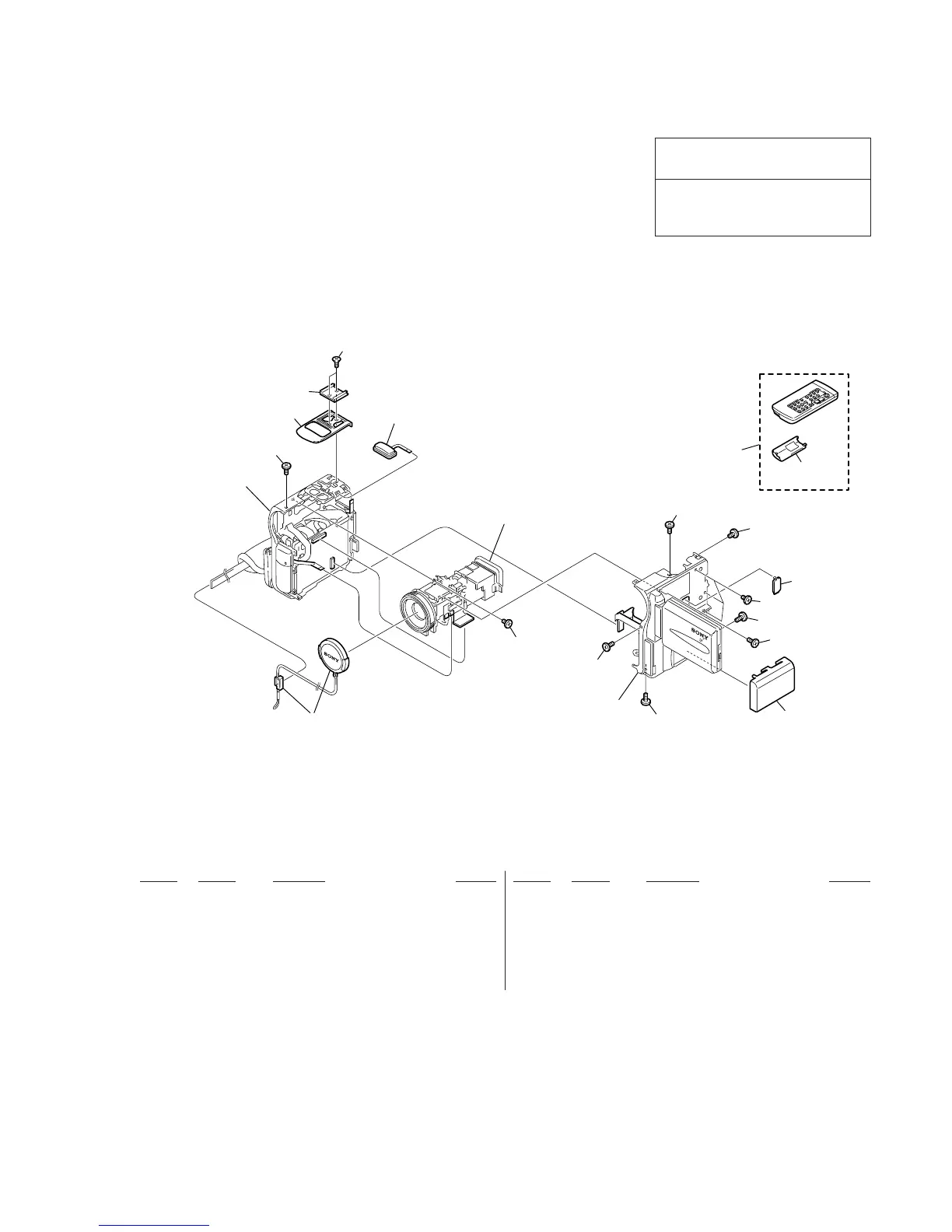

6-1-1. OVERALL SECTION
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
1 X-3951-693-1 CAP ASSY, LENS
2 3-989-735-31 SCREW (M1.7), LOCK ACE, P2
3 3-068-774-01 COVER, MICROPHONE
4 3-067-469-21 SHOE, ACCESSORY
5 3-067-187-11 ACE, PLATE SCREW (M2) LOCK
6 4-974-725-01 SCREW (M1.7X2.5), P2
7 3-068-784-01 LID, CPC
8 3-057-482-01 COVER, BATTERY
9 1-475-141-61 REMOTE COMMANDER (RMT-814)
10 3-742-854-01 LID, BATTERY CASE (FOR RMT-814)
MIC901 1-418-926-21 MICROPHONE BLOCK
VC
-265
MIC901
Cabinet (L) section
(See page 6-5)
Lens - EVF section
(See page 6-4)
Cabinet (R) section-1, 2
(See page 6-2, 6-3)
1
2
6
3
4
5
6
2
2
6
9
10
2
2
7
8
2
