General information about
fuses
If a fuse needs to be replaced:
●
Disconnect the system by pulling out the
battery male connector
●
Only use fuses that are identical in size and
type
●
The correct fuse values can be found in the
truck-specific circuitry documents

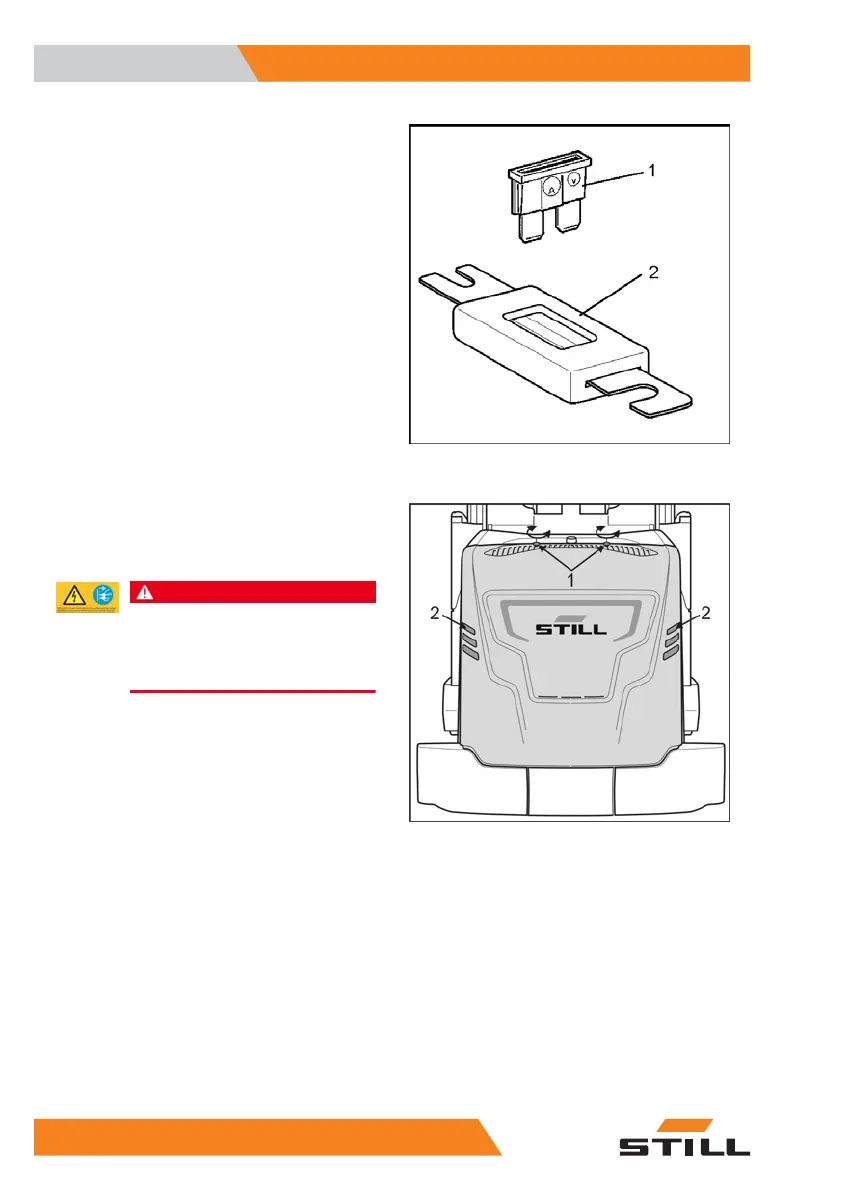

(1) Control current fuse
(2) Primary current fuse
Removing the control com-
partment hood
DANGER
Risk of electric shock
Before the control compartment hood is
removed, the battery male connector
must be disconnected.
The fuses are installed in the control compart-
ment.
To gain access to the control compartment,
the hood must be removed.
– Open the two screw plugs (1).
– Hold the hood at the ventilation openings
(2), lift it off and then place it to one side.
The hood is very lightweight and can there-
fore be removed by hand without using any
tools.
Proceed in the reverse sequence to fit the
hood. Place the hood carefully in its guide and
latch and tighten the plastic screws until they
are hand-tight only.
