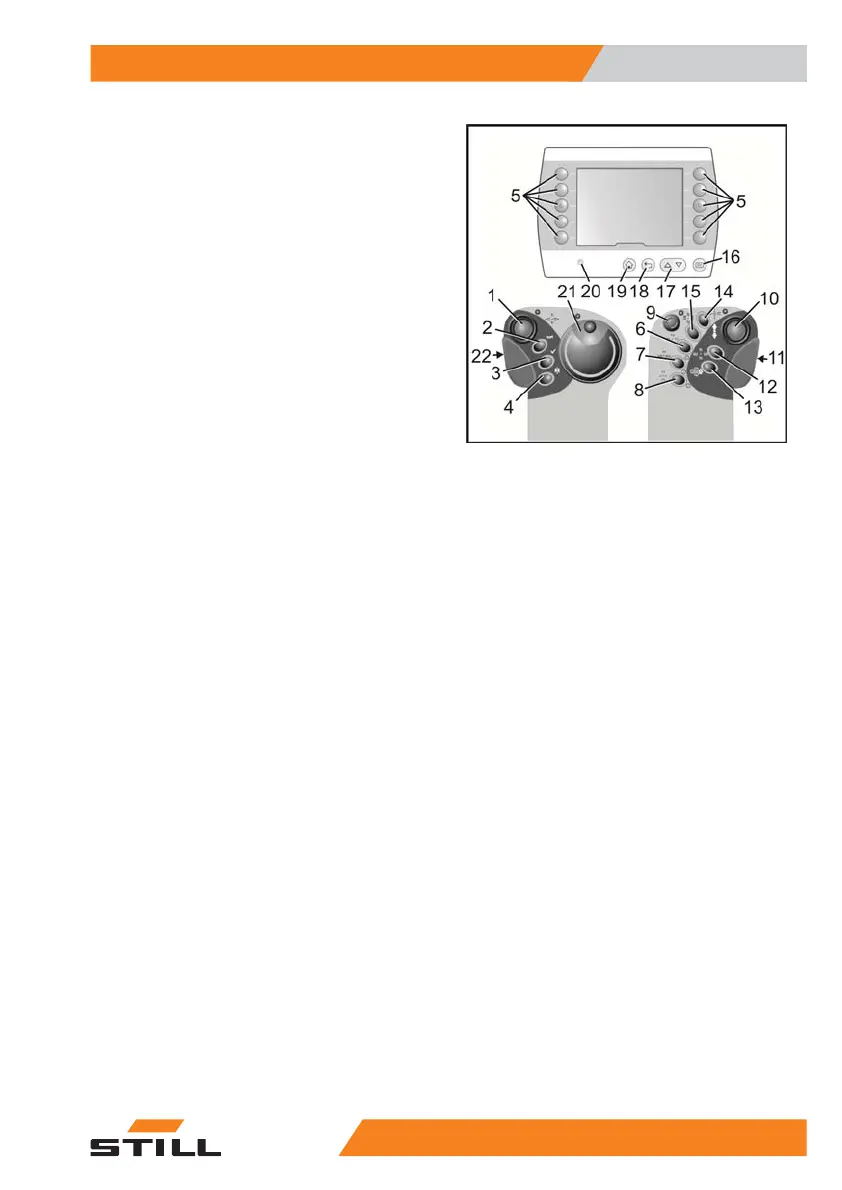

Split operating panel
(1) Operating lever for hydraulics (in conjunc-
tion with the selection keys)
(2) Horn
(3) Enable button (for example, as a brake re-
lease button in an automatic braking system,
as an override for the intermediate lift cut out
and to acknowledge errors that can be ac-
knowledged)*. Flashes red when it needs to
be pressed.
(4) Manual-automatic two-way switch for in-
ductive guidance*
(5) Selection keys for
favourites
(6), (7), (8) Selection keys for additional hy-
draulic functions*
(9) Emergency off switch
(10) Operating lever for driving
(11) Sensor surface for two-hand operation of
the main lift or for shifting in the aisle
(12) Selection key for lifting or lowering the
auxiliary lift or for swivelling the forks
(13) Reserved for special functions
(14) Selection key for automatic functions, e.g.
fork cycle
(15) Selection key for lifting or lowering the
cab lift and auxiliary lift at the same time. Hold
this button while pulling or pushing the operat-
ing lever (1). The same button is used to se-
lect synchronously swivelling the forks 180° to
the left or right. Hold this button while simulta-
neously actuating the operating lever (1) to the
left or right.
(16) Selection of a menu display
(17) Selection within a menu
(18) Go back one step in the menu or confirm
a selection
(19) Back to the main menu
(20) Light sensor for automatically illuminating
the display lighting
(21) Steering knob or steering wheel
Special equipment
7
Split operating panel
1135231 804 2502 EN - 04/2020
