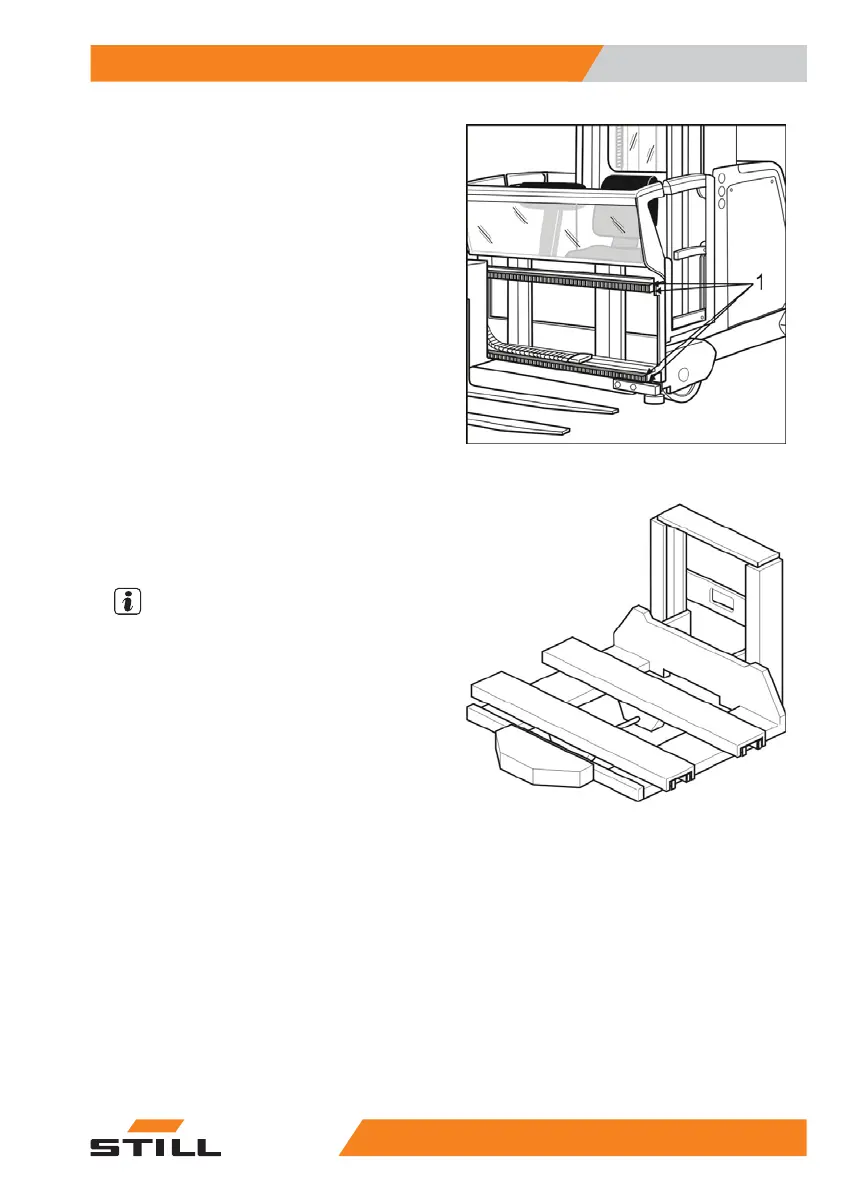

Guard plate on rack rail
When goods are transported in sacks or bags,
they often protrude from the outer edge of the
pallet or load carrier.
There is therefore a danger of these sacks or
bags being damaged by the sharp edges of
the rack rail, e.g. when the sideshift is exten-
ded sideways. The goods may be lost or de-
stroyed as a result.
The guard plates on the rack rails minimise
this danger by covering the sharp edges of the
rack rail at the top and bottom.
Telescopic table
Description
NOTE
To ensure proper use, the information in the
enclosed manufacturer's documents must be
observed.
The table unit is made up of two telescopic
fork arms, connected by a mechanical cou-
pling, and possibly a third fork, which is con-
nected via a universal drive shaft and an elec-
tromagnet disc coupling.
Each fork consists of a top table, middle table
and lower table as well as a drive gearbox.
The extending table profiles have a width of
180 mm and a height of only 60 mm (top and
middle part). The drive of the top and middle
profile is powered via a chain system.
WThe telescopic table has a high stability due
to it being maintenance-free and having very
large guide rollers and side cable guides. The
top table is driven to the middle table via 2
chains.
The telescopic table is a precise machine part.
The following information must therefore be
considered:
Special equipment
7
Guard plate on rack rail
1495231 804 2502 EN - 04/2020
