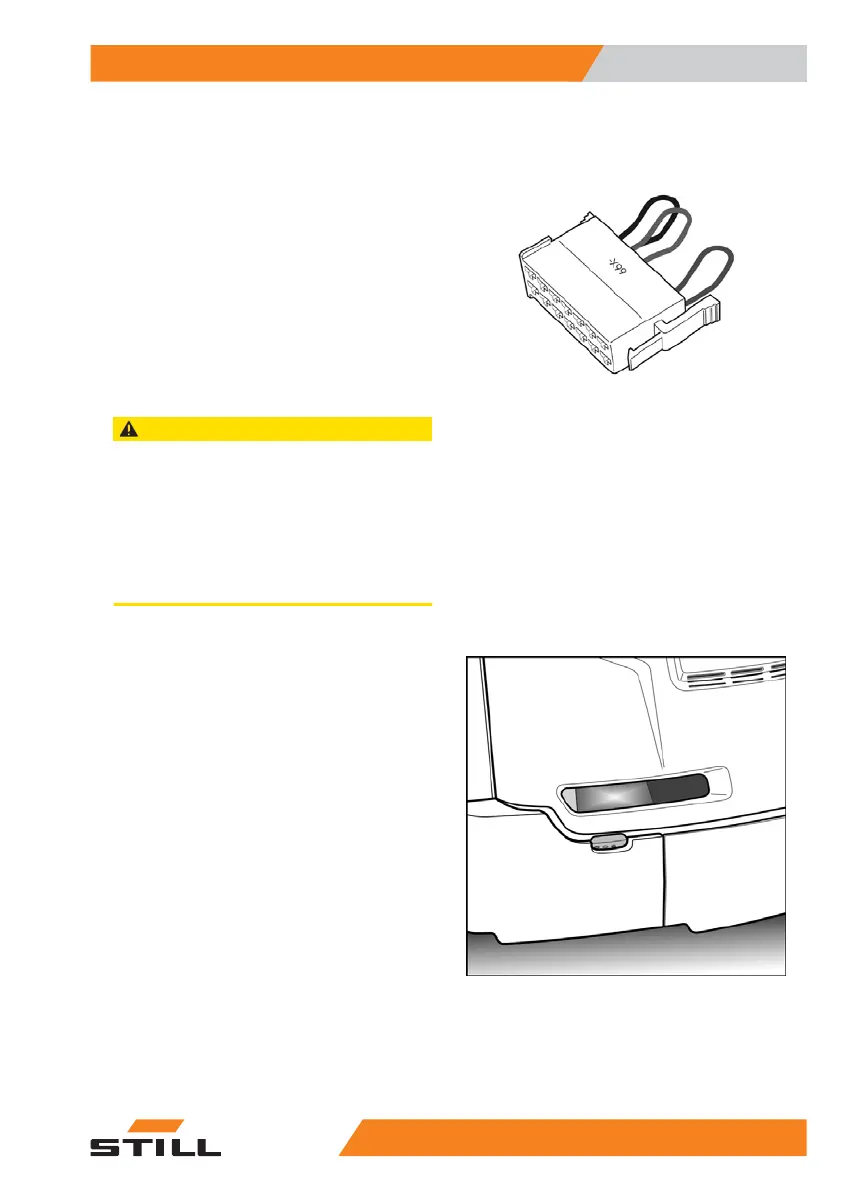

Interface X99
The plug X99 represents the interface be-
tween the truck control unit and the personal
protection system. All signals defined by us
are allocated in this plug. The scope of deliv-
ery of a very narrow aisle truck includes the
bridging plug X99
, which can be fitted instead
of the MPSE connector plug if an internal de-
fect in the MPSE controller has caused failure
of the industrial truck.
The interface X99 is installed on man-down
trucks in the vicinity of the operating panel and
on man-up trucks in the control compartment
CAUTION
Risk of accident
When a bridging plug is fitted, all safety functions of
the MPSE are deactivated and the maximum driving
speed of the industrial truck limited to 2.5 km/h.
Therefore, the truck may only be operated with a
bridging plug during retrieval operations. This bridg-
ing plug must be kept locked away by the warehouse
manager responsible and its use is permitted only by
the instruction of this warehouse manager.
Safety laser scanner
The laser scanners that are used in personal
protection systems are highly sensitive opto-
electronic sensors. They are well protected in
the contour of the industrial truck.
When the load-side scanner is covered by the
driver's cab when in the lowered position. For
this reason, the industrial truck drives at a
maximum speed of 2.5 km/h when the driver's
cab is lowered. Personal protection is ensured
by the low speed and the attention of the oper-
ator.
The drive-side scanner (picture) is located be-
hind the control compartment hood. The scan-
ner can monitor the roadway through a wide
slot. The diagnostic LEDs are visible through
the smaller, lower opening.
Special equipment
7
Safety laser scanner
1335231 804 2502 EN - 04/2020
