Fork arms, adjustable
The standard design features forged fork arms
that are manually adjustable. This allows dif-
ferent pallets and load supports with suitable
dimensions to be picked up.
As an option, these industrial trucks can also
be equipped with hydraulically adjustable fork
arms. The distance between the fork arms
must be sufficient so that the load cannot fall
and that there is constant support centrally be-
low the load centre of gravity. Adjust the fork
arms accordingly and lock in position.

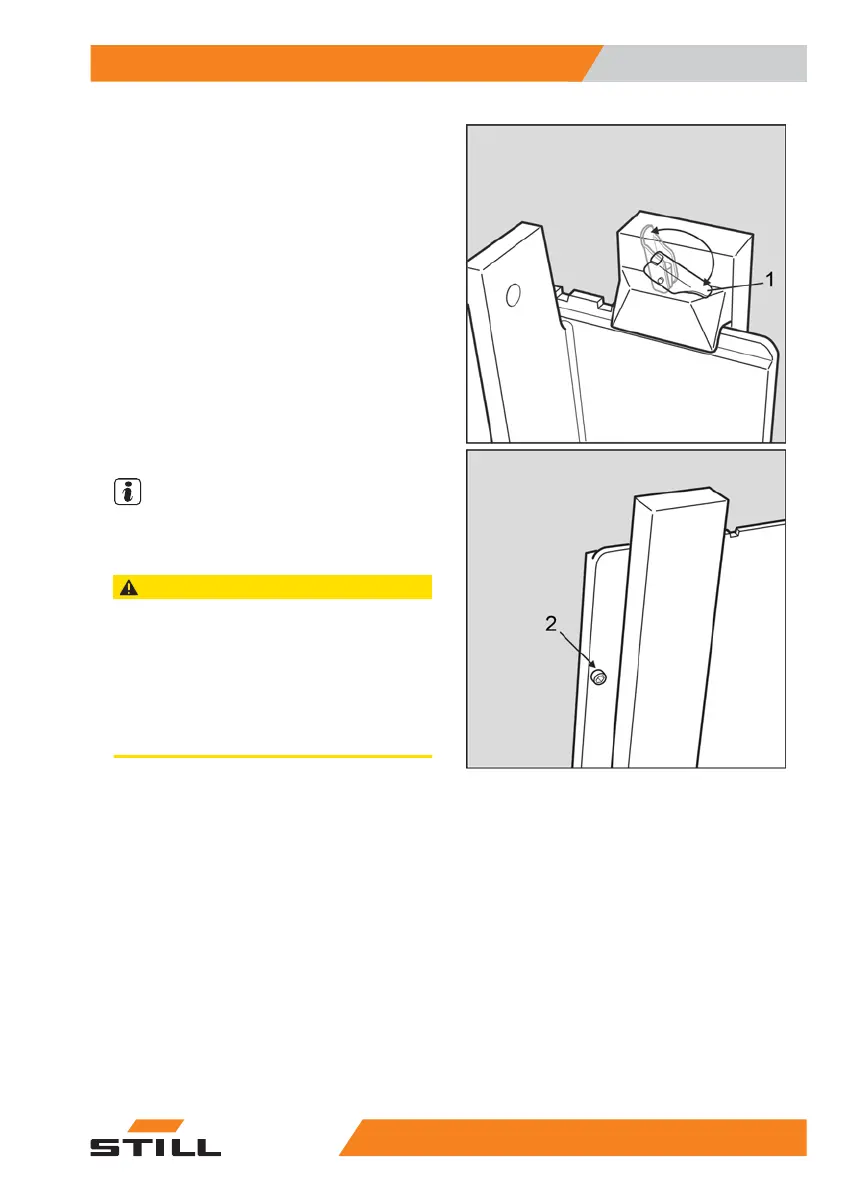

– Lift the locking lever (1).
– Move the fork arms to the desired position
and allow the locking lever to engage again.
NOTE
If the locking lever is engaged, it is no longer
possible to move the fork arms laterally.
CAUTION
Risk of accident
– Use the industrial truck only if the side fork arm
locking device (2) is present and in perfect work-
ing order. Fork arms could slide off the fork car-
riage and fall down.
– Use only fork arms that are designed and ap-
proved for this industrial truck. See the order for
specifications.
Operation
4
Load pick up
815231 804 2502 EN - 04/2020
