Adjusting the position of the operat-
ing panel
WARNING
The clamping device that is released for the settings
described below must be retightened before starting
work.
In order to be able to optimally adapt the oper-
ating panel to driver requirements, the panel
can be adjusted by height, by tilting the con-
sole and by tilting the operating panel. The po-
sition of the clamp lever can be changed by
means of an integrated latching mechanism.

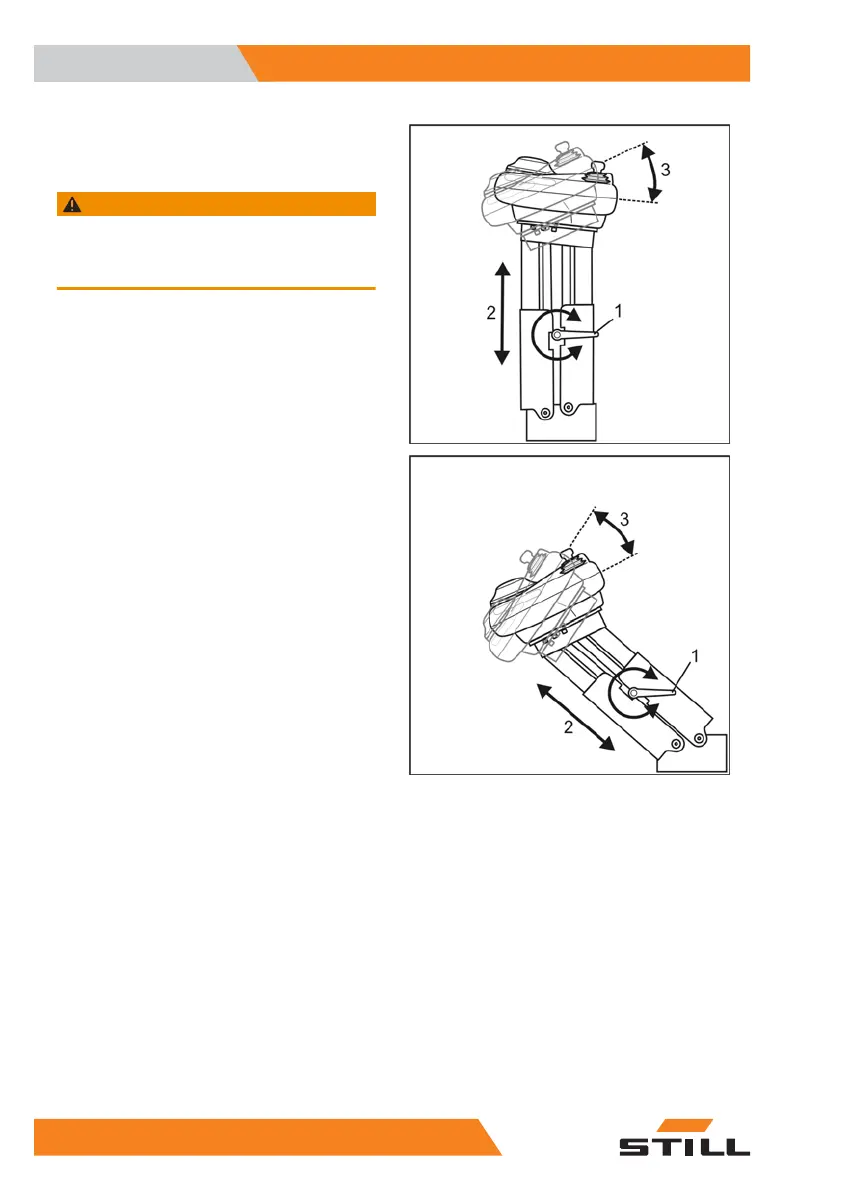

To do this, pull out the handle of the clamp
lever (1) on its axle, turn it to the required po-
sition and allow it to engage again.
Adjustment
Release the clamp lever (1) by turning it to the
left. Keep hold of the operating panel with the
other hand while doing this. If the clamping
device comes loose, move the operating panel
into the required position with both hands and
hold it there. The setting is continuously varia-
ble. Retighten the clamp lever.
– Adjust height (2).
– Adjust tilt (3).
Operation
4
Operating devices
64 5231 804 2502 EN - 04/2020
