Mirror and lighting module
If an industrial truck is equipped with this mod-
ule, additional operating instructions are sup-
plied ex works. These instructions describe in
detail how to assemble and configure the
module.
This module can be supplied in various ver-
sions and combinations:
●
As LED workplace lighting for illuminating
the racking next to the industrial truck
●
With an integrated fan motor for circulating
air in the driver's compartment
●
With an integrated parabolic mirror as a
rear-view mirror
CAUTION
Risk of accident
The curvature of the mirror surface significantly in-
creases the field of vision. As a result, objects ap-
pear further away than they actually are.
Adjusting the mirror
The mirror can be moved into the required po-
sition by pushing on the corresponding places.
CAUTION
Risk of damage to property
The adjustment range is mechanically limited. Push-
ing too hard on the mirror glass can cause the glass
to crack.
Switching on the fan
Press the corresponding push button on the
operating panel.
NOTE

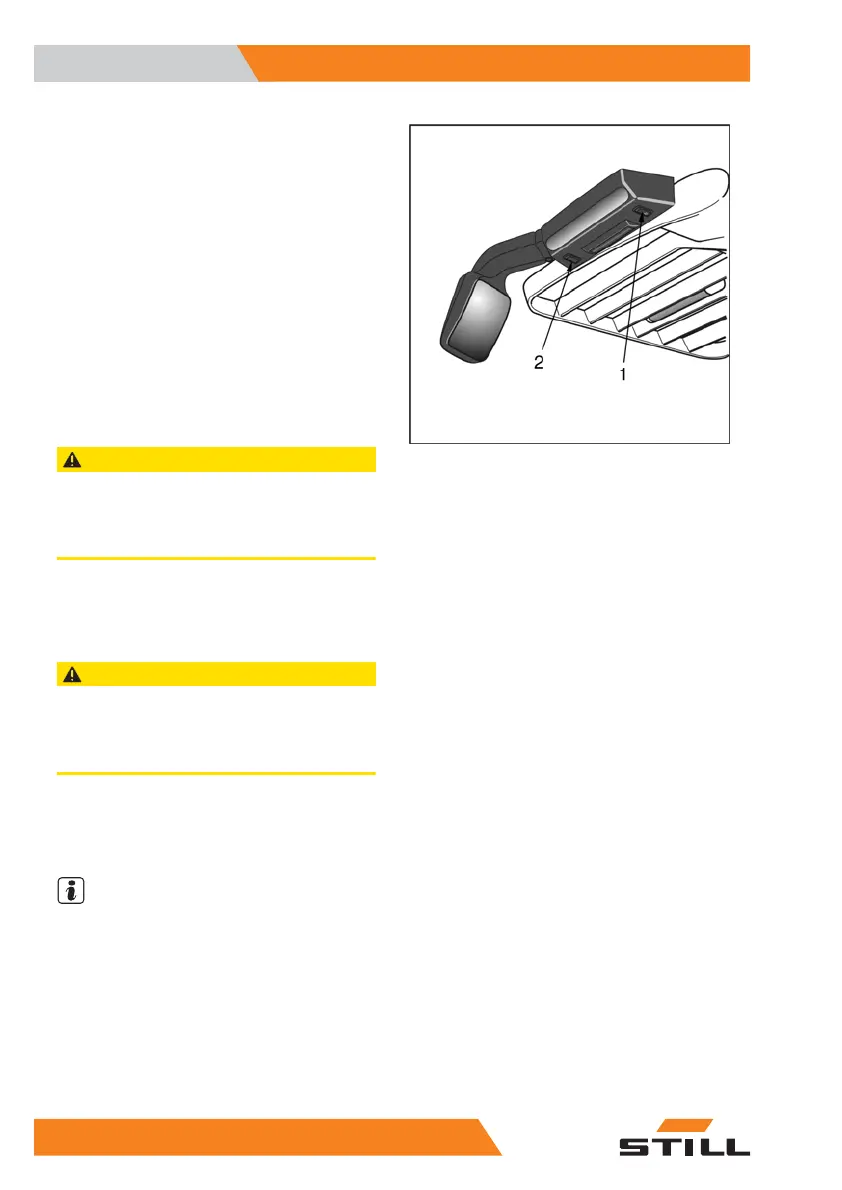

Switch to fan level 2 using switch (1). A blind
plugs (2) is fitted on the other side of the fan.
Switching on workplace lighting
Press the corresponding push button on the
operating panel.
Special equipment
7
Mirror and lighting module
136 5231 804 2502 EN - 04/2020
