Operating the display
NOTE
To emphasise the functionality, the following
images have been simplified.
Function
Operating statuses and information relevant
for operation are shown on the display. Using
the display, it may be possible to switch func-
tions on and off or to switch between defined
statuses.

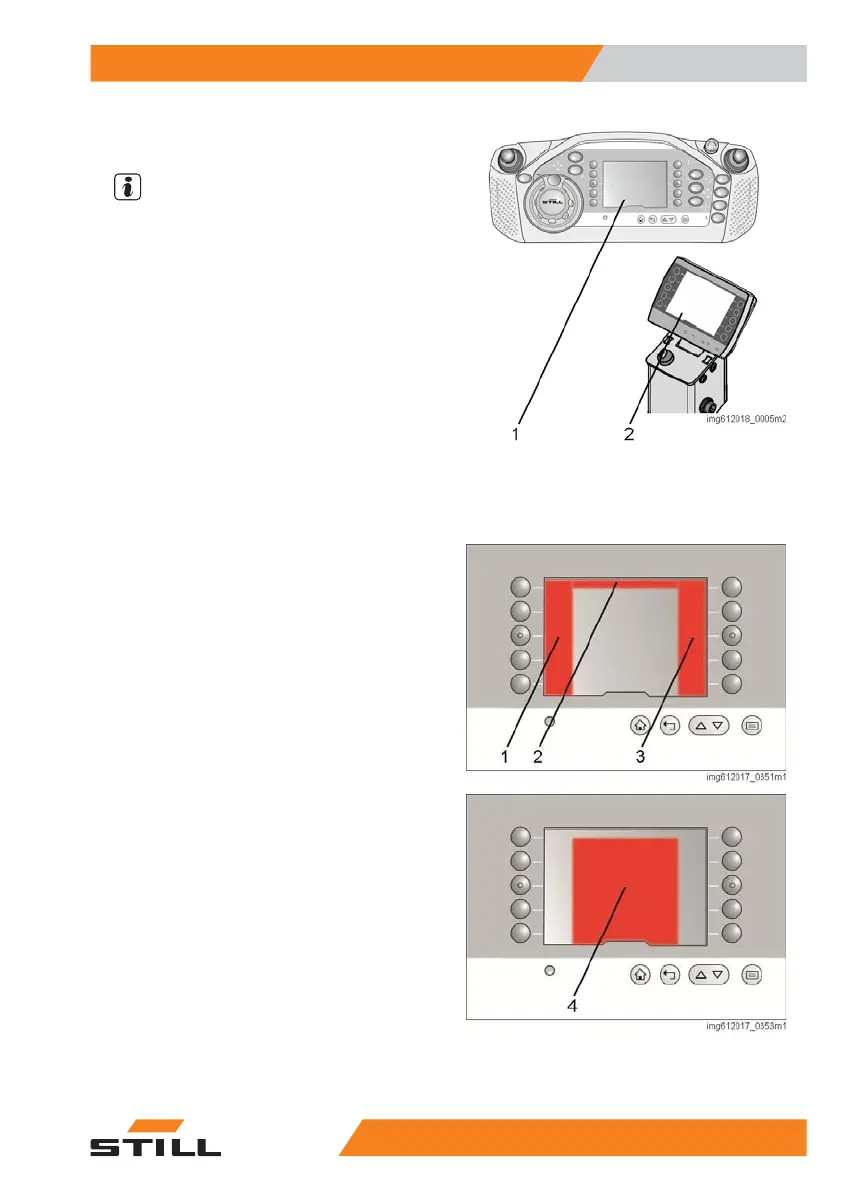

The display is presented in colour and is
graphical. The content is divided into four
parts:
●
Left-hand menu bar (1)
●
Right-hand menu bar (3)
●
Top status bar (2)
●
Central information area (4)
Display in the operating panel
Display in the case of split operation
1
2
Overview
3
Operating the display
335231 804 2502 EN - 04/2020
