Still MX-X - Load Capacity Diagram

Load capacity diagram
Depending on the job, a load capacity diagram
may be generated and mounted in the cab. To
ensure that the stability of the industrial truck
is not jeopardised in any way, the load capaci-
ty diagram and the load capacity restrictions
specified on this diagram for certain applica-
tion conditions must be observed.
This also applies to the increasing weight of
the commissioned goods.

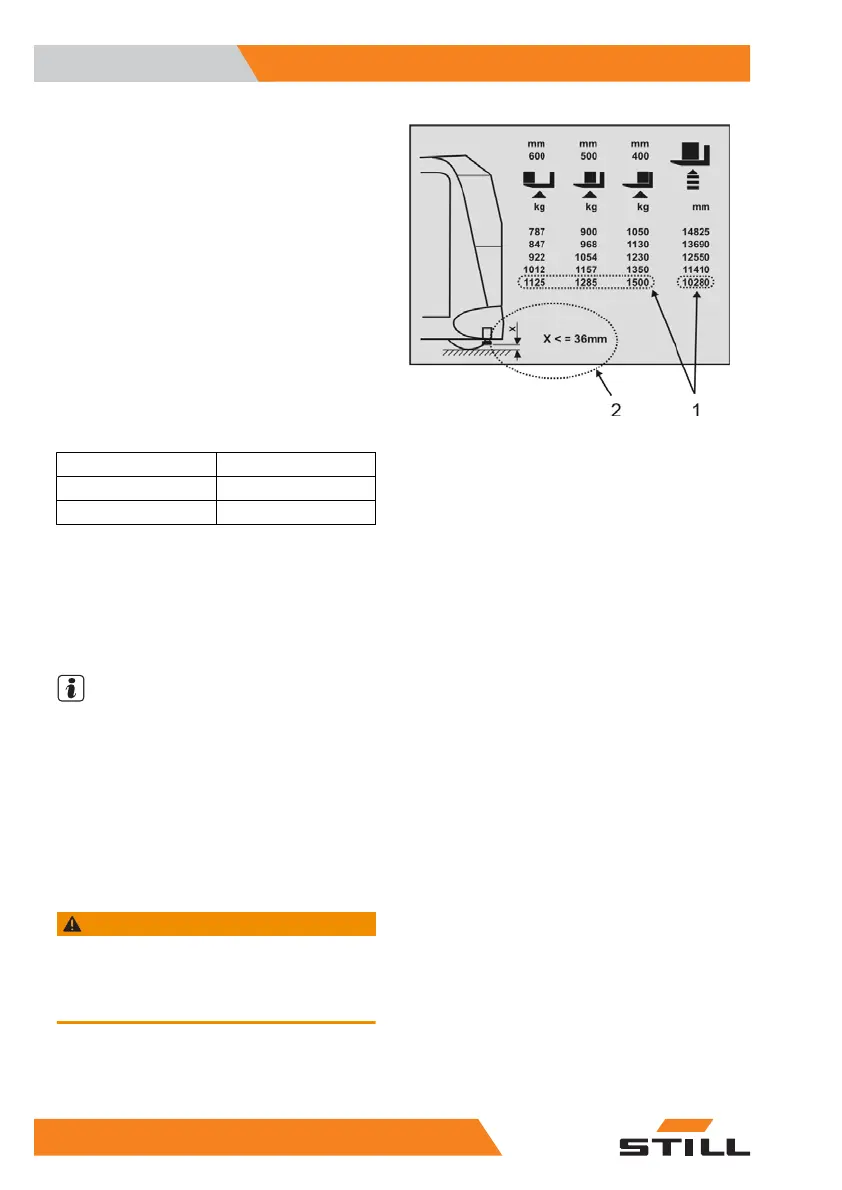

Example for an industrial truck with a lift height
of 10280 mm (1)
Distance between the load centre of gravity
and the fork back
400 mm Max. load: 1500 kg
500 mm Max. load: 1285 kg
600 mm Max. load: 1125 kg
The load capacity of the truck decreases as
the lift height increases and the load centre of
gravity distance grows larger.
The data for the current situation must be tak-
en from the load capacity diagram.
NOTE
This industrial truck can also be equipped with
the
intelligent load capacity diagram as an
option. Descriptions of this option can be
found in the chapter entitled
Special equip-
ment
.
The support screws may only be adjusted by
authorised service personnel. The setting di-
mension X on the load capacity diagram must
be observed.
WARNING
Risk of accident
The specified setting dimension X (2) for the support
screws must be checked every 6 months by author-
ised service personnel and adjusted if necessary

Operation
4
Load pick up
