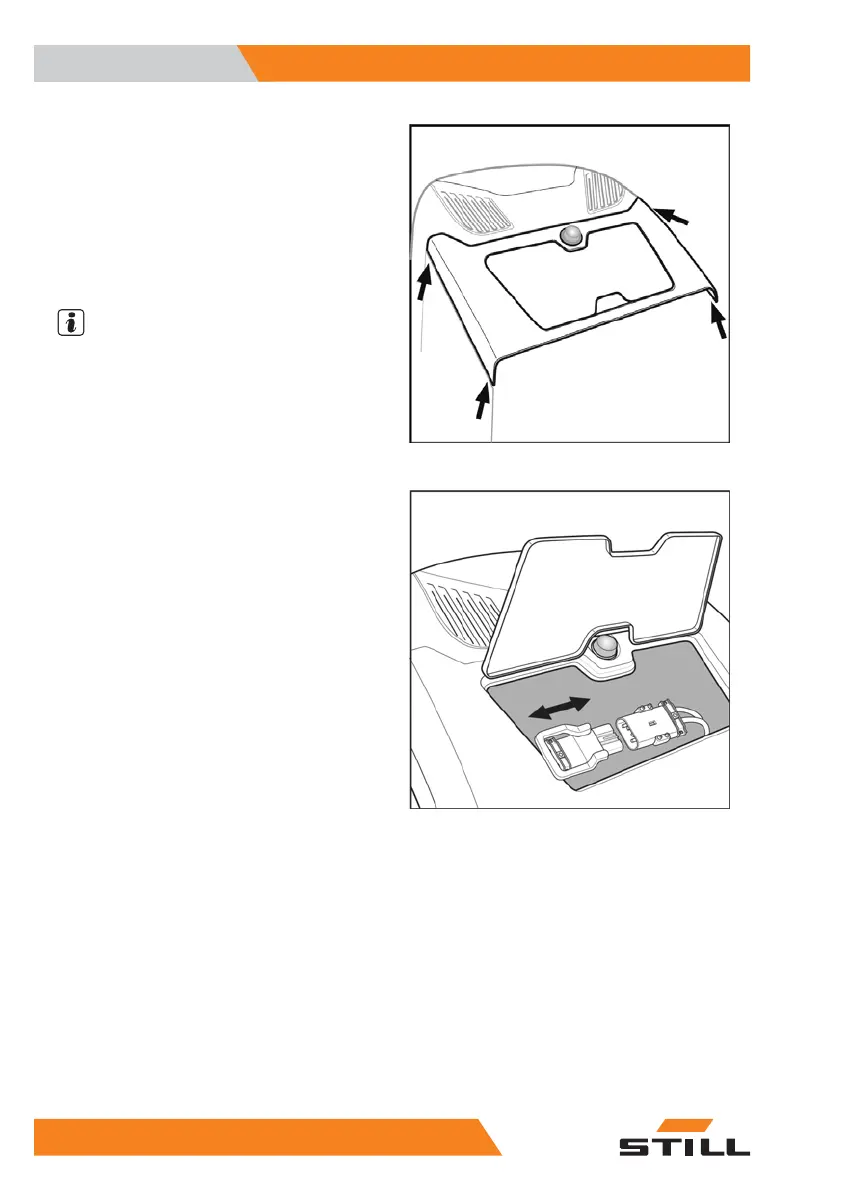

Battery compartment cover,
Service flap
The battery compartment cover covers the en-
tire battery compartment. The cover is held by
four clamping holders.
The cover can be removed by applying light
pressure from underneath near the corners.
NOTE
As an option, the industrial truck can be equip-
ped with lateral battery compartment doors.
Service flap
All that is needed to operate the battery male
connector is to open the service flap.
Installing the battery
The battery must fill the installation space with
just a few millimetres of play. This will ensure
that the battery does not slip or tip over during
travel and that the function of the battery lock
is guaranteed. If a lighter battery is used tem-
porarily, you must compensate for the weight
difference using a fixed ballast, and the size
difference must be equalised using shims. In
this case, the specifications on the nameplate
of the industrial truck must be changed or
Operation
4
General commissioning
54 5231 804 2502 EN - 04/2020
