Delivery in units
Specified weights apply only to the standard
design. Determine or request the weights of
special designs.

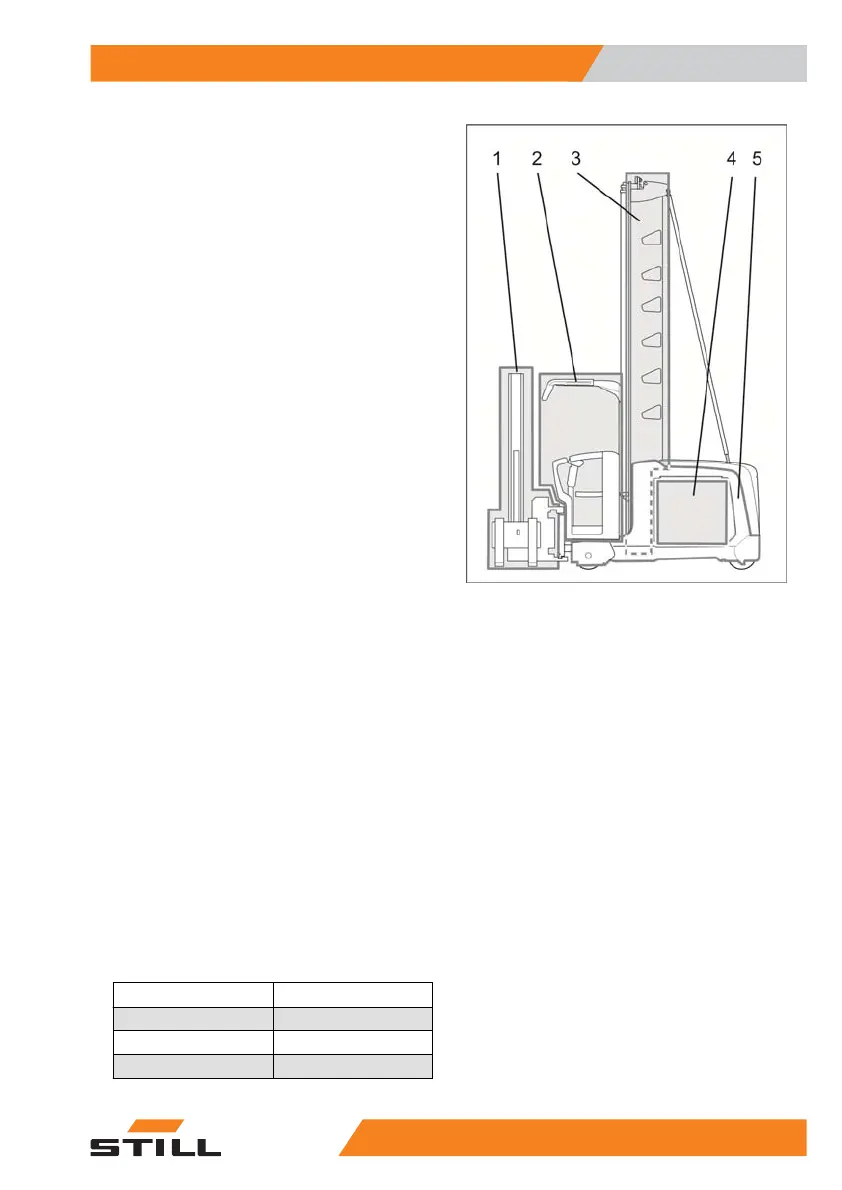

Narrow aisle trucks can be disassembled into
the following units: attachment, driver's cab in-
cluding carriage, lift mast, battery and chassis.
When assemblies comprised of multiple com-
plete units are transported, the weights of the
individual units must be added together so
that a suitable hoist can be selected. When
hooking on the units, ensure that the overall
centre of gravity can be moved relative to the
individual units.
Weight of the attachment
A standard attachment (europallet) with a tur-
ret head weighs approximately 800 kg.
If another attachment is fitted, determine the
weight of the additional attachment, e.g. by
weighing the attachment.
Weight of the driver's cab
A standard driver's cab including carriage
weighs approximately 660 kg. Take into ac-
count the additional weight of attachments, for
example the weight of order-picking platforms.
A standard cold store cab including carriage
weighs approximately 800 kg.
If another driver's cab is fitted, determine the
weight of the additional driver's cab, e.g. by
weighing the driver's cab.
Weight of the lift mast
The weight of the lift mast depends on its de-
sign and overall height. The following table
shows the expected maximum weights de-
pending on the overall height.
Overall mast height Weight
<3 m <1600 kg
<4 m <2,300 kg
<5 m <2,900 kg
Attachment
Driver's cab incl. carriage
Lift mast
Battery
Chassis
1
2
3
4
5
Operation
4
General commissioning
455231 804 2502 EN - 04/2020
