Towing with non-operational steering
WARNING
Emergency steering movements may be carried out
only when the truck is at a standstill.
Make sure that the industrial truck is switched off.
These industrial trucks are equipped with a
mechanical emergency steering device. A
shaft with a pinion gear is provided for this
purpose.
– Perform the required steering movement
using a socket wrench or box-end wrench.
– Before the industrial truck is recommis-
sioned, the pinion shaft must be fixed back
in its original position.

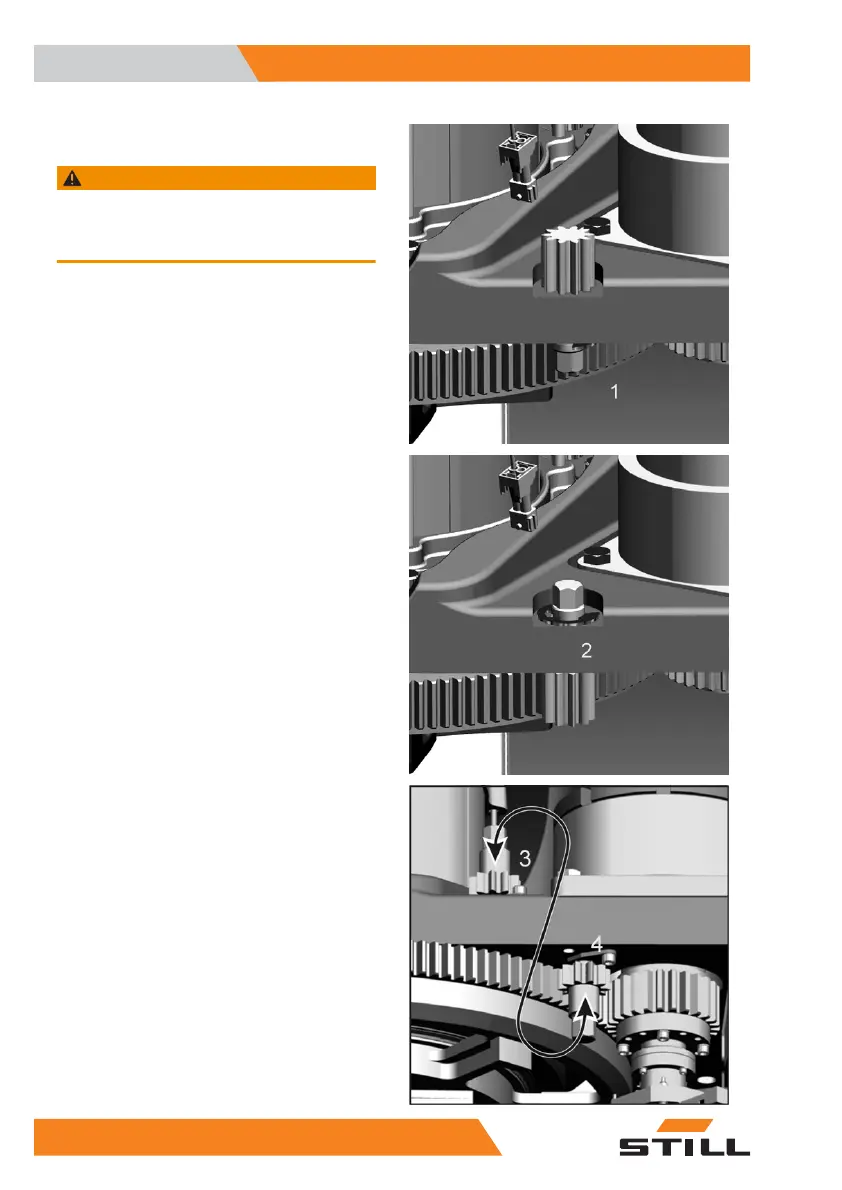

Activating the emergency steering device
48-V version
– Using a suitable tool, e.g. a screwdriver, re-
move the lock washer (1). When doing so,
make sure that the lock washer does not
jump off.
– Insert the pinion shaft into the same bore
(2) from below. Insert the lock washer from
above into the shaft groove.
80-V version
– Remove the screw and the holding plate
(3).
– Insert the pinion shaft into the bore provided
from below and hold it in position with the
holding plate and screw (4).
Operation
4
Emergency operation
88 5231 804 2502 EN - 04/2020
