Major Subassemblies 8-13
8

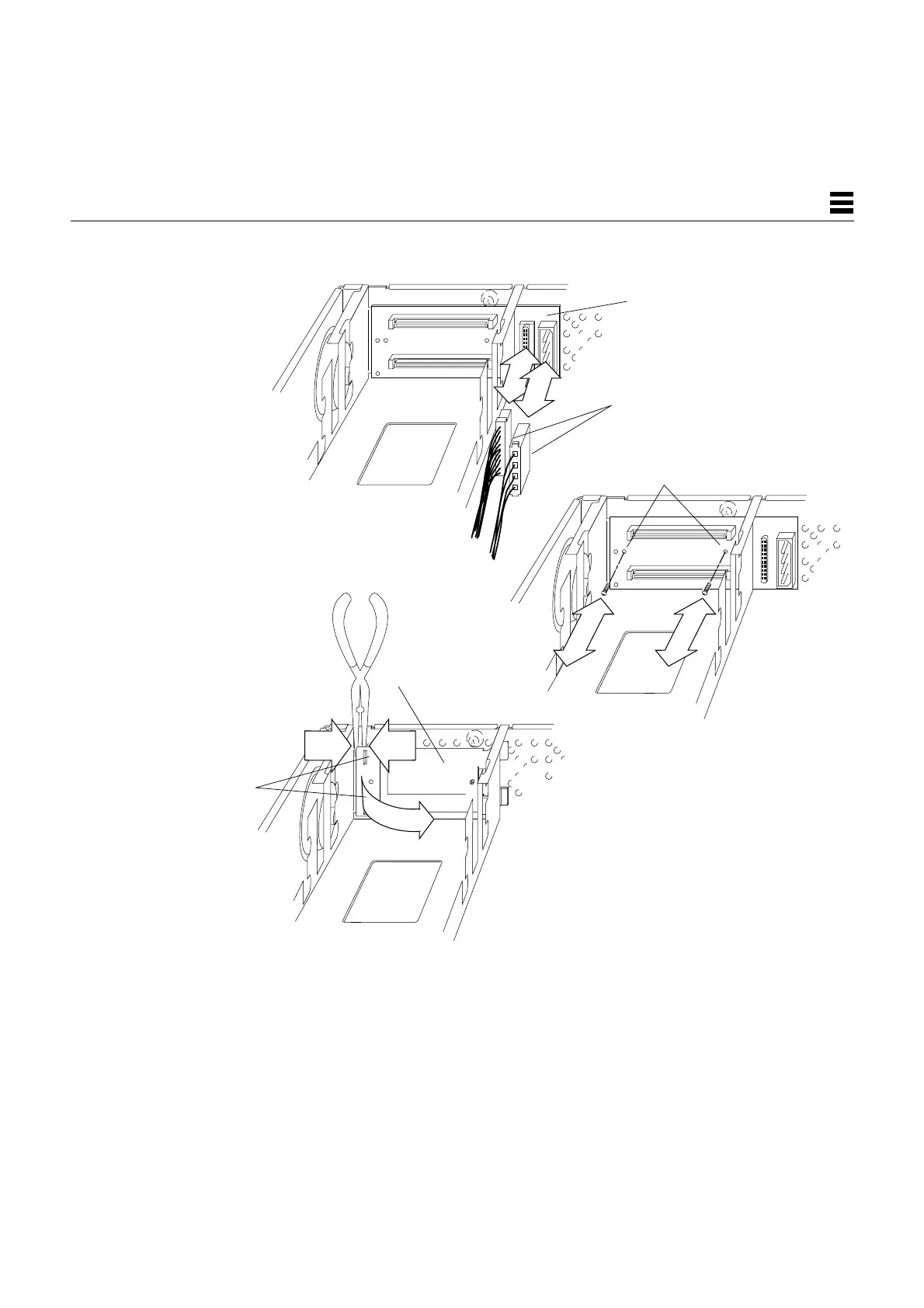

Figure 8-8 Removing the SCSI Backplane
5. Remove the two Phillips screws that secure the SCSI backplane to its
plastic mounting bracket.
See Figure 8-8. Remove the SCSI backplane from the system unit chassis.
Disconnect SCSI data
SCSI backplane
SCSI backplane
mounting bracket
Squeeze upper
Remove SCSI
and DC power cables.
backplane screws.
and lower tabs
to disengage
mounting bracket.
