Chapter 8 LED Status Indicators 145
About Power Supply LEDs

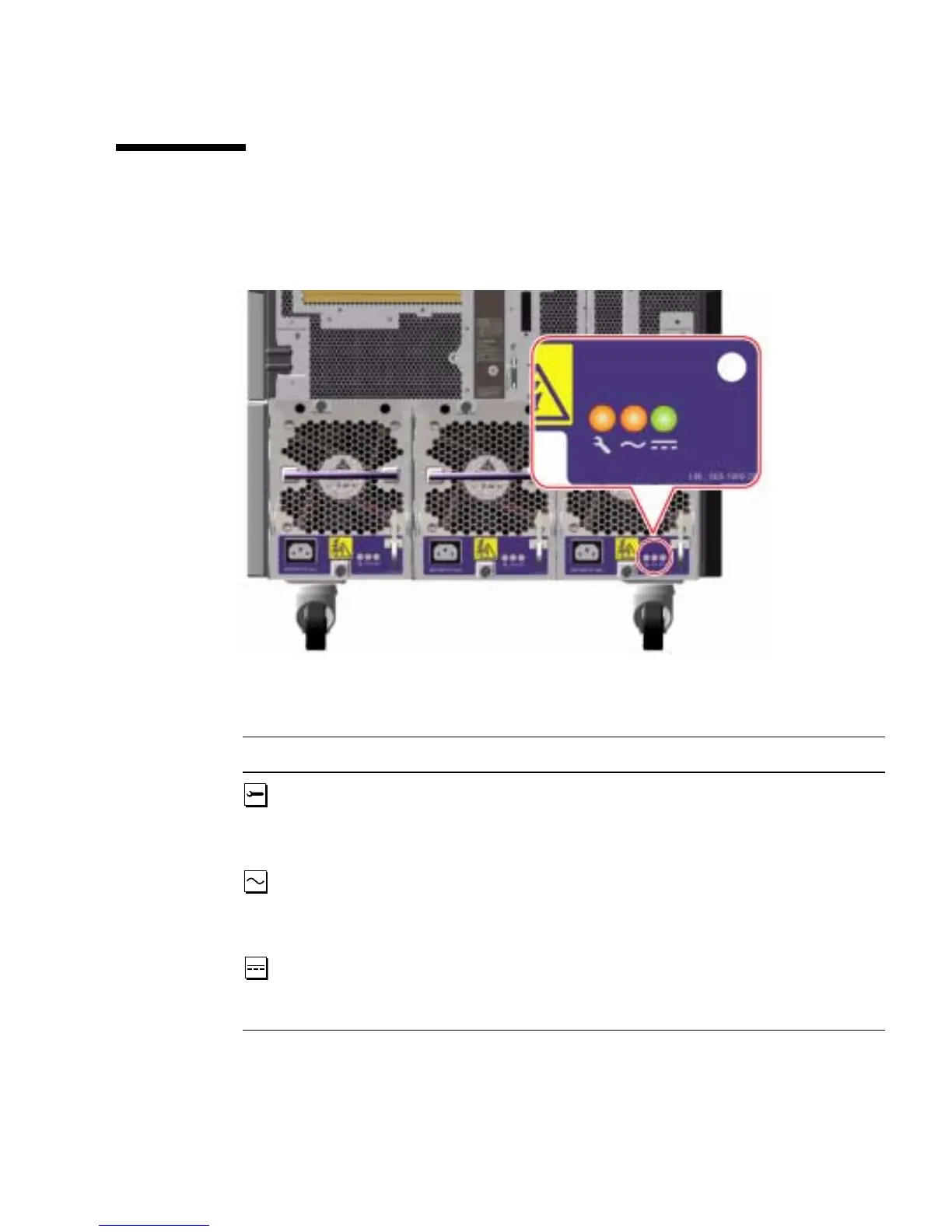

There are three LEDs located on the rear of each power supply, as shown below.
Icon Name LED Function
Fault Lights when the power supply encounters a fault.
AC-Present
Status
Lights when AC power input is present and within acceptable
operating limits.
DC Status Lights when all DC outputs are functional and within
acceptable operating limits.
