Appendix A Connector Pinouts 169
Reference for the System Controller
Ethernet Connector
The system controller Ethernet connector is an RJ-45 connector located on the system
controller board and can be accessed from the rear panel.

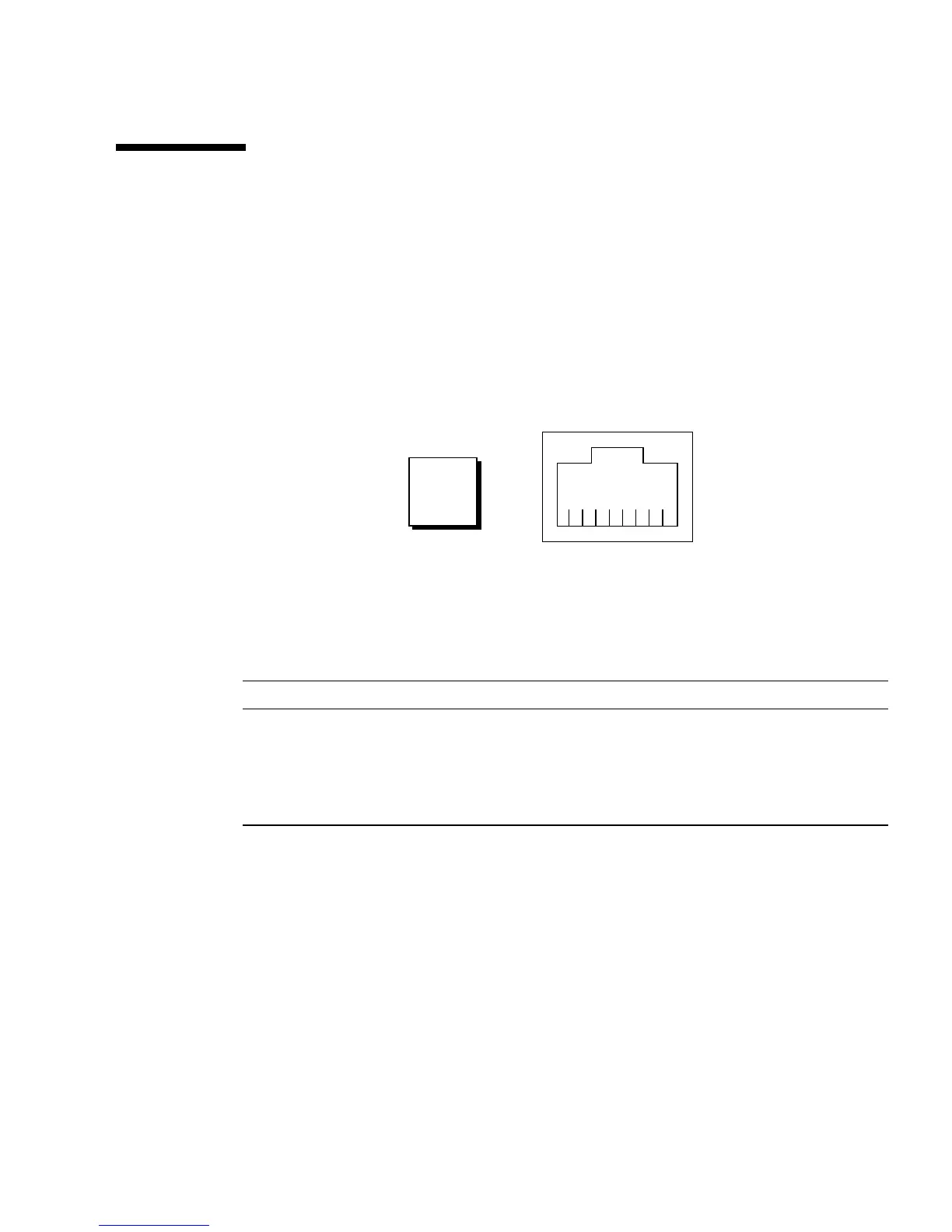

System Controller Ethernet Connector Diagram
System Controller Ethernet Connector Signals
Pin Signal Description Pin Signal Description
1 Transmit Data + 5 Common Mode Termination
2 Transmit Data - 6 Receive Data -
3 Receive Data + 7 Common Mode Termination
4 Common Mode Termination 8 Common Mode Termination
1
8
