4-24 FUEL SYSTEM
MANUAL STARTER SYSTEM

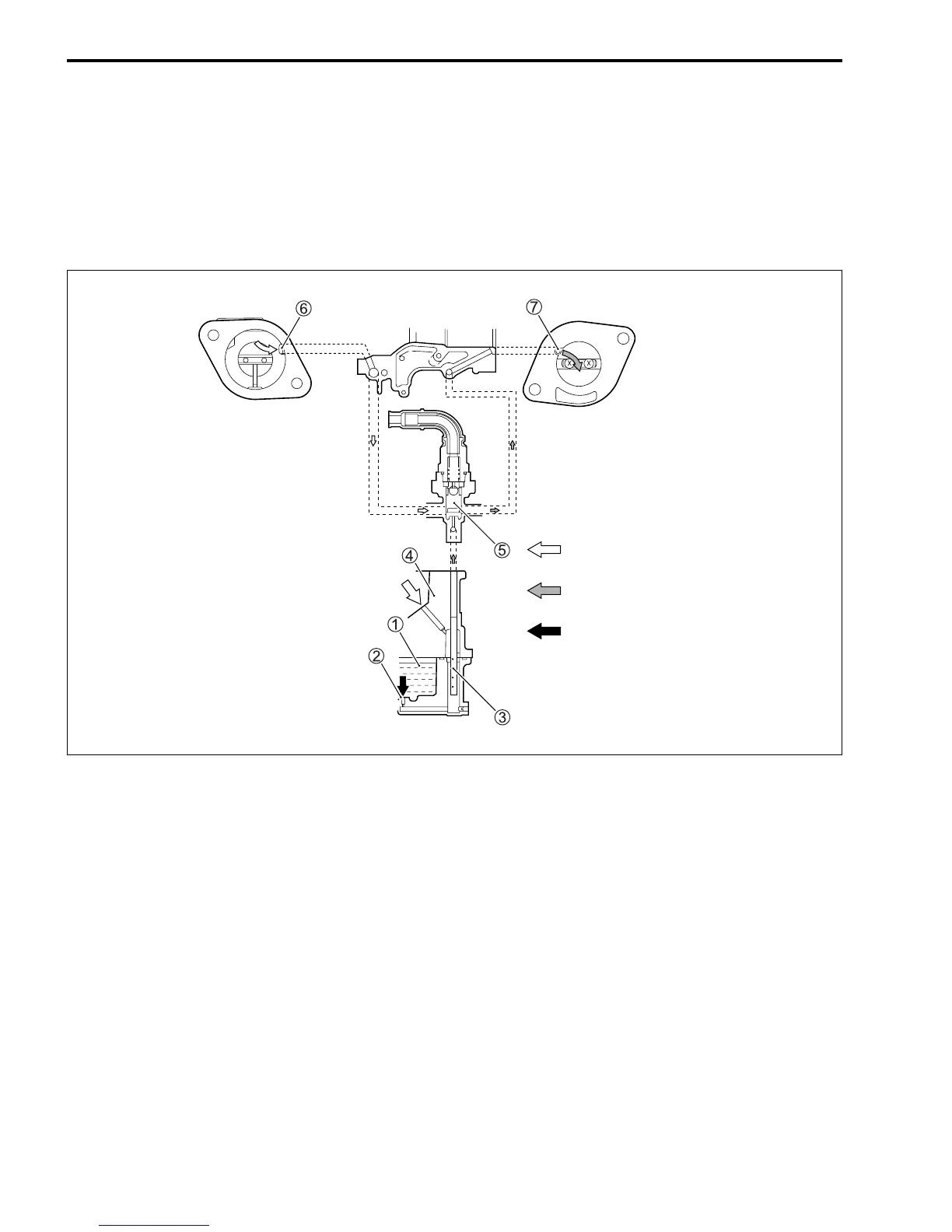

Pulling the starter knob, fuel is drawn into the starter circuit from the float chamber 1.
Starter jet 2 meters this fuel, which then flows into fuel pipe 3 and mixes with the air coming from the upper
part of float chamber 4. The mixture, rich in fuel content, reaches starter plunger 5 and mixes again with
the air coming through a passage extending from main bore 6.
The two successive mixings of fuel with air are such that proper fuel/air mixture for starting is produced
when the mixture is sprayed out through starter outlet port 7 into the main bore.
AIR
FUEL+AIR (MIXTURE)
FUEL
