WIRE/HOSE ROUTING 9-5

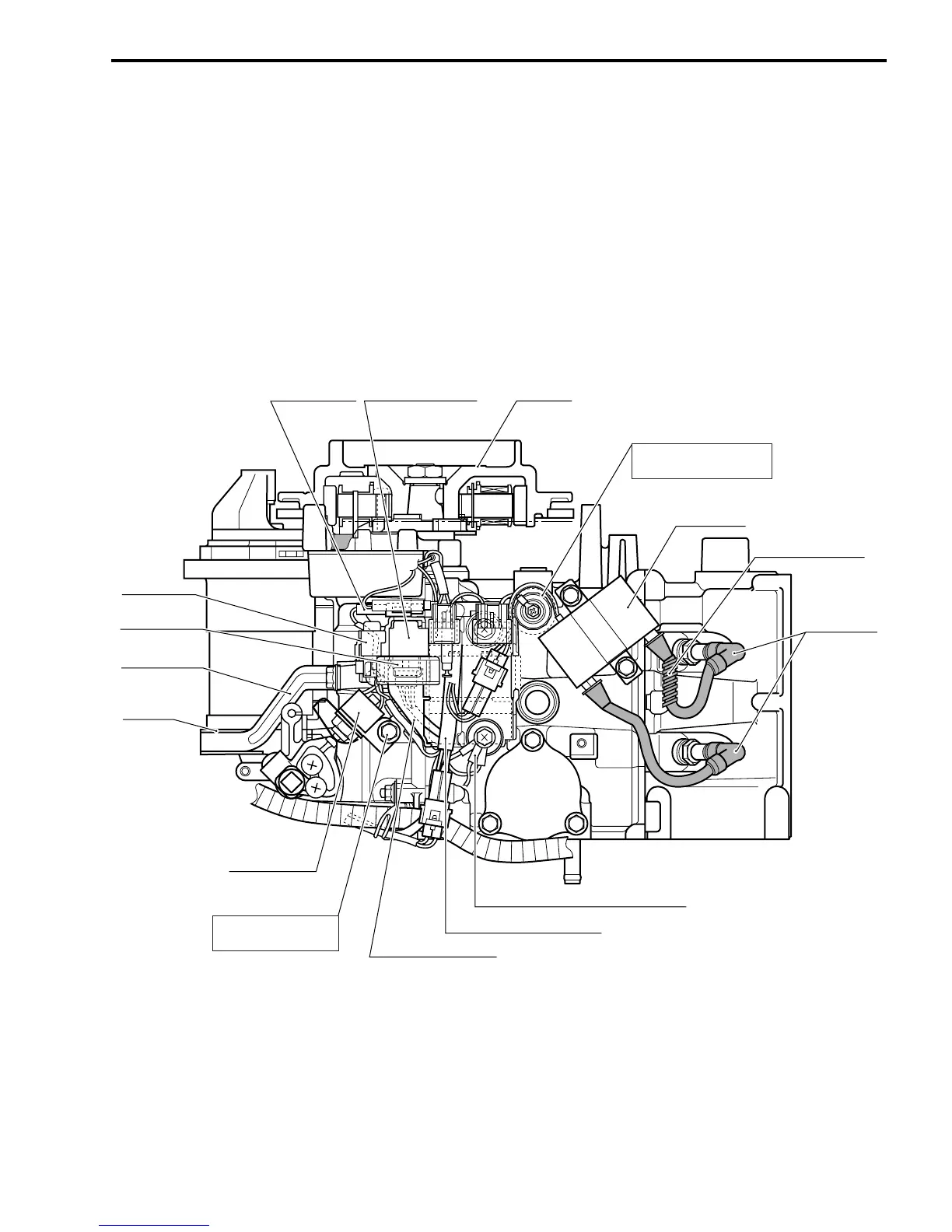

WIRE ROUTING
Cover the oil pressure
switch with cap.
Oil pressure switch
Neutral switch
connector
Starter motor relay Flywheel
Fuse/Case
CDI stopper
plate
Ignition coil
Electric parts holder
Wiring harness assembly
H·T cord protector
Spark plug
cap
Apply the THREAD
LOCK “1342”
Switch bracket Bolt
Neutral switch
Receptacle GND lead wire (option)
Starter motor
band
Damper
