Suzuki DF15 - Assembly & Installation

8-12 LOWER UNIT

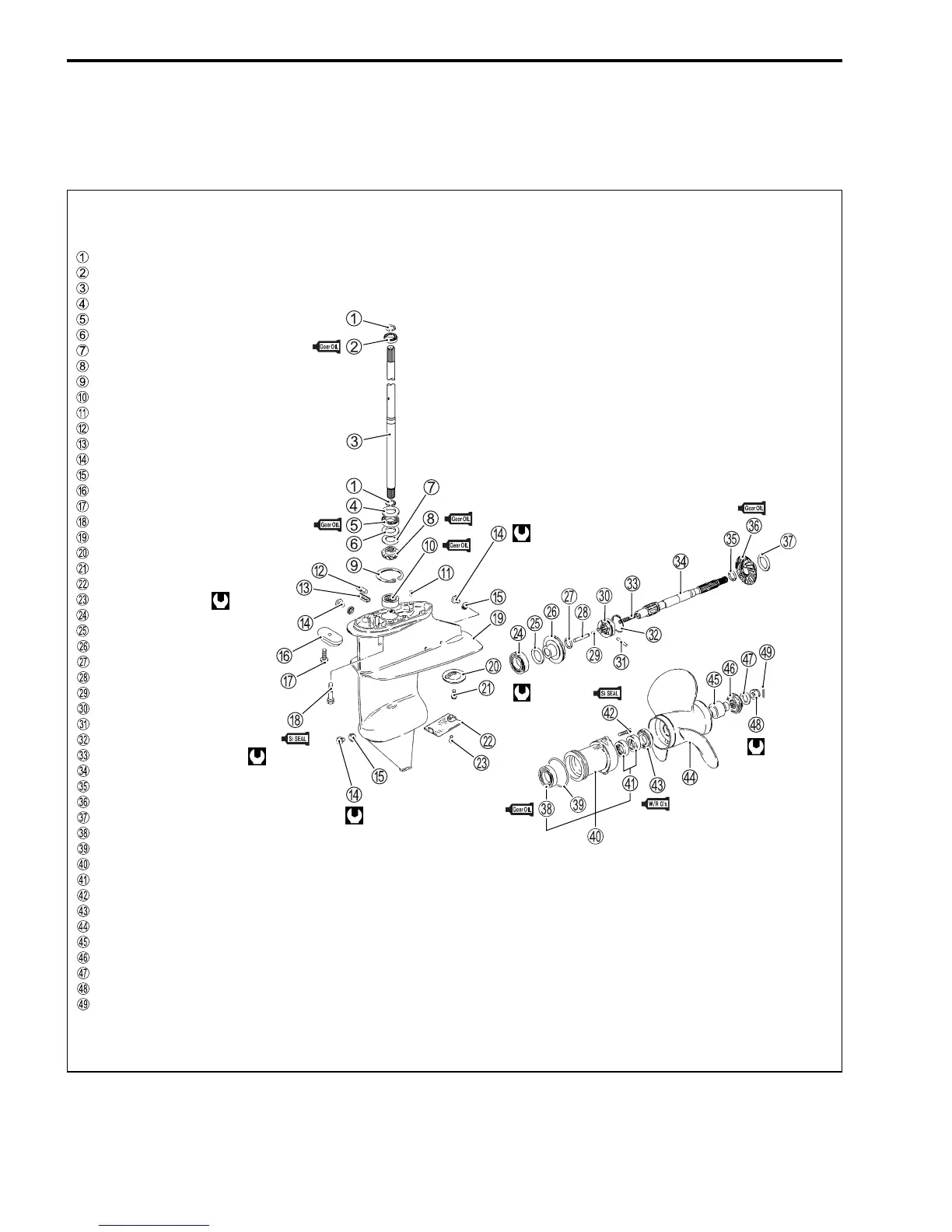

ASSEMBLY & INSTALLATION
Assembly & installation are reverse order of removal & disassembly with the special attention to the follow-
ing steps.
Circlip (2)
Bearing (1)
Driveshaft (1)
Washer (1)
Bearing (1)
Washer (1)
Shim (1)
Pinion gear (1)
Circlip (1)
Pinion bearing (2)
Dowel pin (2)
Exhaust seal rubber (1)
Exhaust seal core (1)
Plug (3)
Gasket (3)
Zinc (1)
Bolt (1)
Bolt (4)
Gearcase (1)
Zinc (1)
Bolt (1)
Water filter (1)
Screw (1)
Bearing (1)
Shim (1)
Forward gear (1)
Thrust washer (1)
Push rod (1)
Push pin (1)
Clutch dog shifter (1)
Dog pin (1)
Dog spring (1)
Return spring (1)
Propeller shaft (1)
Washer (1)
Reverse gear (1)
Shim (1)
Bearing (1)
O-ring (1)
Propeller shaft bearing housing (1)
Oil seal (2)
Bolt (2)
Propeller bush stopper (1)
Propeller (1)
Propeller bush (1)
Spacer (1)
Washer (1)
Nut (1)
Cotter pin (1)
13 N·m
1.3 kg-m
9.5 lb-ft
13 N·m
1.3 kg-m
9.5 lb-ft
13 N·m
1.3 kg-m
9.5 lb-ft
18 N·m
1.8 kg-m
13.0 lb-ft
23 N·m
2.3 kg-m
16.5 lb-ft
8 N·m
0.8 kg-m
6.0 lb-ft
( )
( )
( )
( )
( )
( )
