Suzuki DF15 - Reassembly

7-10 MID UNIT

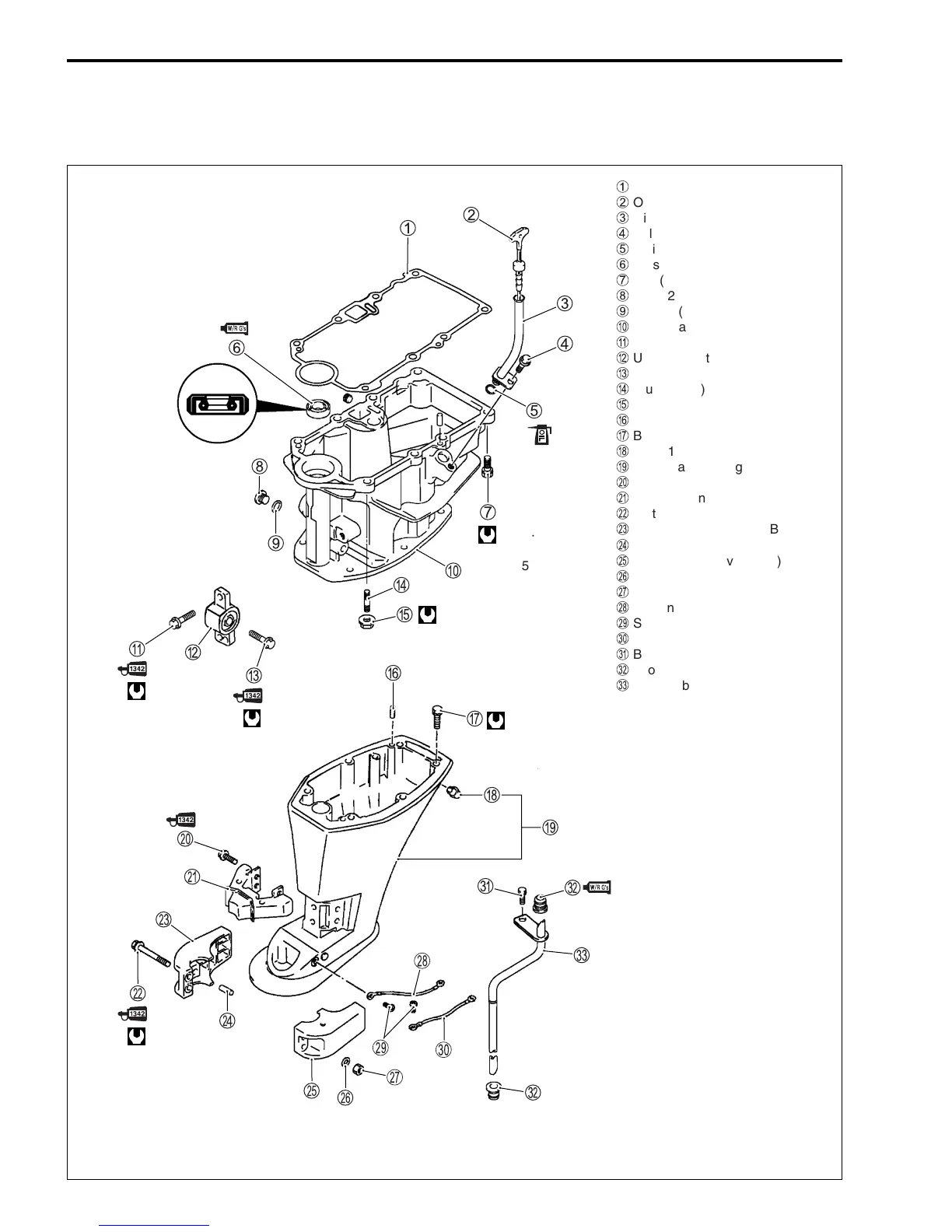

REASSEMBLY
Reassembly is reverse order of removal with the special attention to the following steps.
1 Gasket (1)
2 Oil level gauge (1)
3 Oil level gauge guide (1)
4 Bolt (1)
5 O-ring (1)
6 Oil seal (1)
7 Bolt (6)
8 Plug (2)
9 Gasket (2)
0 Oil pan assembly (1)
A Bolt (4)
B Upper mount (2)
C Bolt (2)
D Stud bolt (2)
E Nut (2)
F Dowel pin (2)
G Bolt (6)
H Pipe (1)
I Driveshaft housing (1)
J Bolt (4)
K Lower mount (1)
L Bolt (2)
M Lower mount cover (STBD) (1)
N Pin (2)
O Lower mount cover (Port) (1)
P Washer (2)
Q Nut (2)
R Bonding wire (1)
S Screw (2)
T Bonding wire (1)
U Bolt (1)
V Grommet (2)
W Water tube (1)
23 N·m
2.3 kg-m
16.5 lb-ft
( )
23 N·m
2.3 kg-m
16.5 lb-ft
( )
23 N·m
2.3 kg-m
16.5 lb-ft
( )
23 N·m
2.3 kg-m
16.5 lb-ft
( )
23 N·m
2.3 kg-m
16.5 lb-ft
( )
23 N·m
2.3 kg-m
16.5 lb-ft
( )
