IGNITION AND ELECTRICAL 3-29

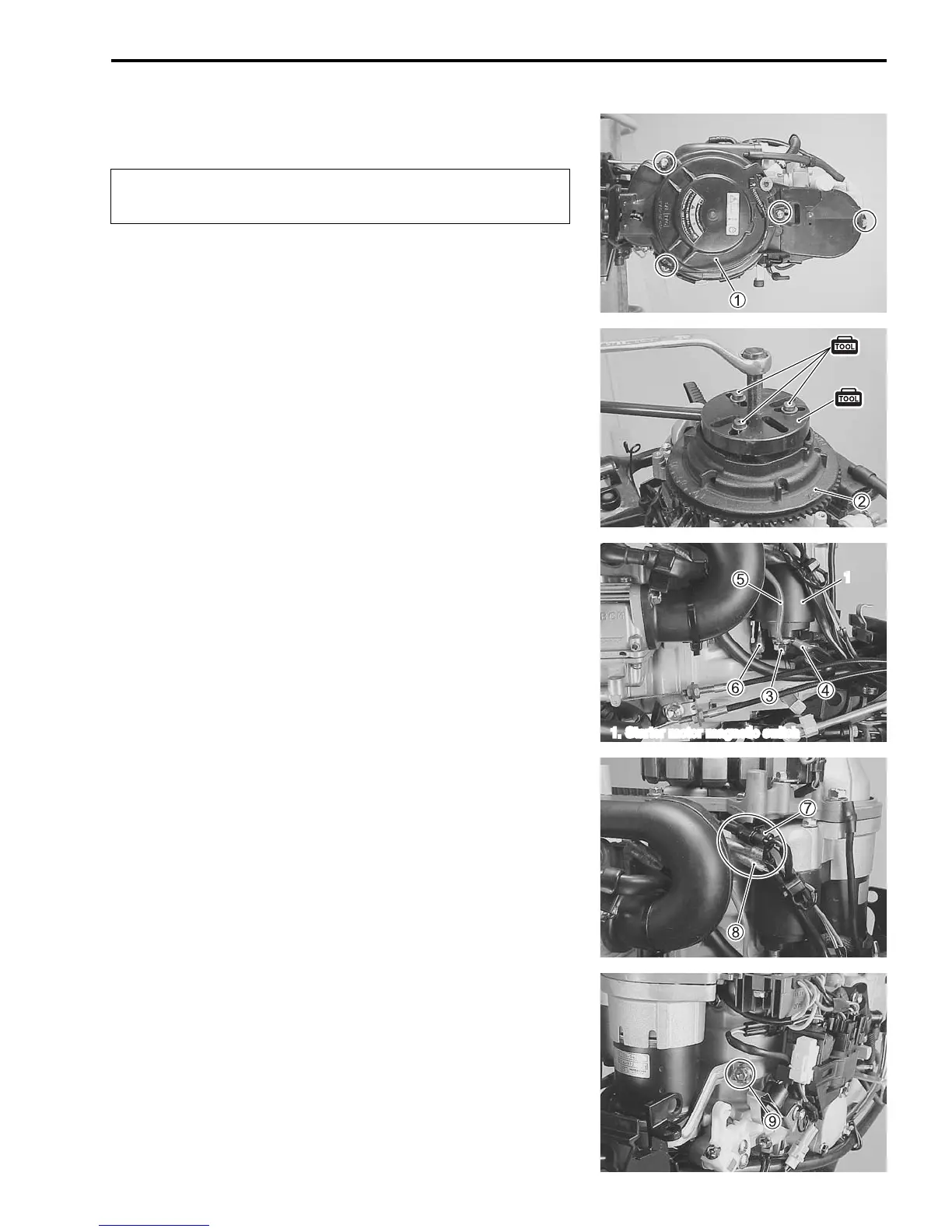

STARTER MOTOR
REMOVAL
1. Remove the side covers. (See page 7-2.)
Remove bolts and recoil starter 1. (See page 5-2.)
2. Remove the flywheel 2. (See page 3-9.)
09930-48720: Flywheel holder
09930-49210: Flywheel holder attachment
09930-39411: Flywheel remover
09930-39210: Flywheel remover attachment bolt
3. Remove nut 3 and positive + battery cable 4, positive +
battery charge cable 5 from the magnetic switch “B” termi-
nal of starter motor.
Disconnect the red lead wire 6 from starter motor magnetic
switch “S” terminal.
4. Disconnect engine stop switch lead wire connector 7.
Disconnect starter switch lead wire connector 8.
(Tiller handle model)
5. Remove the PORT side bolt 9 securing starter motor band.
Prior to removing starter motor:
• Disconnect battery cables from battery.
1
1. Starter motor magnetic switch
