3-30 IGNITION AND ELECTRICAL

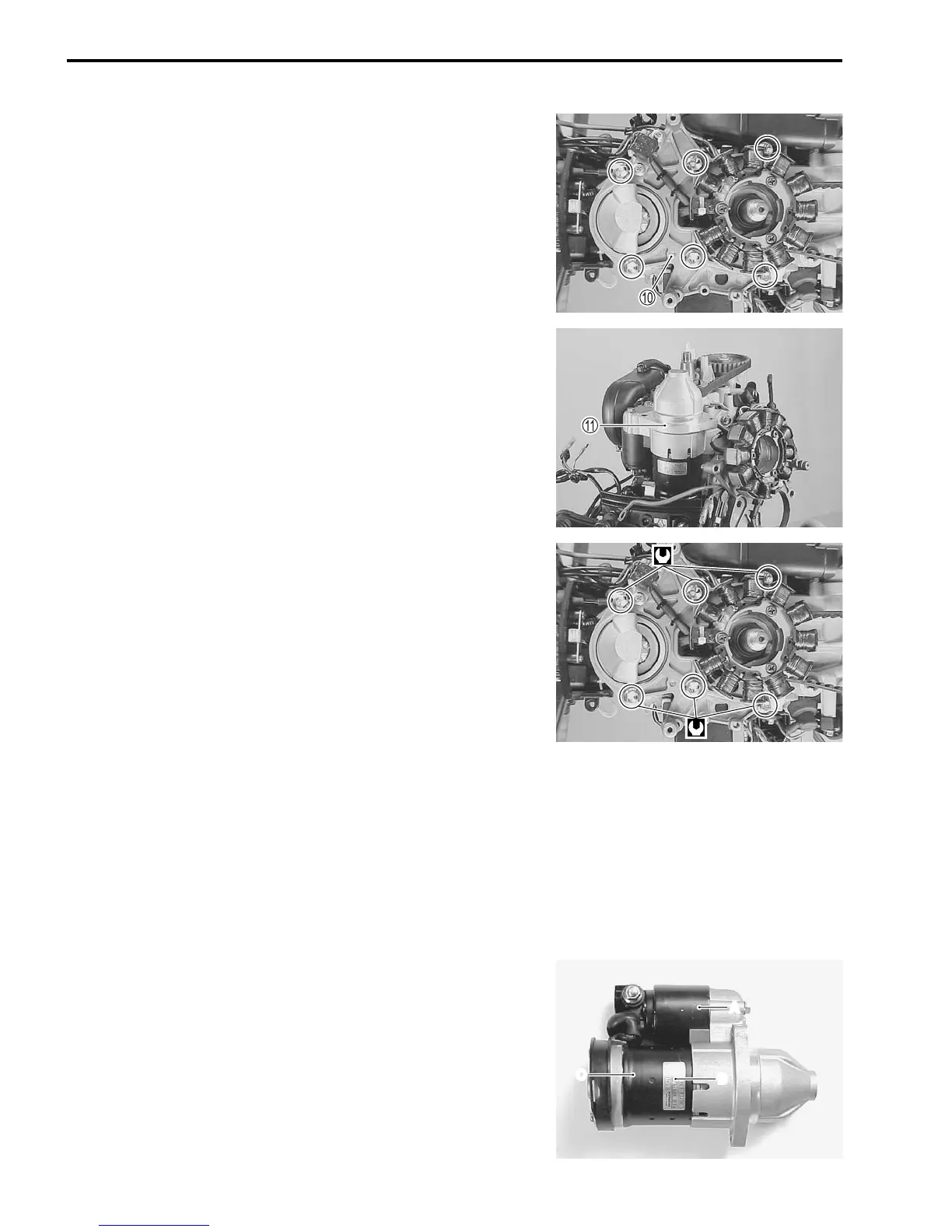

6. Remove the six (6) bolts securing stator base 0.
7. Lift up stator base, then remove starter motor A.
INSTALLATION
Installation is reverse order of removal with special attention to
the following steps.
• Install starter motor and stator base, then tighten stator base
mounting bolts securely.
Stator base mounting bolt:
8 mm 23 N·m (2.3 kg-m, 16.5 lb-ft)
6 mm 10 N·m (1.0 kg-m, 7.0 lb-ft)
• Check wire routing. (See page 9-2 to 9-9.)
DISASSEMBLY
When overhauling starting motor, it is recommended that com-
ponent parts be cleaned thoroughly.
However, the yoke assembly, armature coil, over-running clutch
assembly, magnetic switch assembly, and rubber or plastic
parts should not be washed in a degreasing tank or with a
grease dissolving solvent. These parts should be cleaned with
compressed air or wiped with clean cloth.
NOTE:
Before disassembling starting motor, be sure to put match
marks at three locations (A, B and C) as shown in figure at right
to avoid any possible component alignment mistakes.
A
B
C
To Next Page
