Suzuki DF15 - Reassembly

5-6 RECOIL STARTER
REASSEMBLY

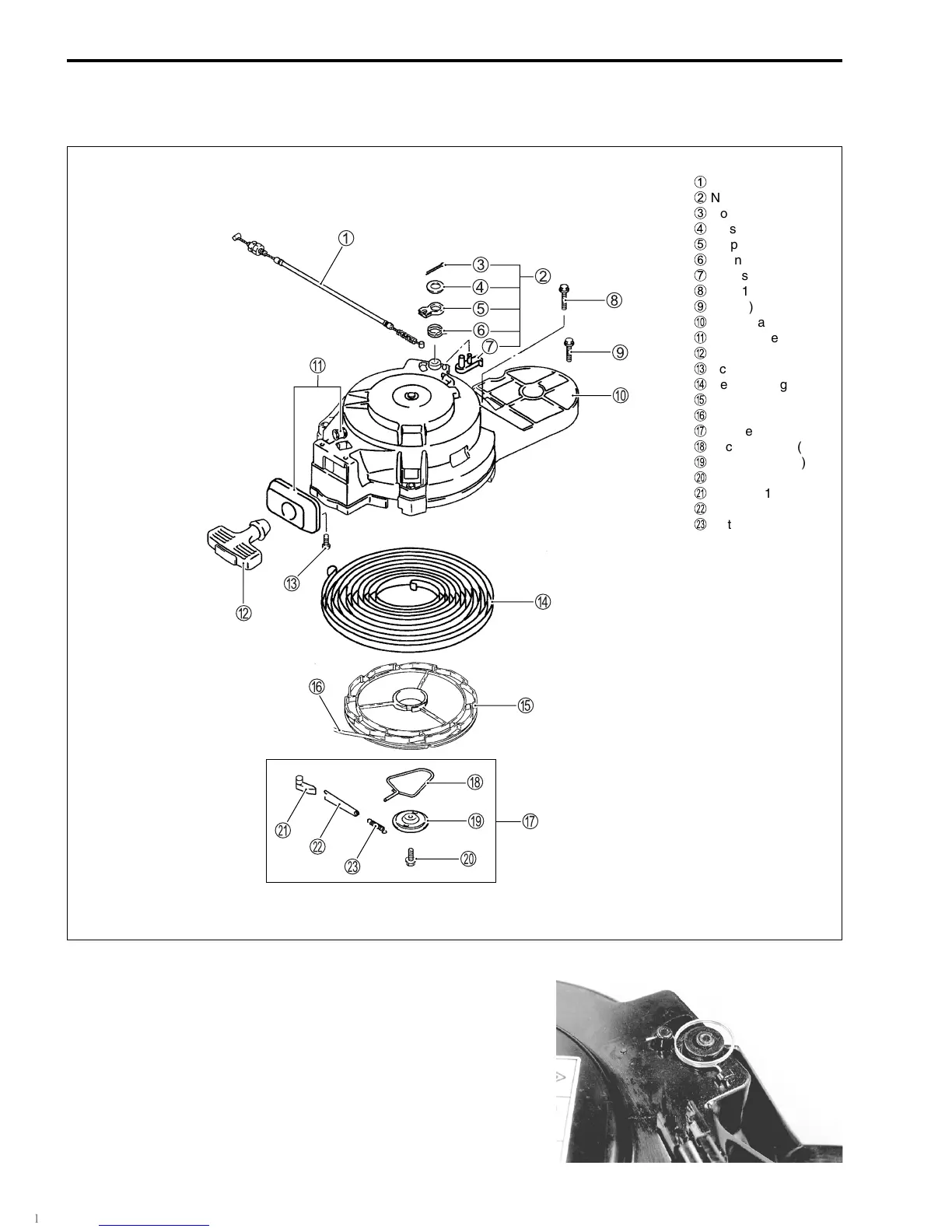

Reassembly is in the reverse order of disassembly with special
attention to the following reassembling steps.
• Install the stopper spring as shown figure.
1 NSI cable (1)
2 NSI set
3 Cotter pin (1)
4 Washer (1)
5 Stopper arm (1)
6 Spring (1)
7 Reel stopper (1)
8 Bolt (1)
9 Bolt (3)
0 Recoil case (1)
A Rope guide (1)
B Grip (1)
C Screw (1)
D Recoil spring (1)
E Reel (1)
F Rope (1)
G Ratchet set
H Friction spring (1)
I Friction plate (1)
J Bolt (1)
K Ratchet (1)
L Ratchet guide (1)
M Return spring (1)
