8-6 LOWER UNIT
PINION BEARING
Removal/installation is in following procedure.

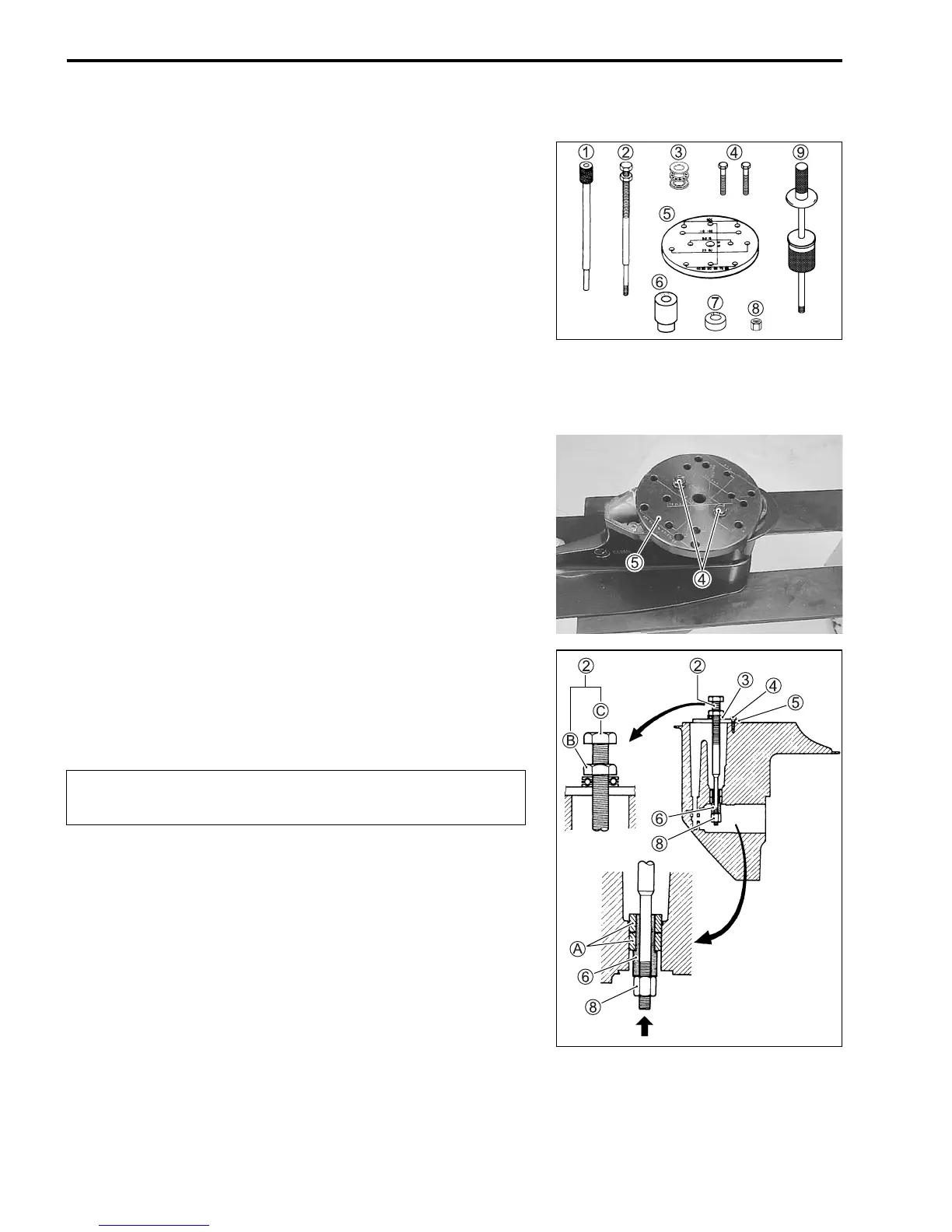

Removal & Installation tools
09951-59910: Shaft (Installation) 1
09951-49910: Shaft (Removal) 2
09951-69910: Bearing 3
01500-08403: Bolt 4
09951-39914: Plate 5
09951-19311: Attachment 6
09951-79311: Spacer (Attachment) 7
09951-29910: Nut 8
09930-30104: Sliding hammer 9
REMOVAL
1. Set the plate 5 on the gearcase with two bolts 4.
NOTE:
Using the two water pump bolt holes.
2. Set the shaft (removal) 2, bearing 3, attachment 6 and
nut 8 as shown.
3. To push the pinion bearings A out of gearcase, turn the
lower nut B clockwise while holding bolt C tightly.
Do not re-use the pinion bearing once removed.
Always use a new pinion bearing.
