Suzuki DF15 - Engine Side Cover and Tiller Handle Service

7-2 MID UNIT

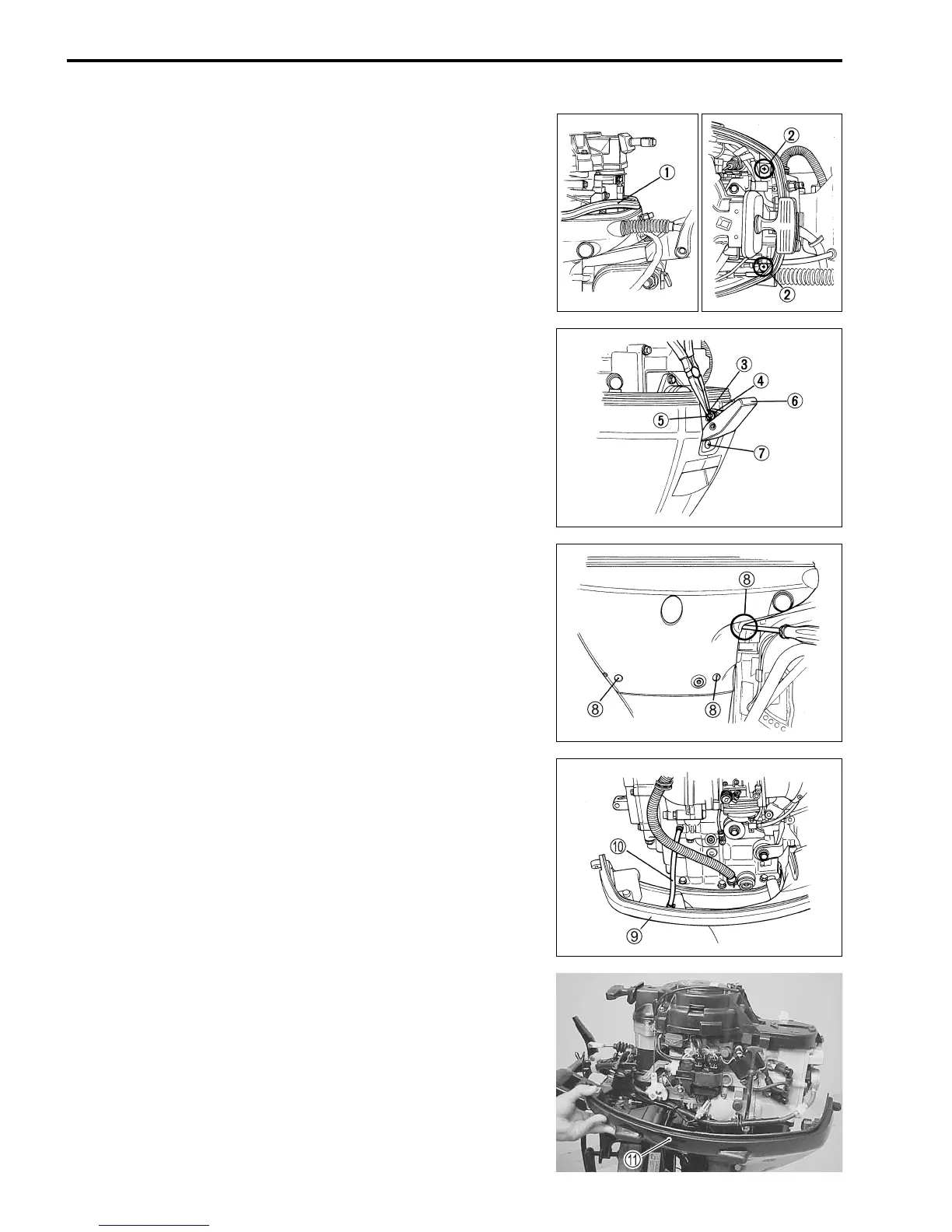

ENGINE SIDE COVER
REMOVAL
1. Remove the side cover rubber 1.
2. Remove the two screws 2.
3. Remove the snap pin 3, washer 4, pin 5 and fastener 6.
4. Remove the screw 7.
5. Remove three screws 8 and STBD side cover 9.
Disconnect water hose 0.
6. Remove PORT side cover A.
