11-14 DF9.9/15 “K7” (’07) MODEL

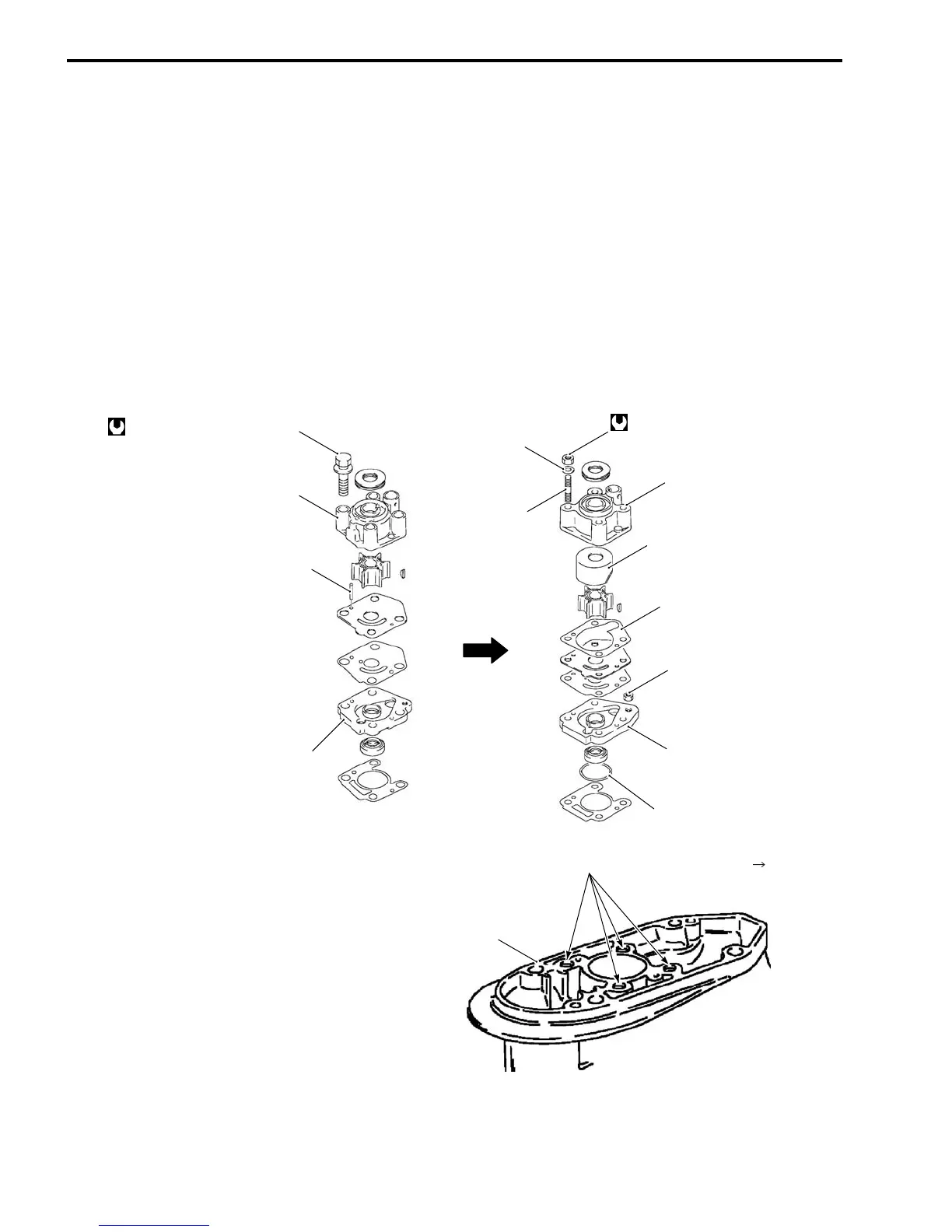

WATER PUMP AND GEARCASE
The water pump case and related parts have been changed as follows.
• The water pump case has been changed in material from stainless steel to resin.
• The water inlet housing has been changed in material from aluminum alloy to resin.
• The water pump case securing 8 mm bolts have been changed to 6 mm stud bolts with nuts and washers.
In accordance with this change, diameter of tapped holes on the gearcase have been changed from 8 mm
to 6 mm. Tightening torque has been changed from 18 N·m to 8 N·m.
• The water pump case sleeve has been added.
• A water pump case gasket has been added between pump case and pump case under panel.
• An O-ring has been added on the water inlet housing.
• The locating pins have been eliminated.
18 N
.
m (1.8 kg-m, 13.0 lb-ft)
Bolt (8 mm)
Water pump case
(Material: Stainless steel)
Pin
Water inlet housing
(Material: Aluminum alloy)
Washer
Stud bolt
8 N
.
m (0.8 kg-m, 6.0 lb-ft)
Nut (6 mm)
Water pump case
(Material: Resin)
Water pump sleeve added
Gasket added
Water inlet nut added
Water inlet housing
(Material: Resin)
O-Ring added
Gearcase
Tapped hole diameter 8 mm 6 mm
To Next Page
